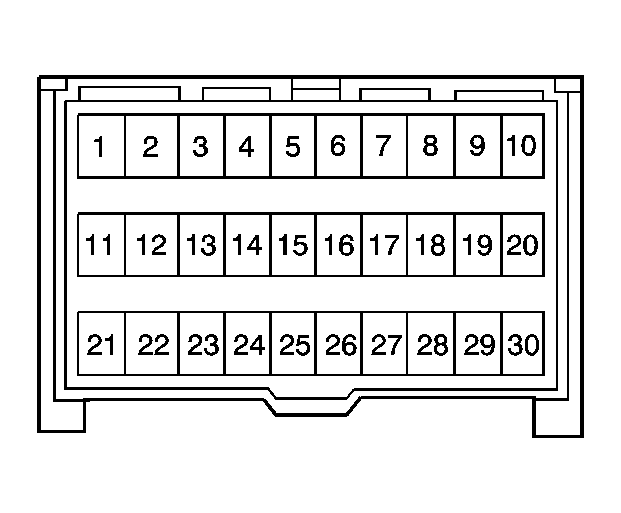

SIR Sensing and Diagnostic Module (SDM) Connector End View C1
SIR Sensing and Diagnostic Module (SDM) Connector End View C1
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | YE/GY | Passenger Side IP Module High Signal |
| 2 | YE/PK | Passenger Side IP Module Low Signal |
| 3 | YE/GN | Passenger Side IP Module Low Signal |
| 4 | YE/RD | Passenger Side IP Module High Signal |
| 5 | YE/BK | Driver Side IP Module High Signal |
| 6 | YE | Driver Side IP Module Low Signal |
| 7 | YE/OG | Driver Side IP Module High Signal |
| 8 | YE/PU | Driver Side IP Module Low Signal |
| 9 | - | Not Used |
| 10 | - | Not Used |
| 11 | - | Not Used |
| 12 | - | Not Used |
| 13 | BU/WH | Passenger Presence Sensor Signal |
| 14 | BK/YE | Airbag Indicator Signal |
| 15 | PK/BK | Diagnostic Signal Request |
| 16 | BU/RB | Serial Data Line |
| 17 | PK | Passenger Seat Belt/Air Bag Indicator ON/OFF Signal |
| 18 | - | Not Used |
| 19 | - | Not Used |
| 20 | - | Not Used |
| 21 | BK/OG | Ignition Positive Voltage |
| 22 | YE | Fuel Pump Cutoff |
| 23 | GY | Passenger Seat Belt/Air Bag Indicator ON/OFF Signal |
| 24 | BU | OnStar Data Signal |
| 25 | WH/BK | Ground |
| 26 | WH/BK | Ground |
| 27 | BN/WH | Passenger Right Front Discriminating Low Sensor Signal |
| 28 | BN | Passenger Left Front Discriminating Low Sensor Signal |
| 29 | BK/WH | Passenger Right Front Discriminating High Sensor Signal |
| 30 | 28 | Passenger Left Front Discriminating HighSensor Signal |
