Power Steering System Schematics

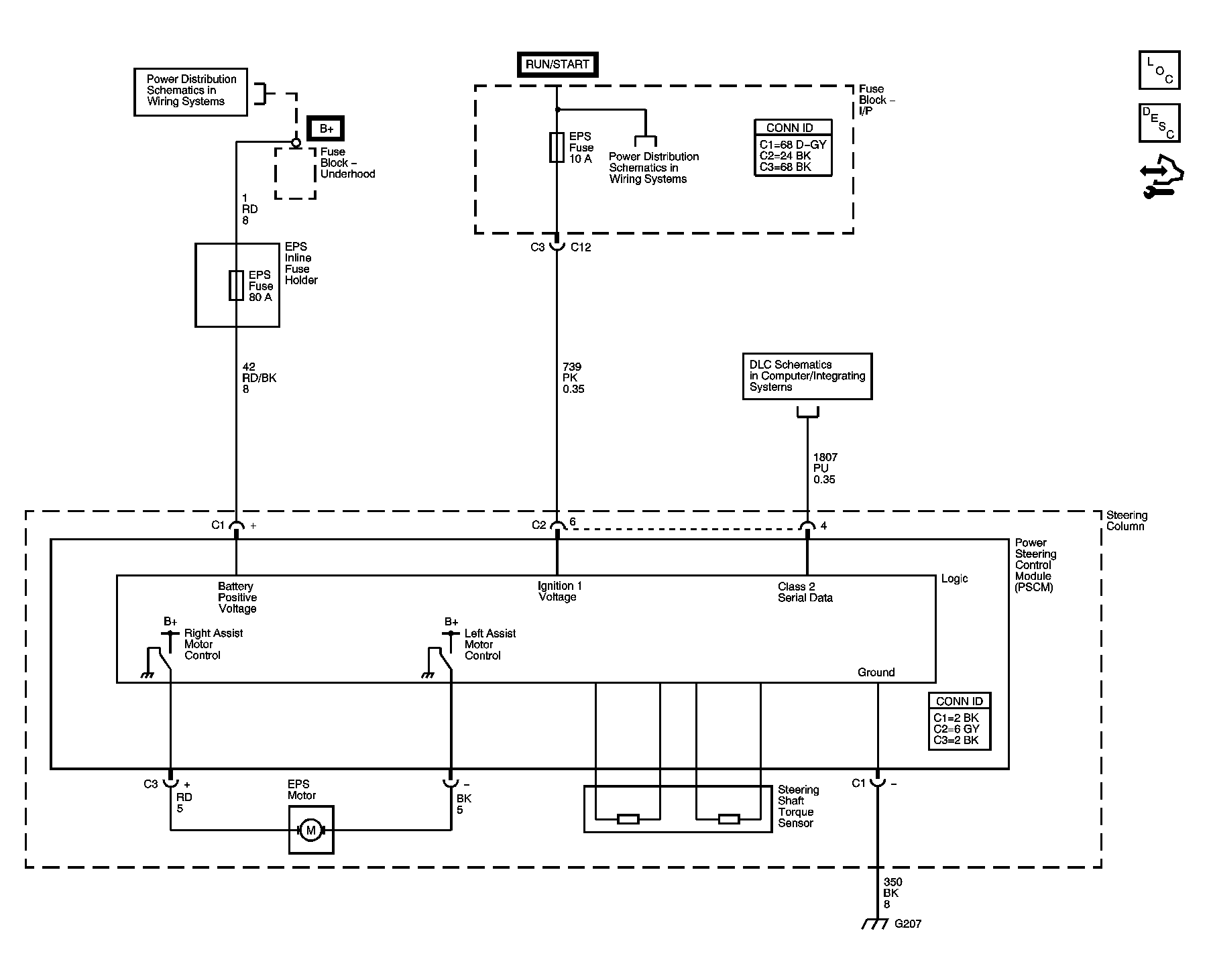

Fig 1: Power Steering System Schematics

GM1371787

Courtesy of GENERAL MOTORS CORP.
