Outside Mirror Schematics
Outside Mirror Schematics

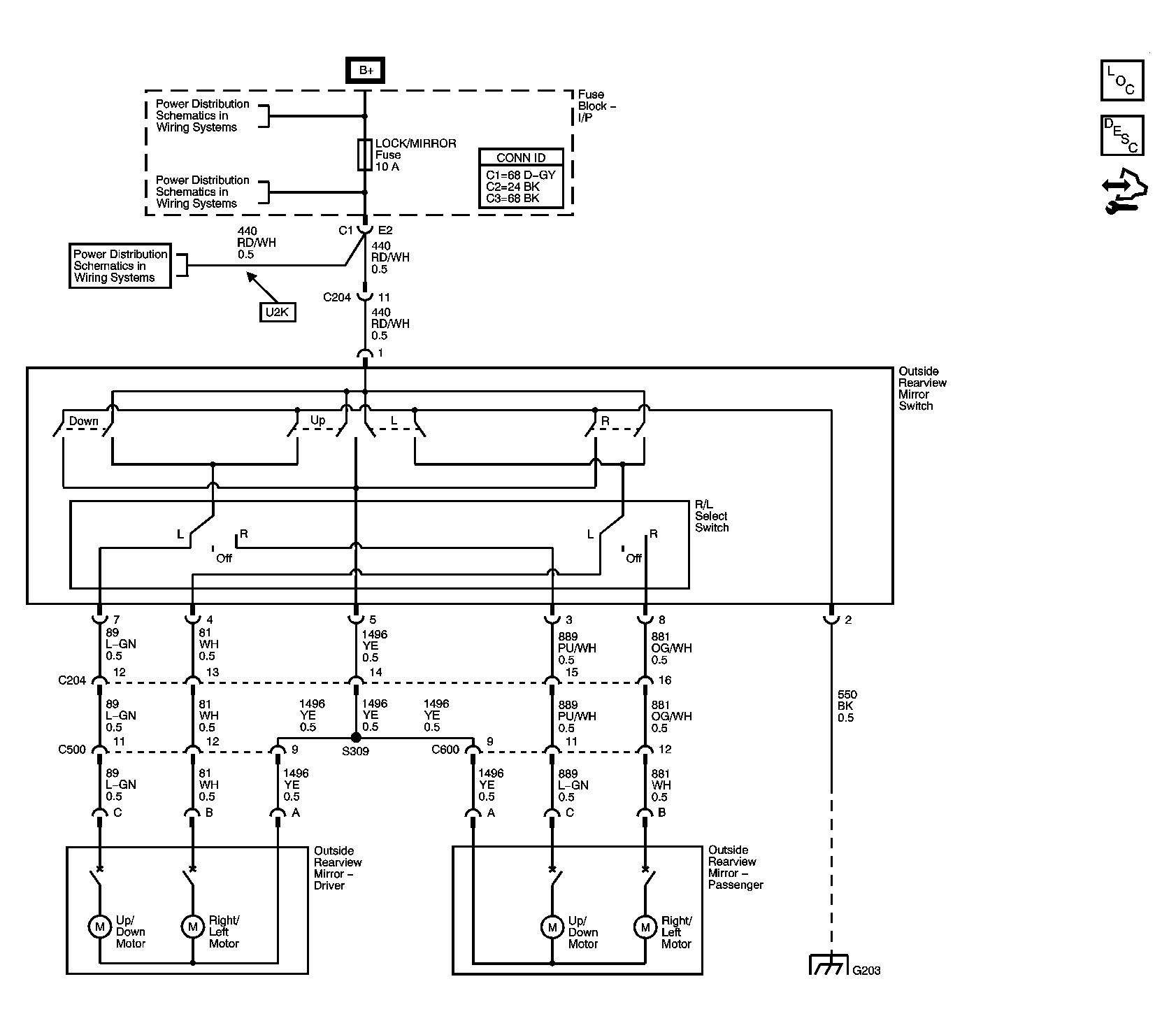

Fig 1: Outside Mirror Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
