Door Lock/Indicator Schematics

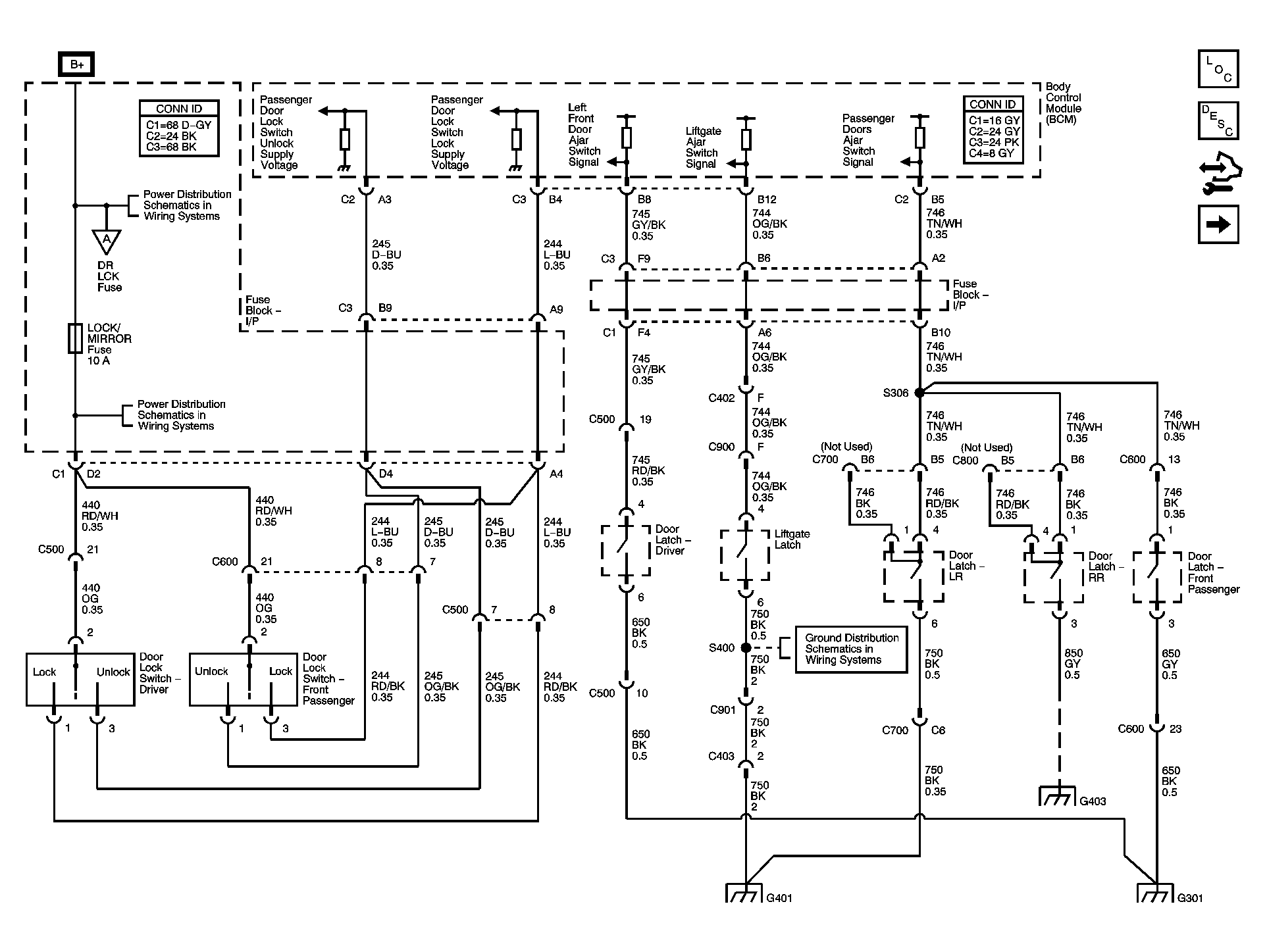

Fig 1: Lock Switches, Ajar Signals

GM1380913

Courtesy of GENERAL MOTORS CORP.

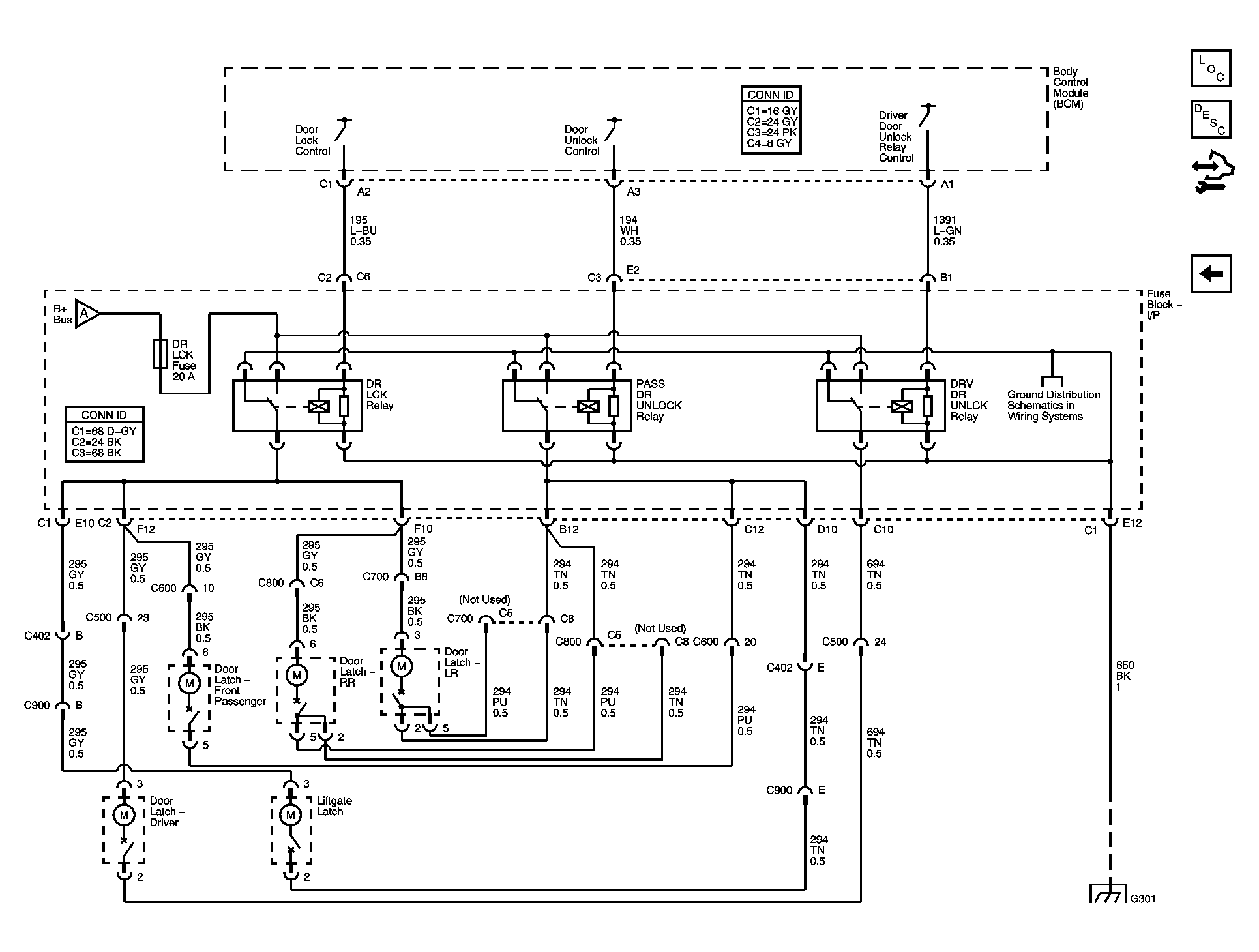

Fig 2: Door Latch Controls

GM1380914

Courtesy of GENERAL MOTORS CORP.
