Removal Procedure

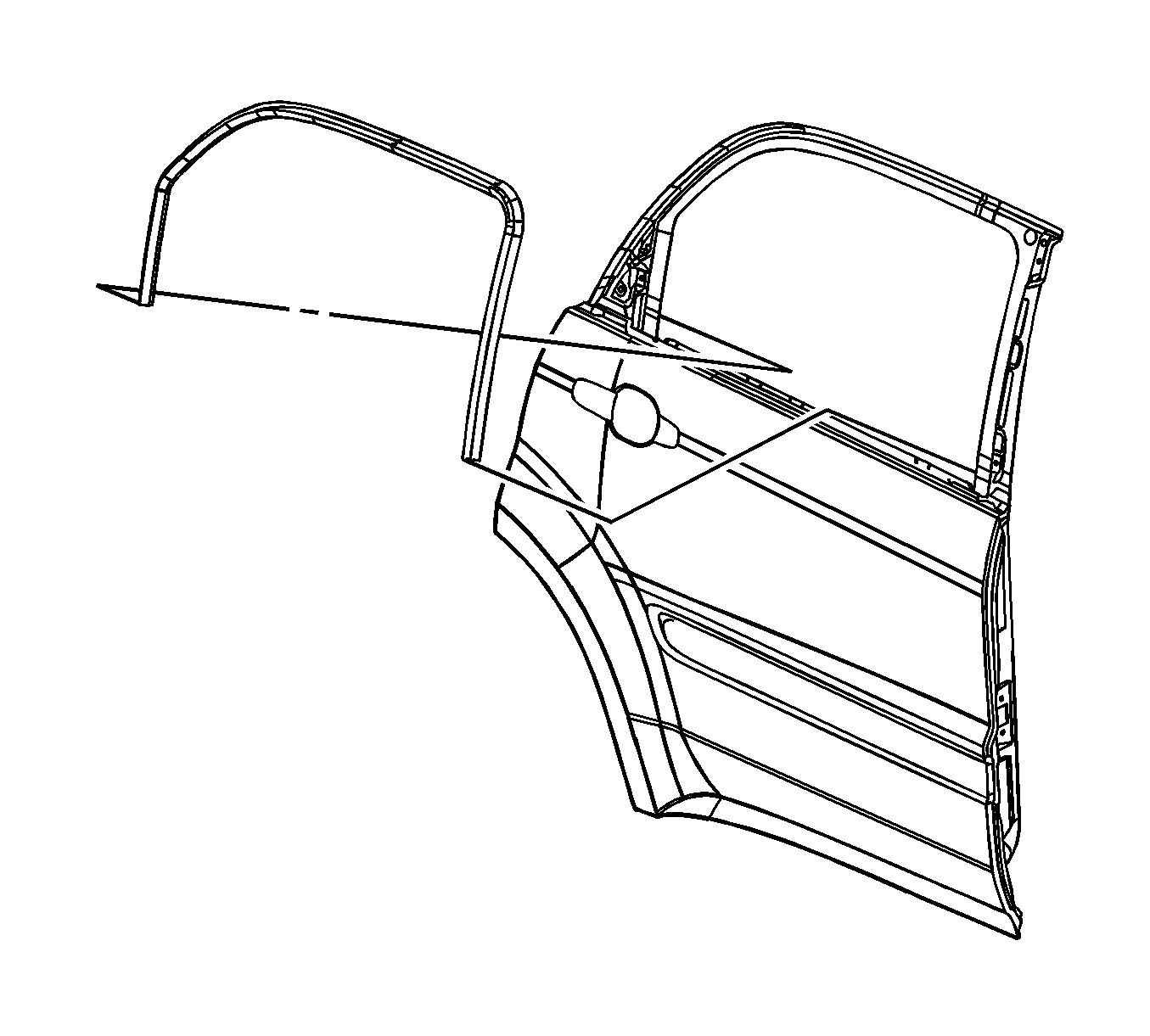

    Fig 1: View Of Rear Window Weatherstrip Run Channel Assembly
    GM1378596Courtesy of GENERAL MOTORS CORP.
  1. Lower the rear door window.
  2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the inner belt seal. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  4. Starting at one end, carefully pull the window weatherstrip run channel assembly from the door frame.
