Body Control System Wiring Schematics

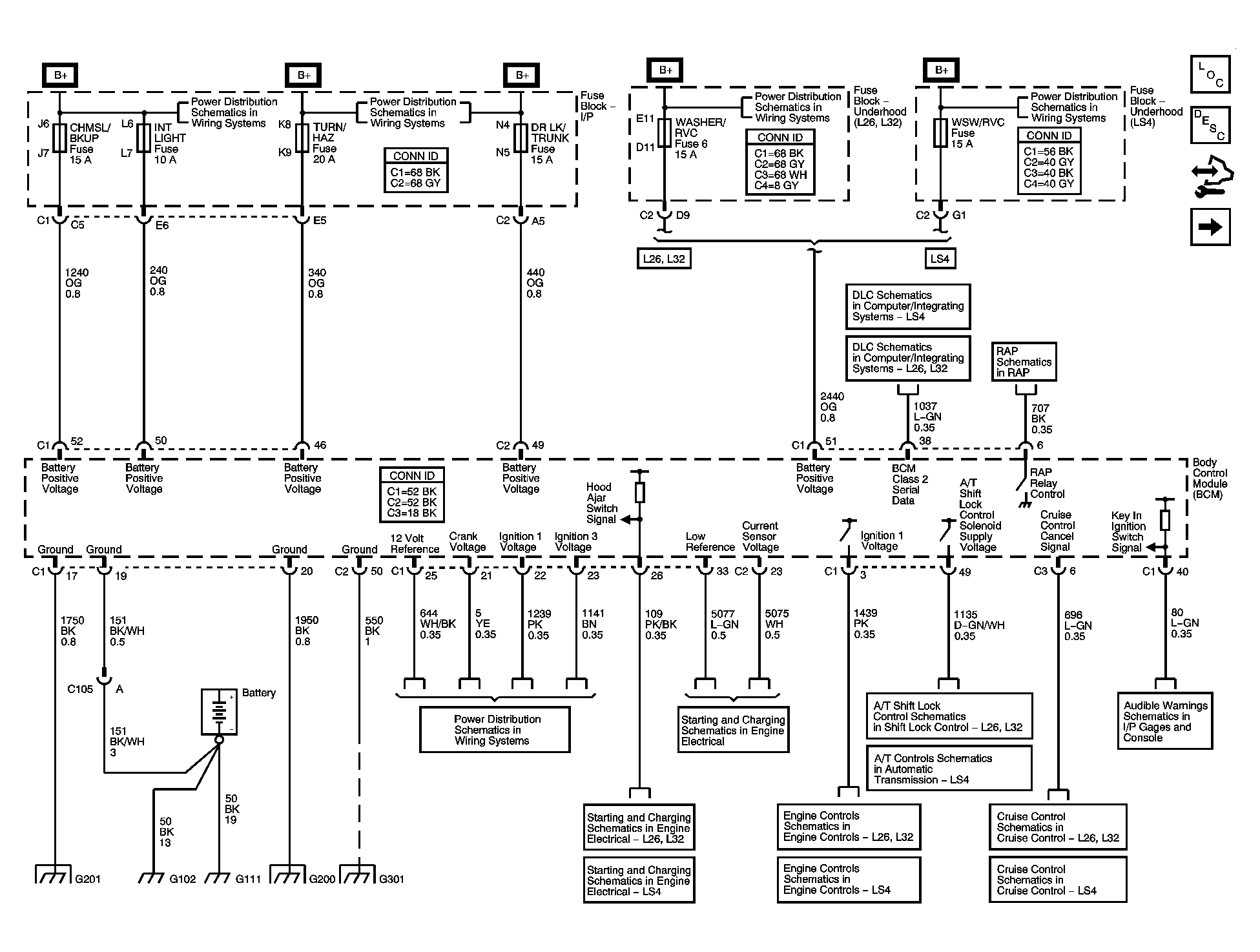

Fig 1: Power, Ground and References

Courtesy of GENERAL MOTORS CORP.

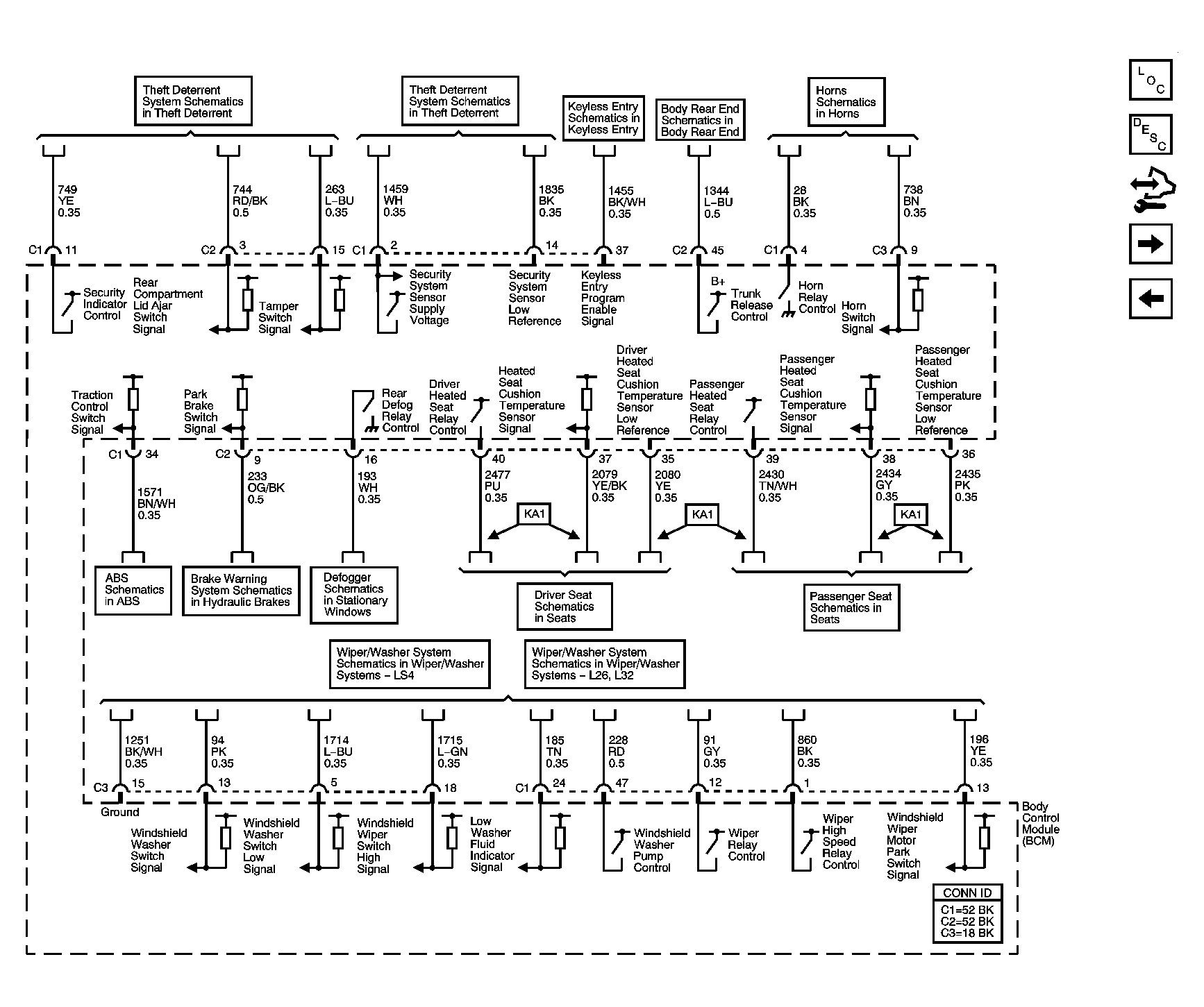

Fig 2: Theft Deterrent, Keyless Entry, Body Rear End, Horns, ABS, Brake Warning, Defogger, Heated Seats and Wiper/Washer System References

Courtesy of GENERAL MOTORS CORP.

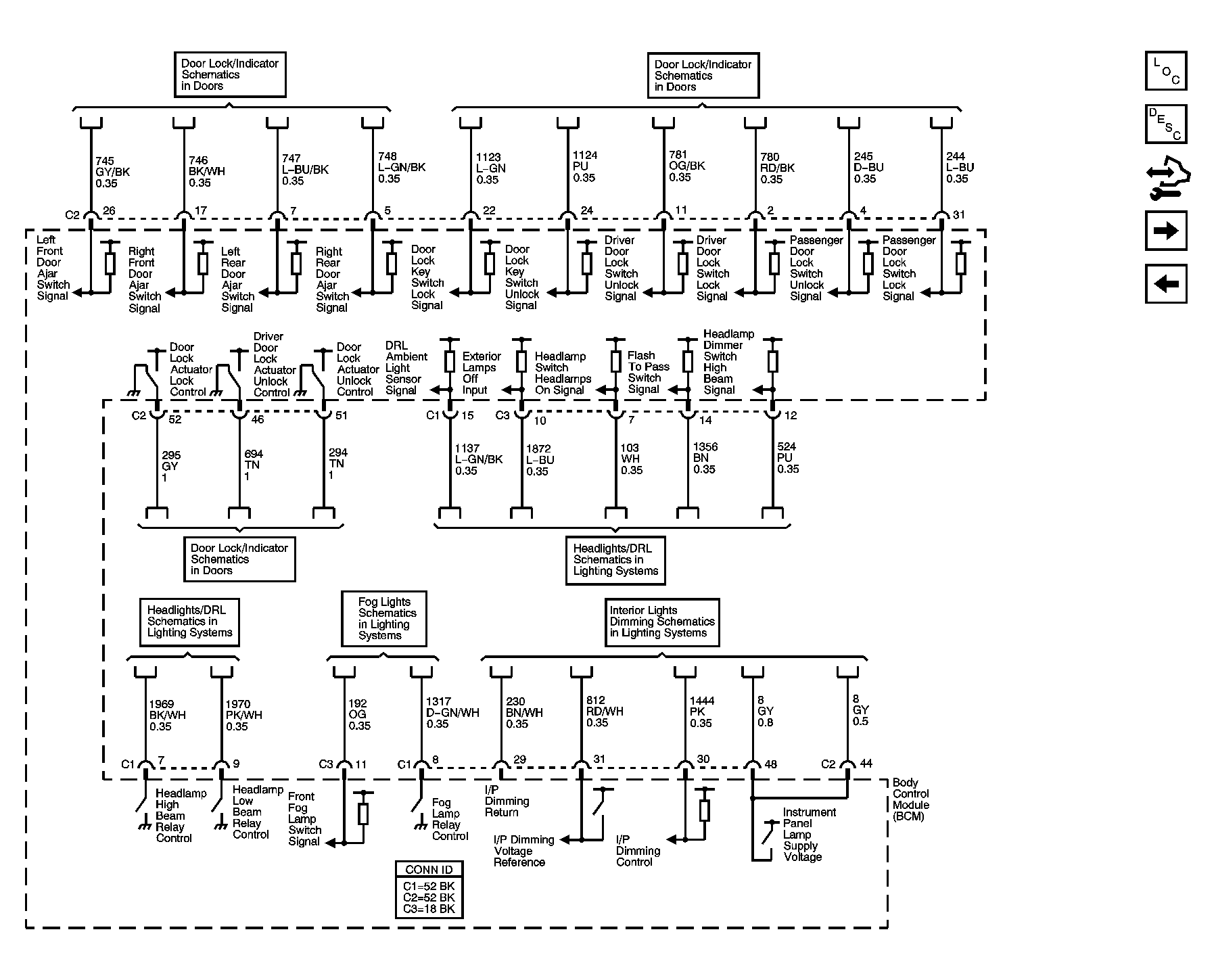

Fig 3: Door Lock/Indicator and Lighting Systems References 1 of 2

Courtesy of GENERAL MOTORS CORP.

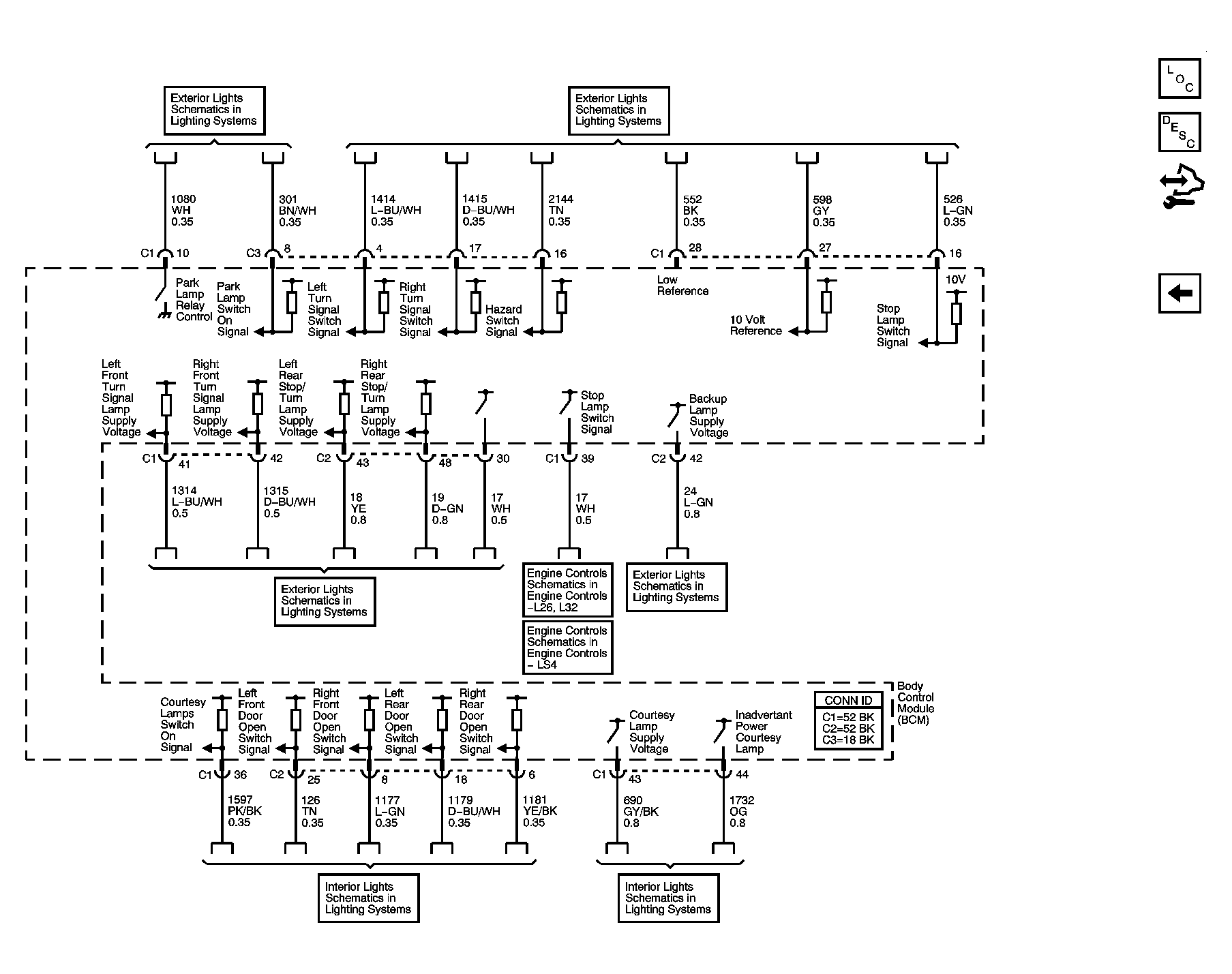

Fig 4: Lighting Systems References 2 of 2

Courtesy of GENERAL MOTORS CORP.
