Installation Procedure

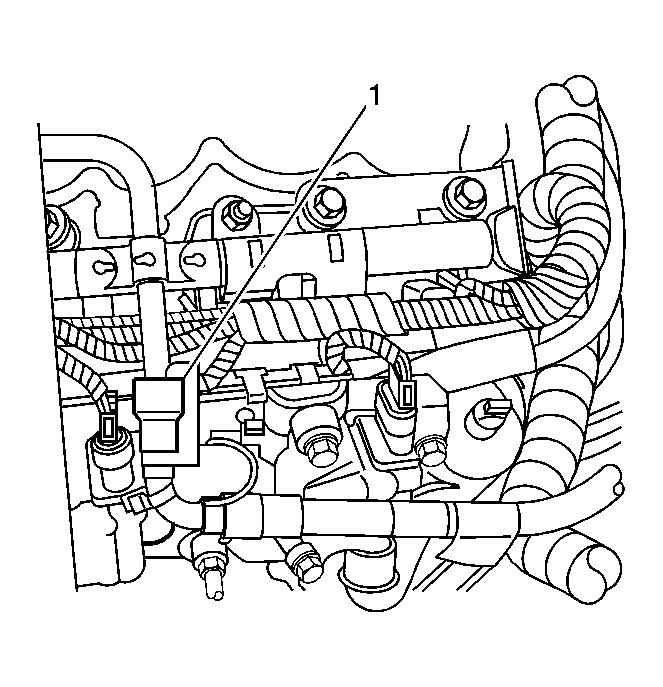

    Fig 1: Identifying Engine Compartment Fuel Feed Pipe
    GM1575582Courtesy of GENERAL MOTORS CORP.
  1. Install the engine compartment fuel feed pipe (1) at the fuel rail.
  2. Install the fuel filler cap.
  3. Inspect for leaks.
  4. Connect the negative battery cable.
    1. Turn ON the ignition for 2 seconds.
    2. Turn OFF the ignition for 2 seconds.
    3. Turn ON the ignition.
    4. Inspect for fuel leaks.
  5. Install both engine sight shield covers. Refer to Upper Intake Manifold Sight Shield Replacement .
