Home
>>
Pontiac
>>
2006
>>
G6 GTP, 2D Convertible
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Electrical Component Locations
>>
Wiring Systems - Component Views
>>
Electrical Center Identification Views
>>
Fuse Block - Rear Top View
Fuse Block - Rear Top View

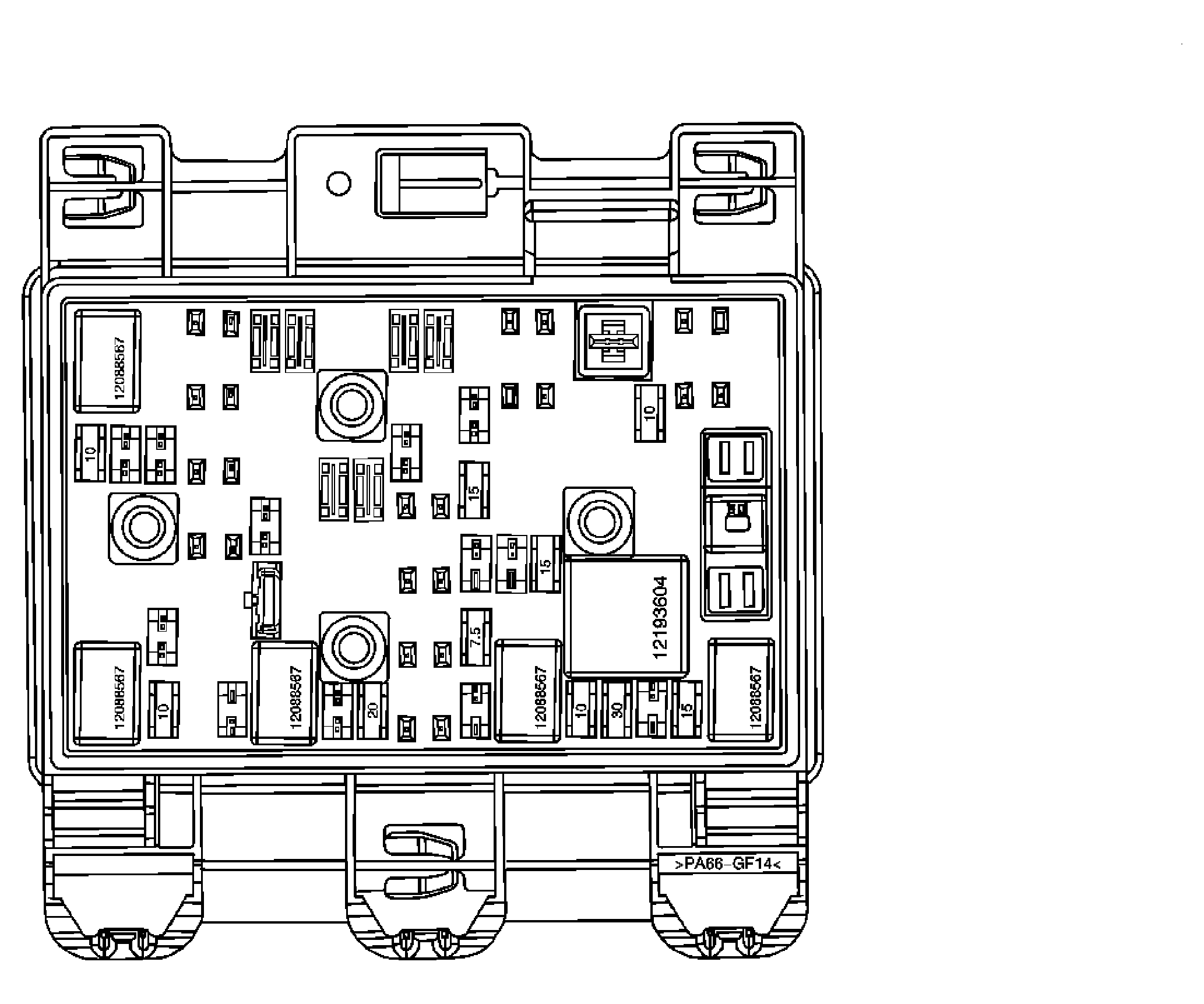

Fig 1: Fuse Block - Rear Top View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
