ABS Schematics

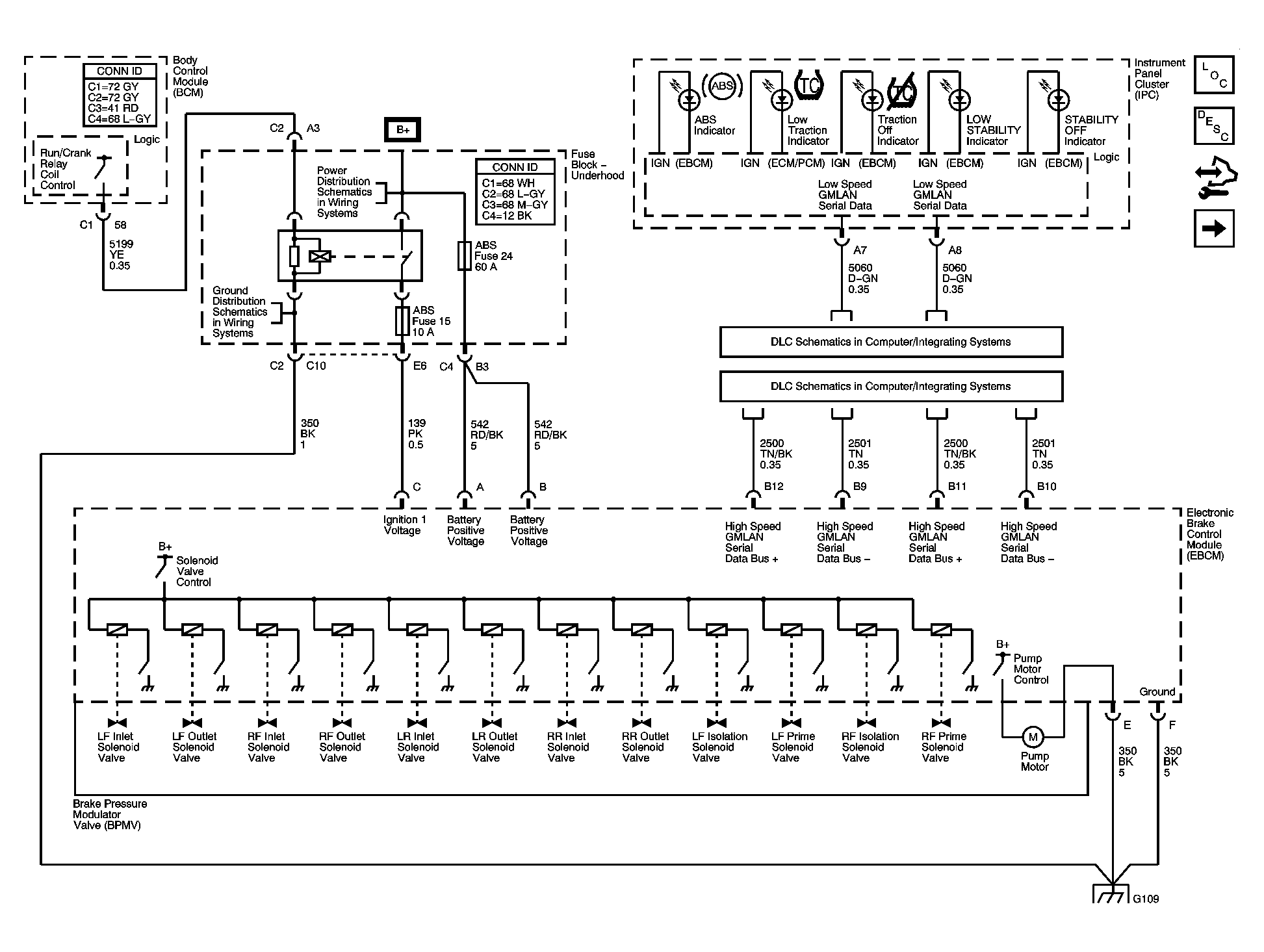

Fig 1: DLC, Ground, Indicators and Power
GM1630478Courtesy of GENERAL MOTORS CORP.

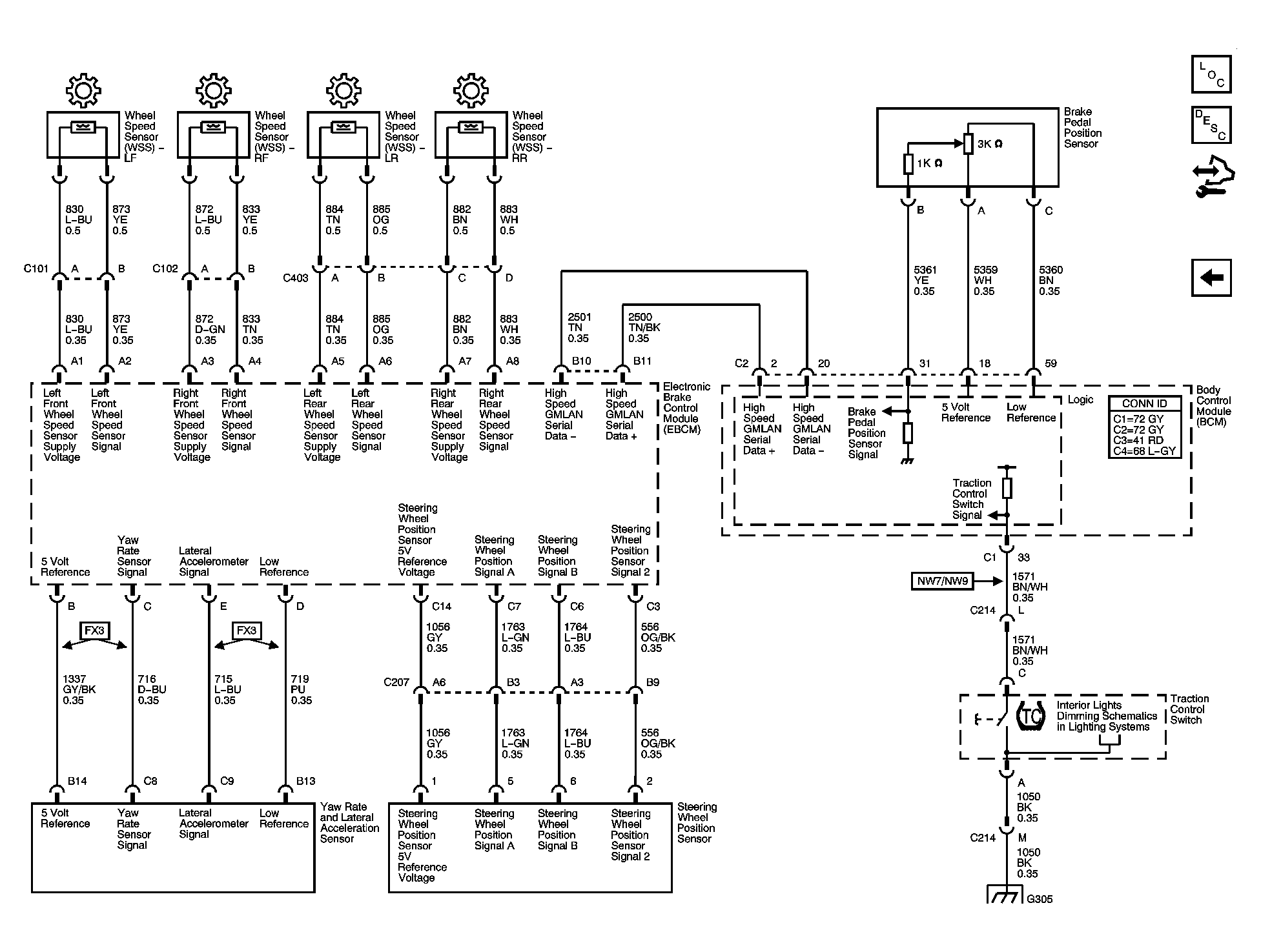

Fig 2: Sensors and Traction Control
GM1630480Courtesy of GENERAL MOTORS CORP.

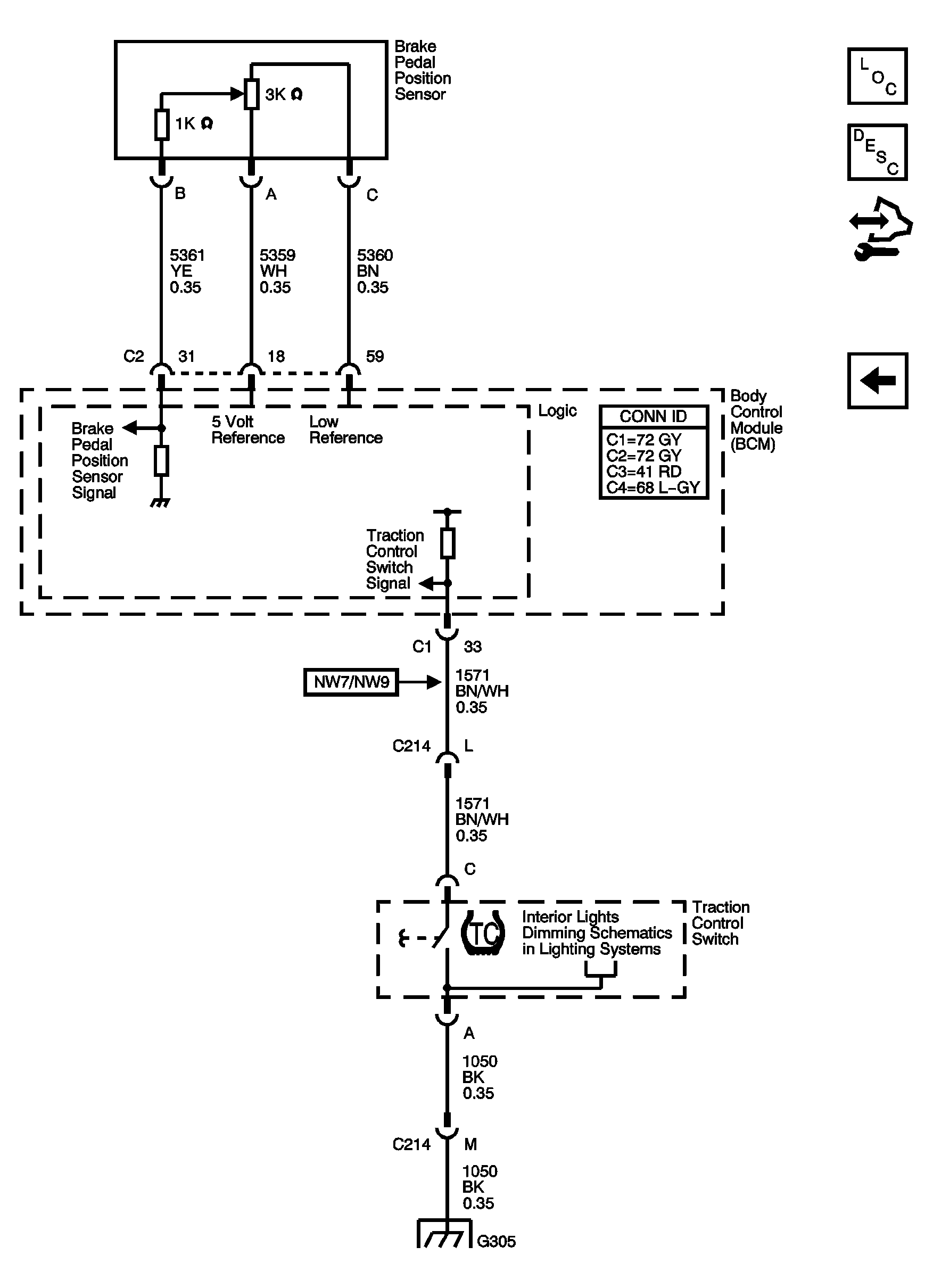

Fig 3: Brake Pedal Position Sensor and Traction Control Switch
GM1740743Courtesy of GENERAL MOTORS CORP.
