Installation Procedure

    Fig 1: Identifying Generator Lower Bolt & Stud
    GM1584688Courtesy of GENERAL MOTORS CORP.
  1. Install the generator.
  2. Install the generator lower bolt and stud until snug.

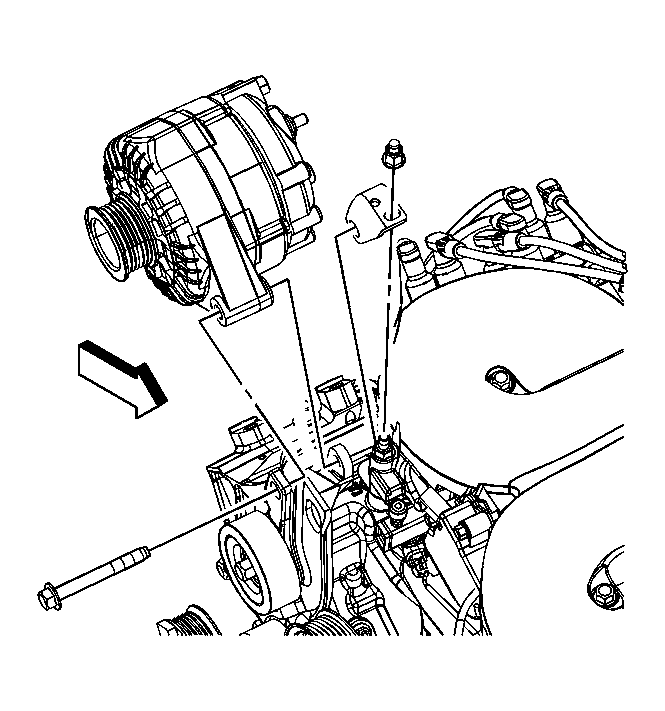

    3. Fig 2: Identifying Generator, Brace & Bolts
    GM1584686Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the generator upper bolt.

    Tighten:  Tighten the bolts/stud to 50 N.m (37 lb ft).

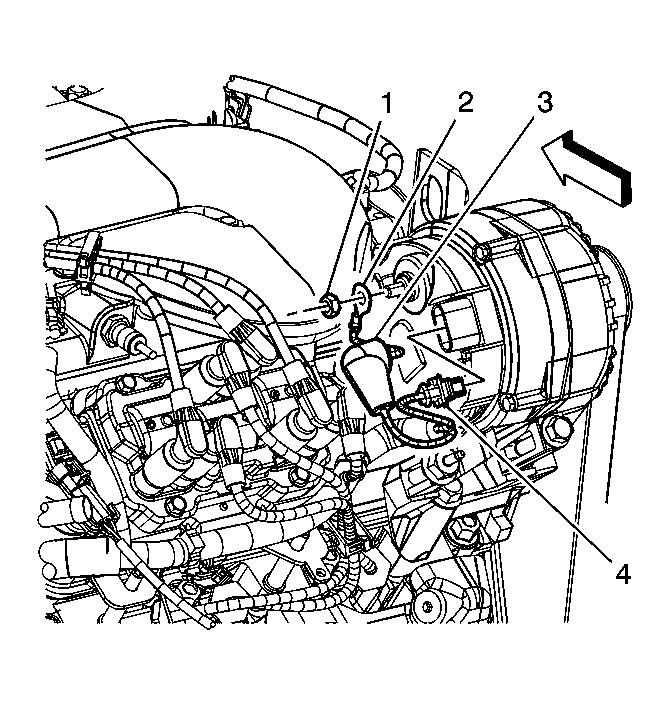

    4. Fig 3: View Of Generator
    GM1584684Courtesy of GENERAL MOTORS CORP.
  4. Install the engine harness terminal (2).
  5. Install the engine harness terminal nut (1).

    Tighten:  Tighten the nut to 30 N.m (22 lb ft).

  6. Position the generator rubber boot (3).
  7. Connect the engine harness electrical connector.
  8. Install the drive belt. Refer to Drive Belt Replacement .
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
