Power Window Schematics

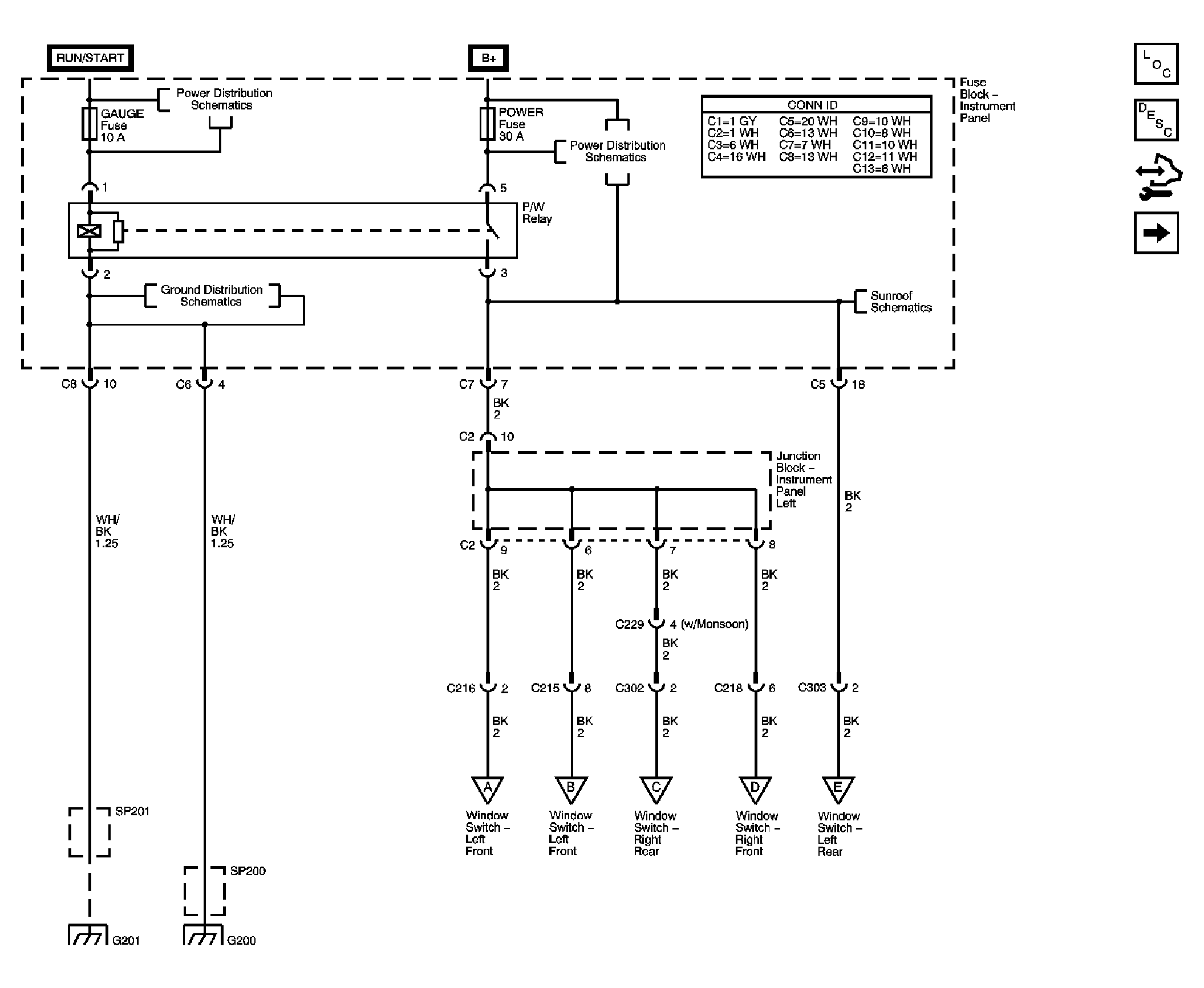

Fig 1: Power Window Schematic (1 of 2)

GM1426674

Courtesy of GENERAL MOTORS CORP.

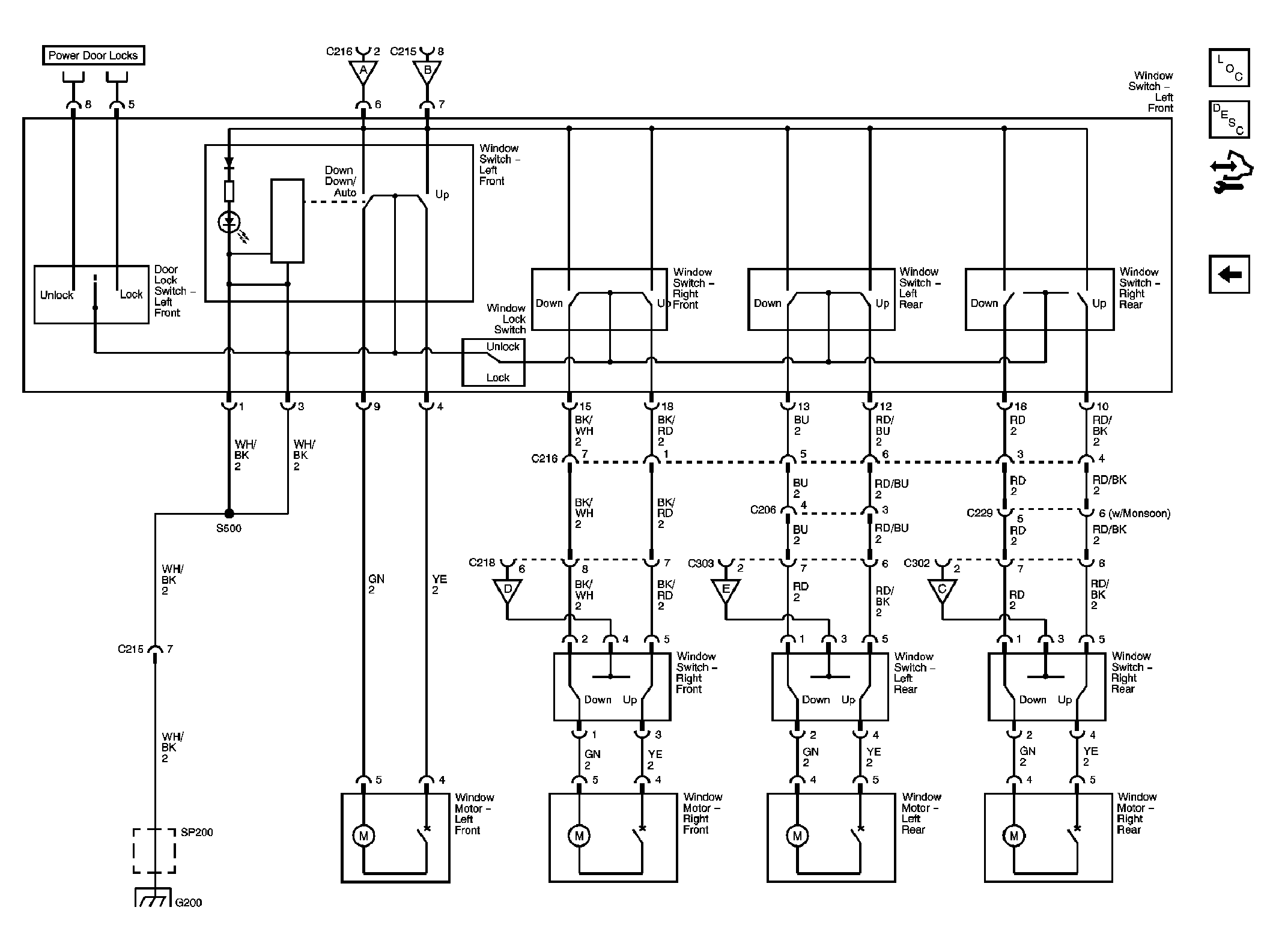

Fig 2: Power Window Schematic (2 of 2)

GM1426675

Courtesy of GENERAL MOTORS CORP.
