Body Control System Schematics

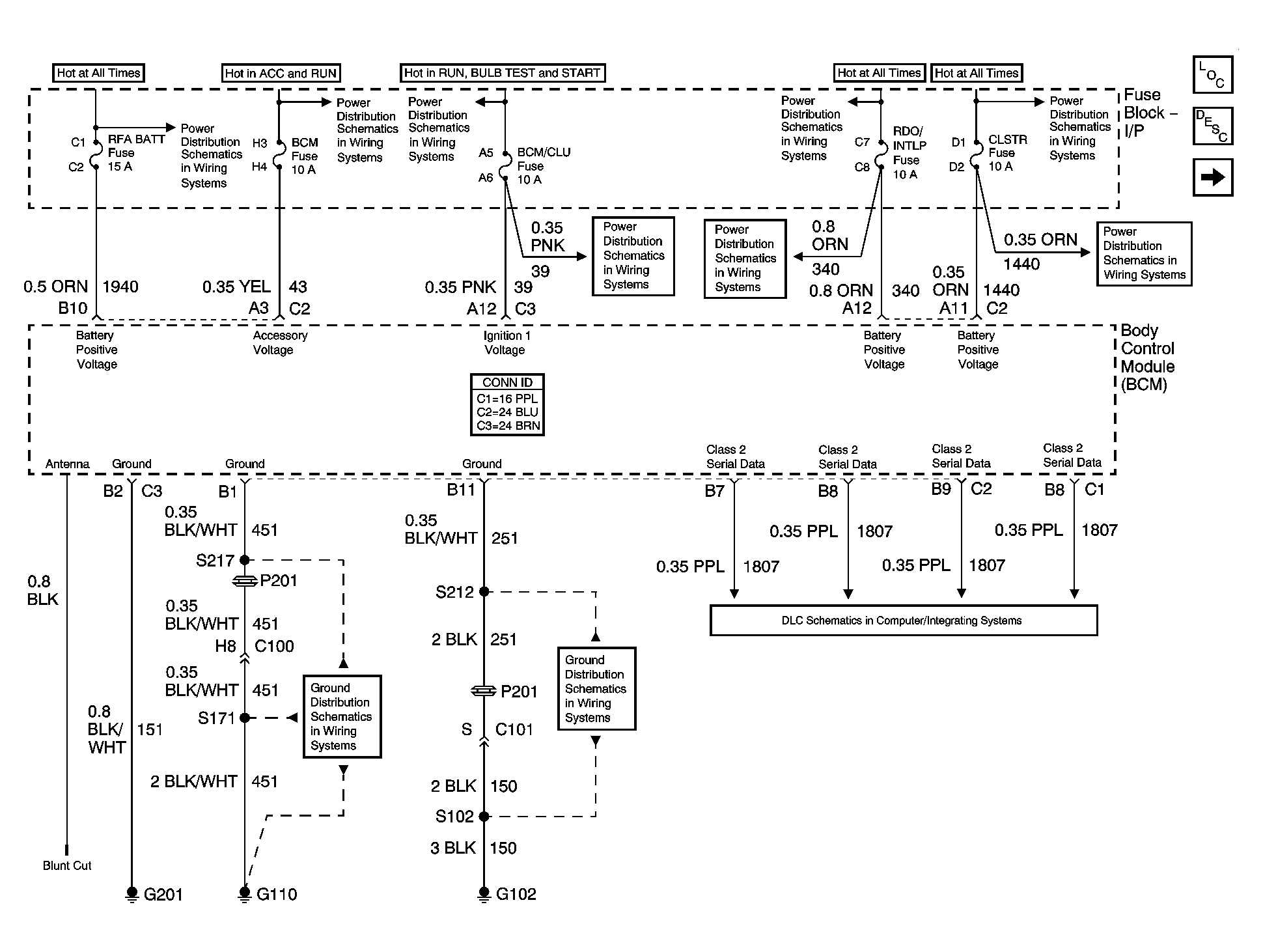

Fig 1: Power, Ground, Serial Data Schematic
GM1400626Courtesy of GENERAL MOTORS CORP.

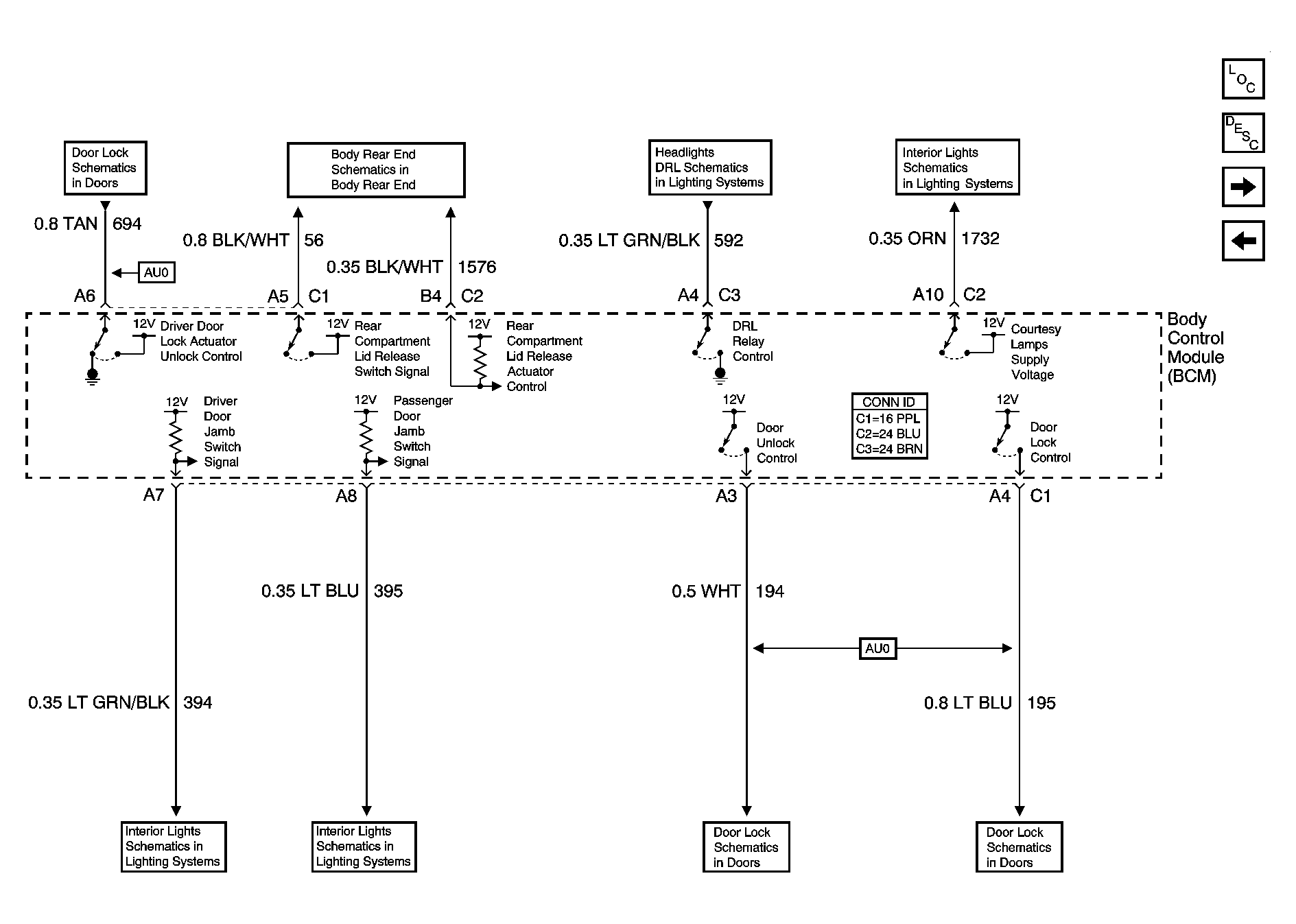

Fig 2: Controlled/Monitored Subsystem References 1 of 3
GM787660Courtesy of GENERAL MOTORS CORP.

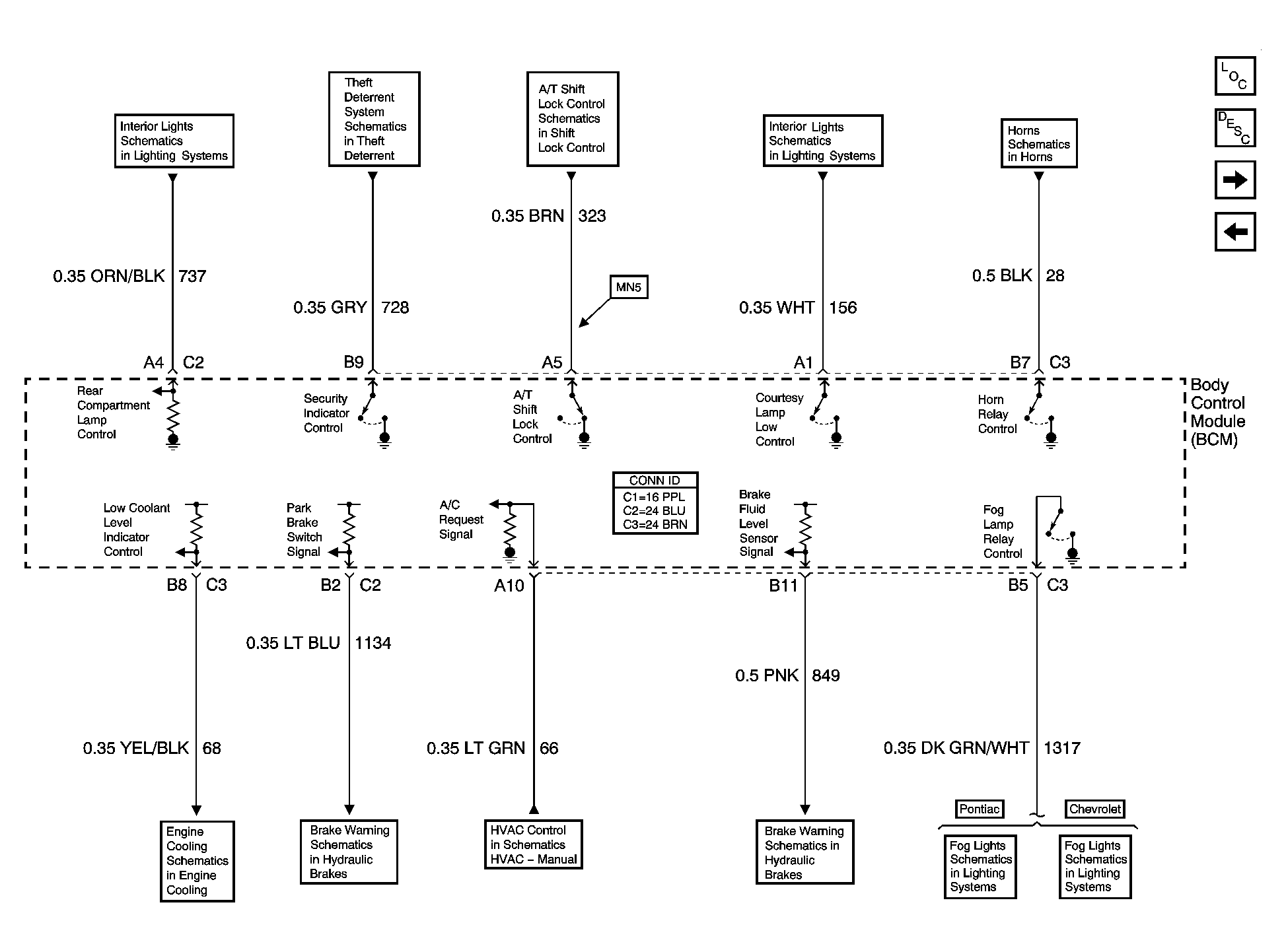

Fig 3: Controlled/Monitored Subsystem References 2 of 3
GM1404691Courtesy of GENERAL MOTORS CORP.

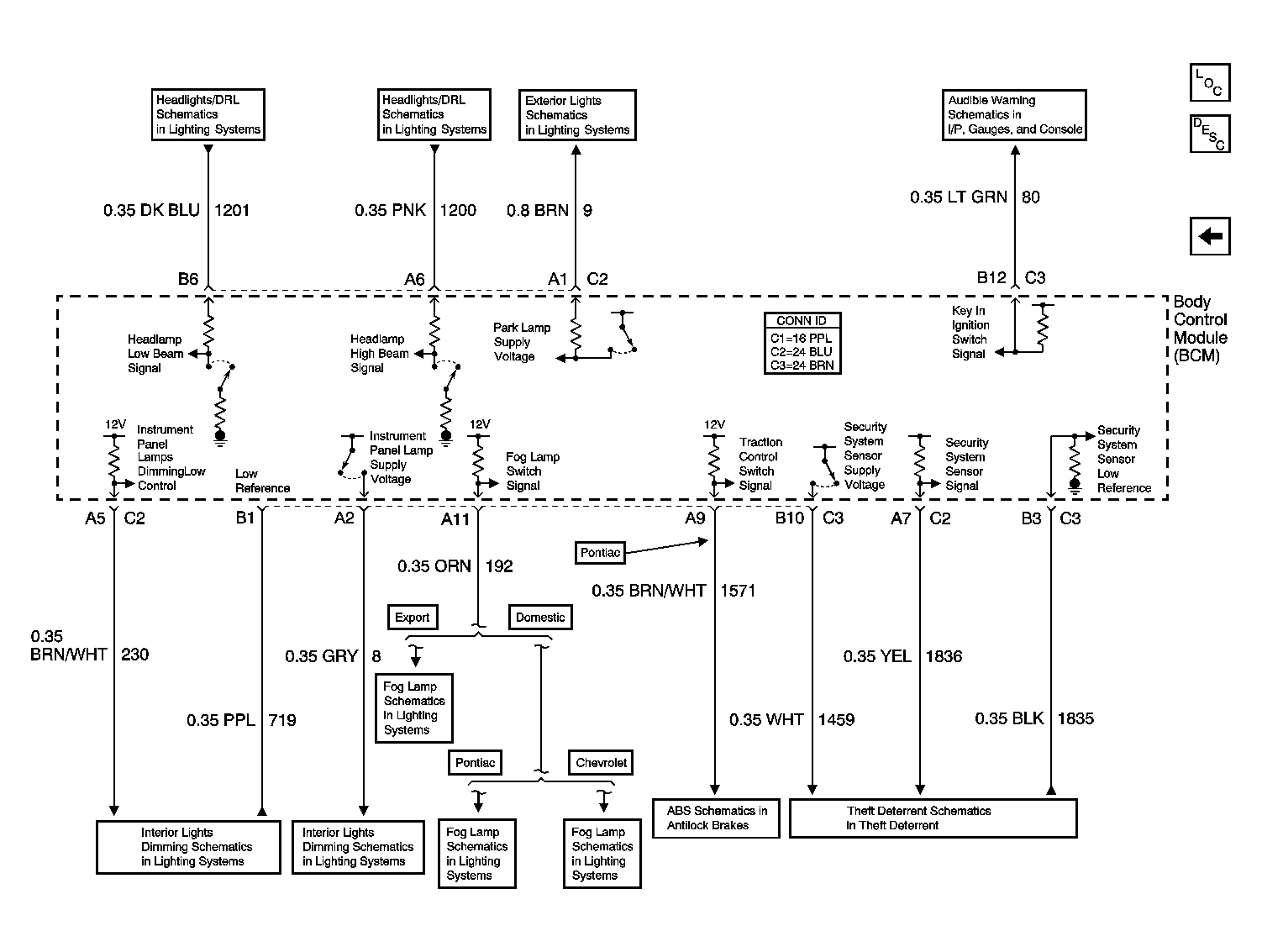

Fig 4: Controlled/Monitored Subsystem References 3 of 3
GM860648Courtesy of GENERAL MOTORS CORP.
