Automatic Transmission Related Connector End Views

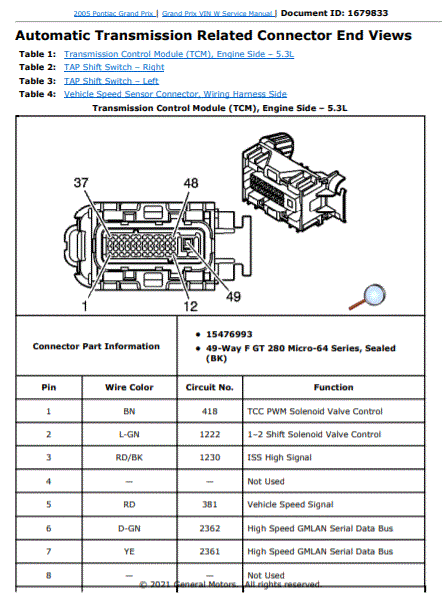

G00597751Courtesy of GENERAL MOTORS CORP.

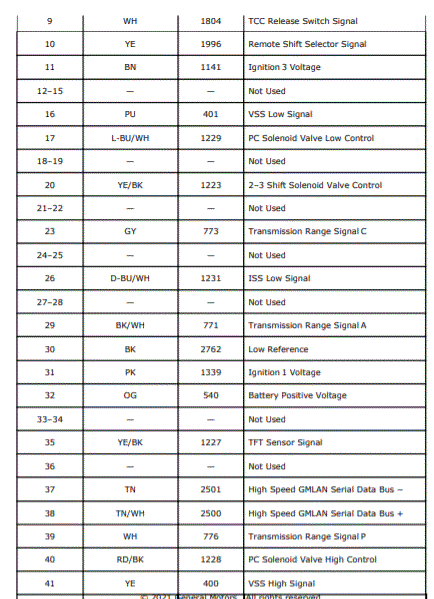

G00597752Courtesy of GENERAL MOTORS CORP.

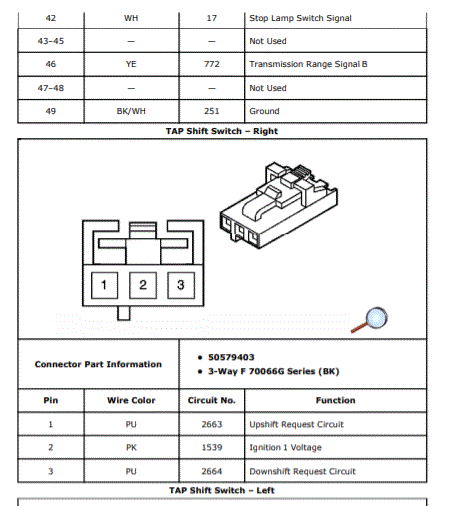

G00597753Courtesy of GENERAL MOTORS CORP.

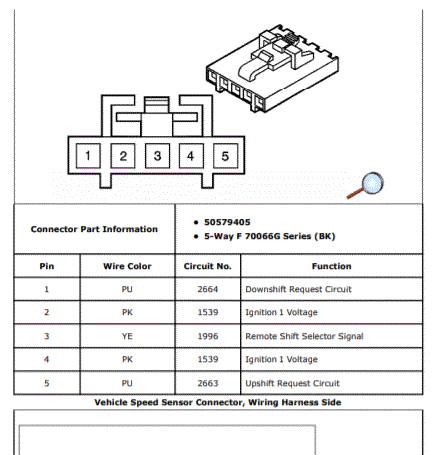

G00597754Courtesy of GENERAL MOTORS CORP.

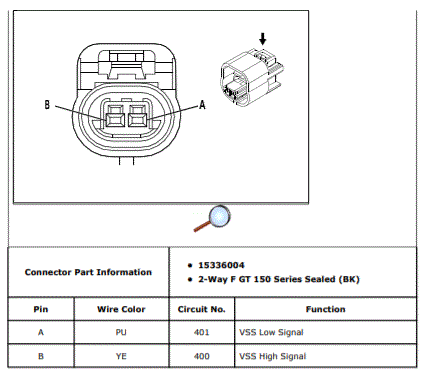

G00597755Courtesy of GENERAL MOTORS CORP.
