Door Lock/Indicator Schematics

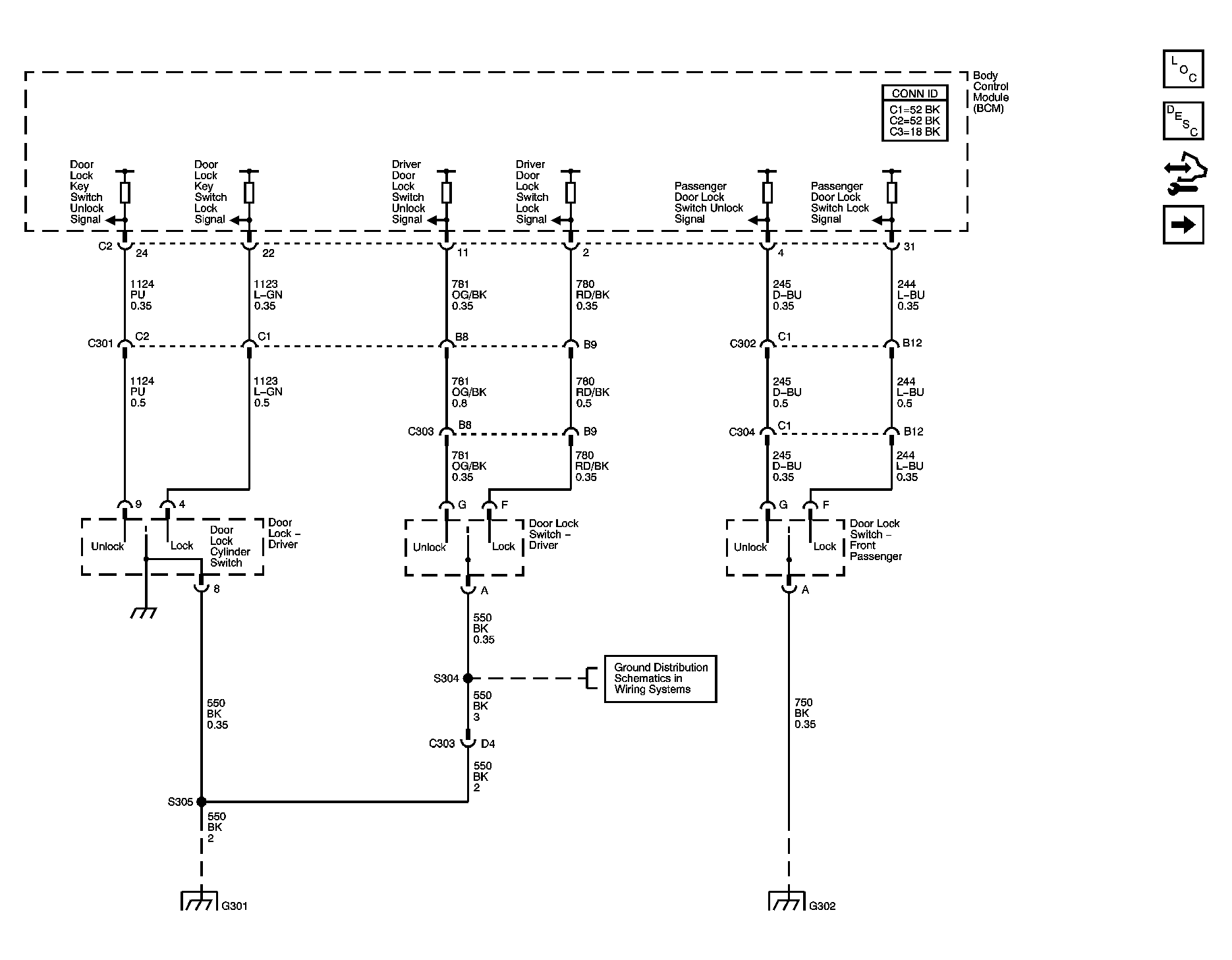

Fig 1: Door Lock Switches Schematics
GM1457779Courtesy of GENERAL MOTORS CORP.

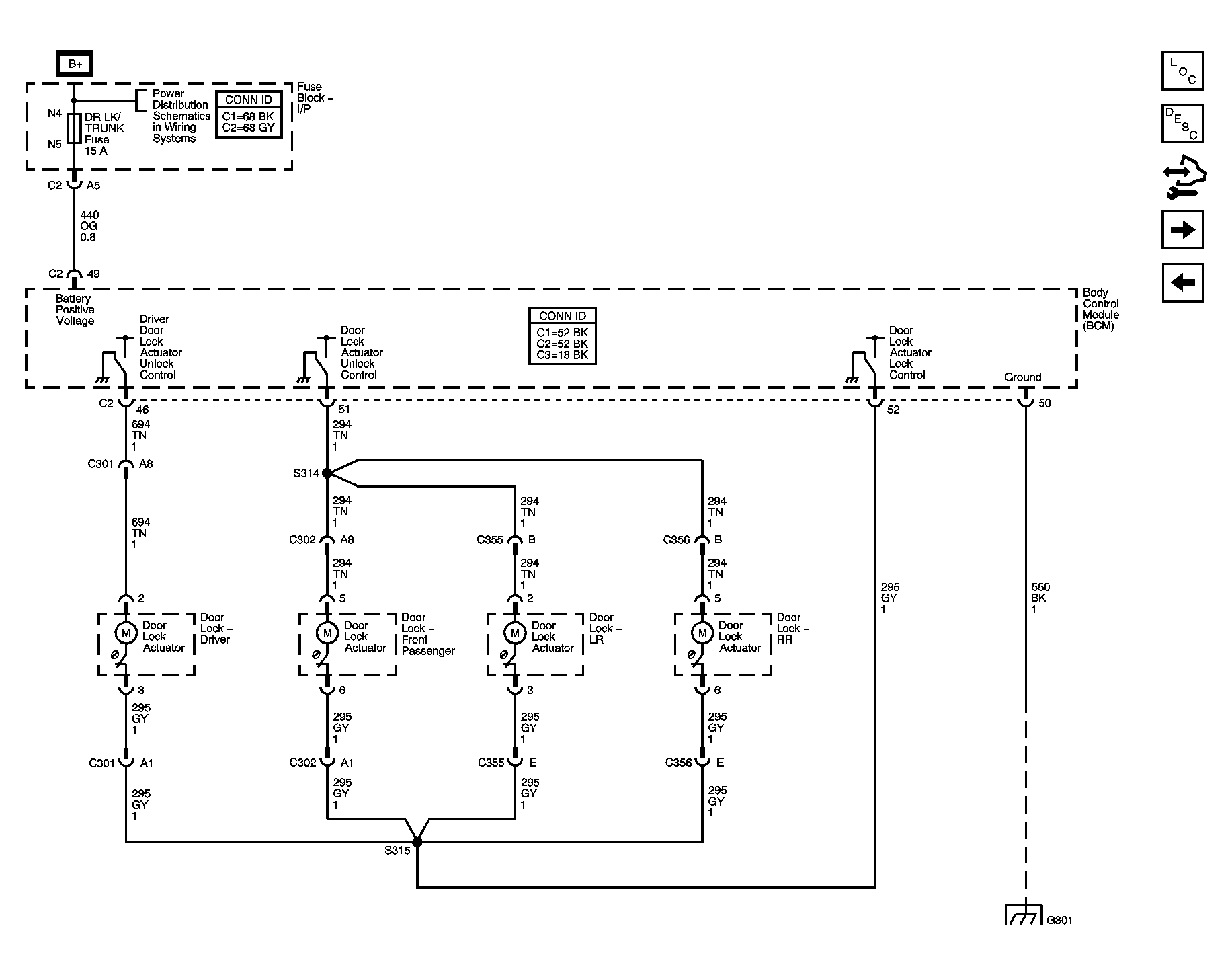

Fig 2: Door Lock Actuators Schematics
GM1457780Courtesy of GENERAL MOTORS CORP.

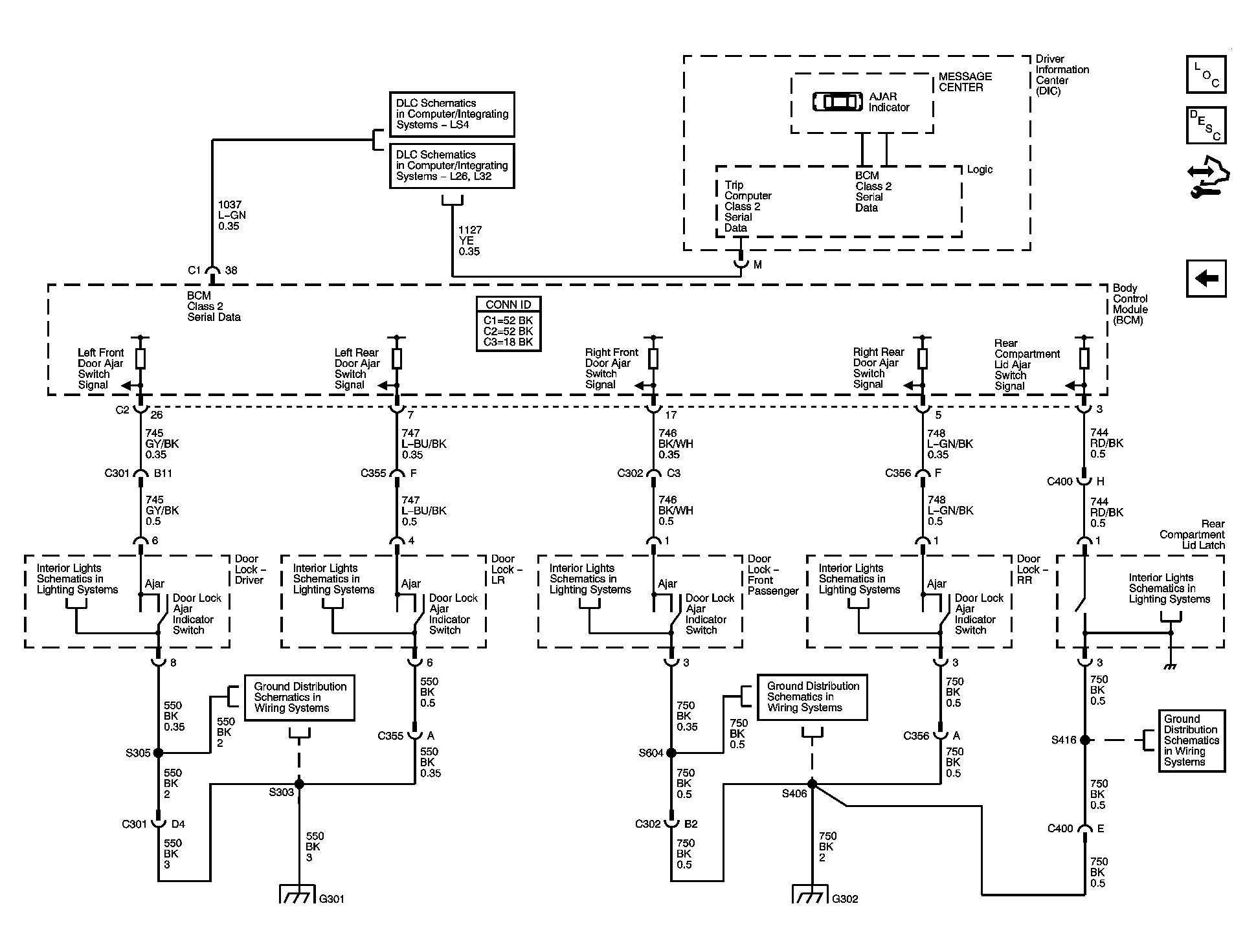

Fig 3: Door Ajar Indicators Schematics
GM1457781Courtesy of GENERAL MOTORS CORP.
