Body Control System Schematics

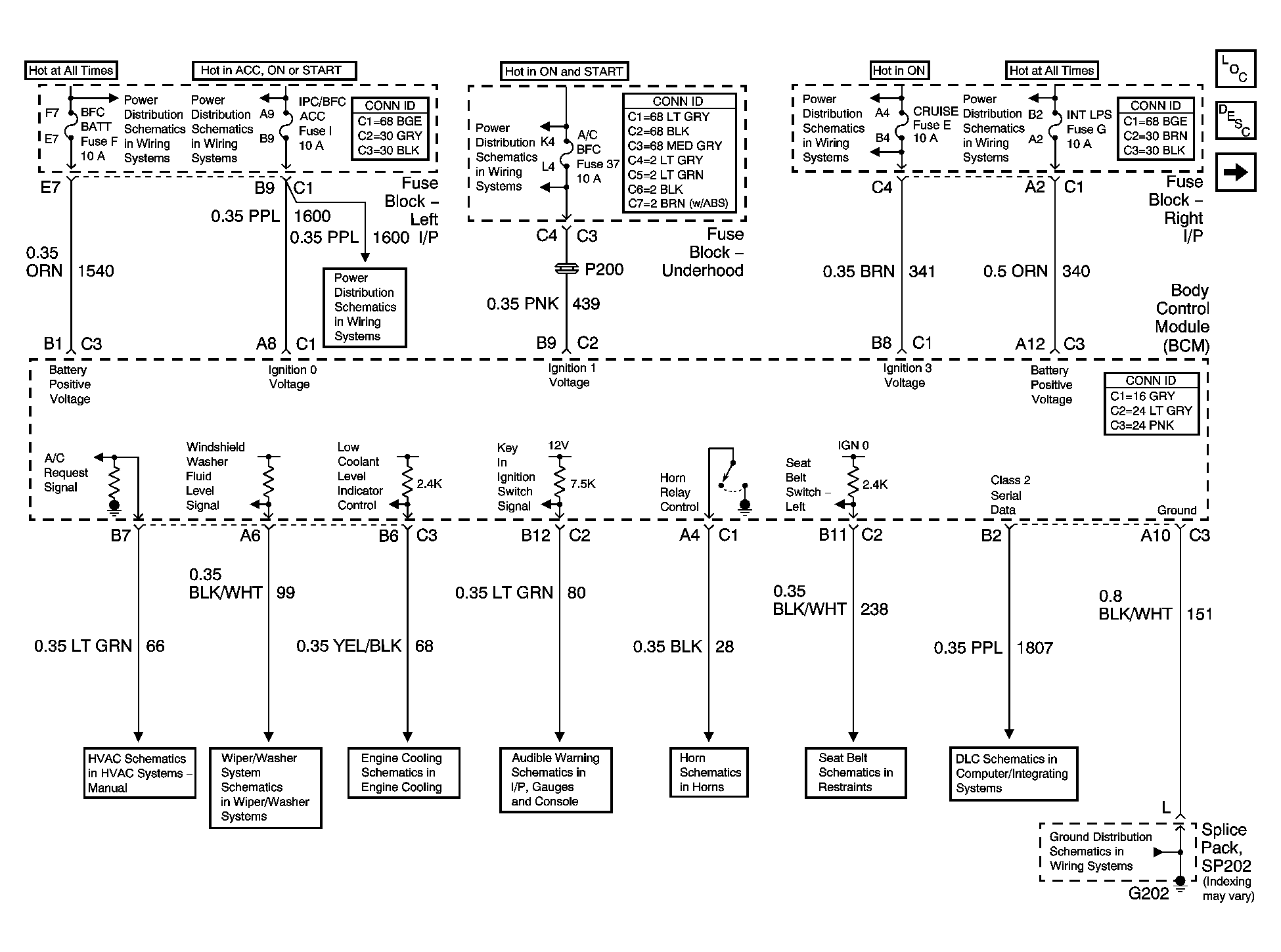

Fig 1: Power, Ground & Controlled/Monitored References Schematic
GM1392085Courtesy of GENERAL MOTORS CORP.

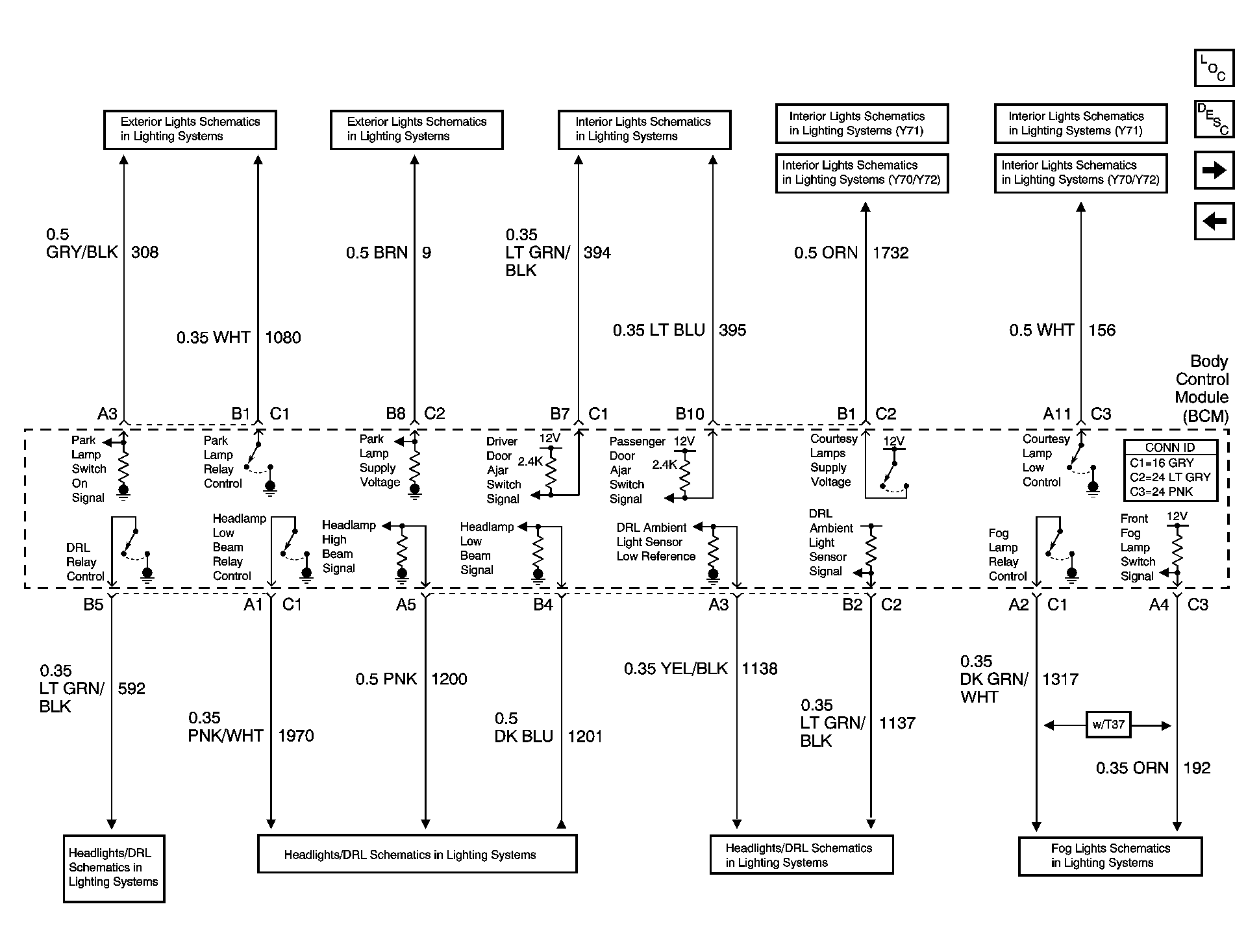

Fig 2: Controlled/Monitored Lighting References Schematic
GM1392090Courtesy of GENERAL MOTORS CORP.

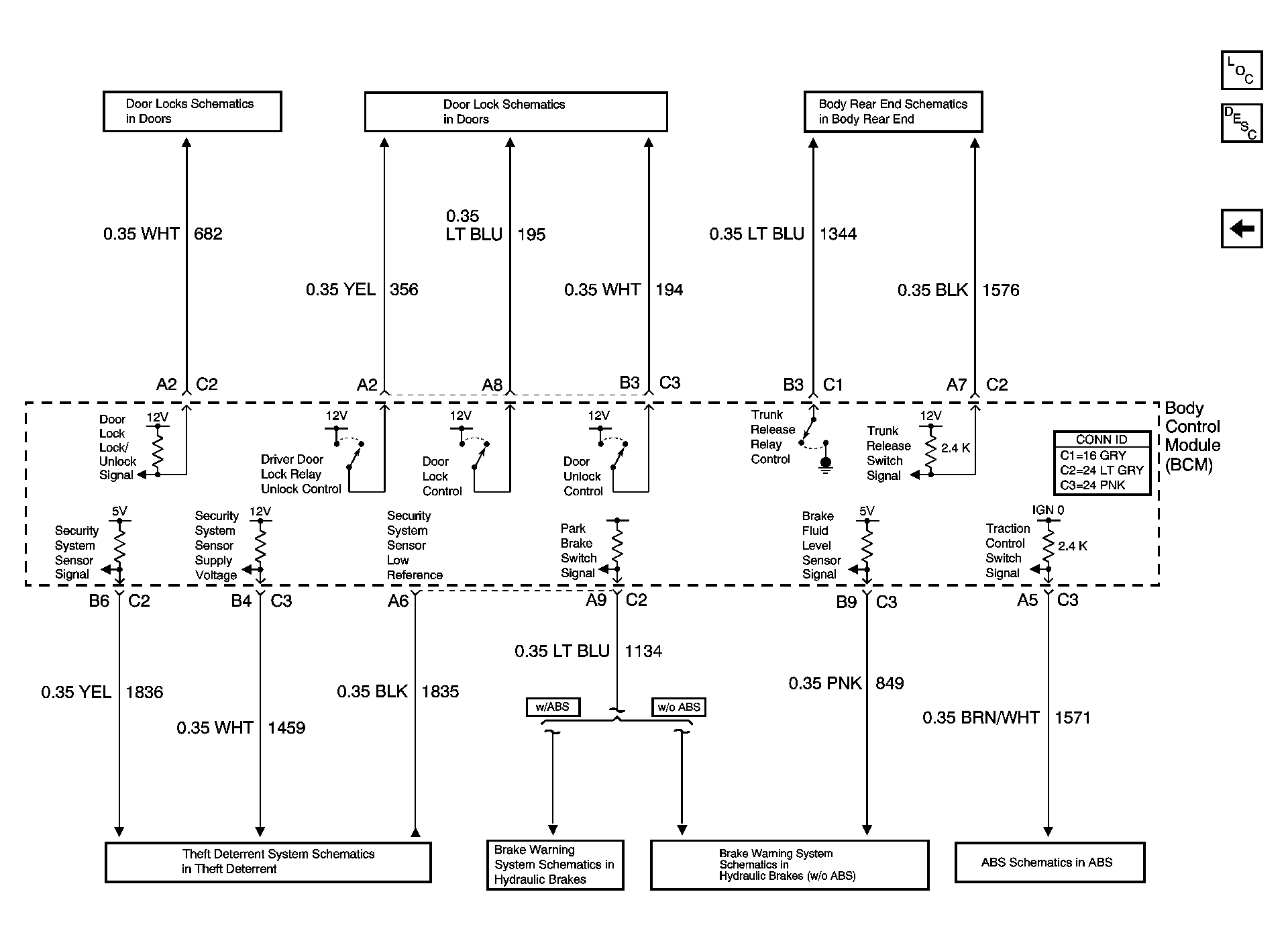

Fig 3: Controlled/Monitored Lock, Theft Deterrent, Brake References Schematic
GM1392093Courtesy of GENERAL MOTORS CORP.
