Power Steering System Schematics

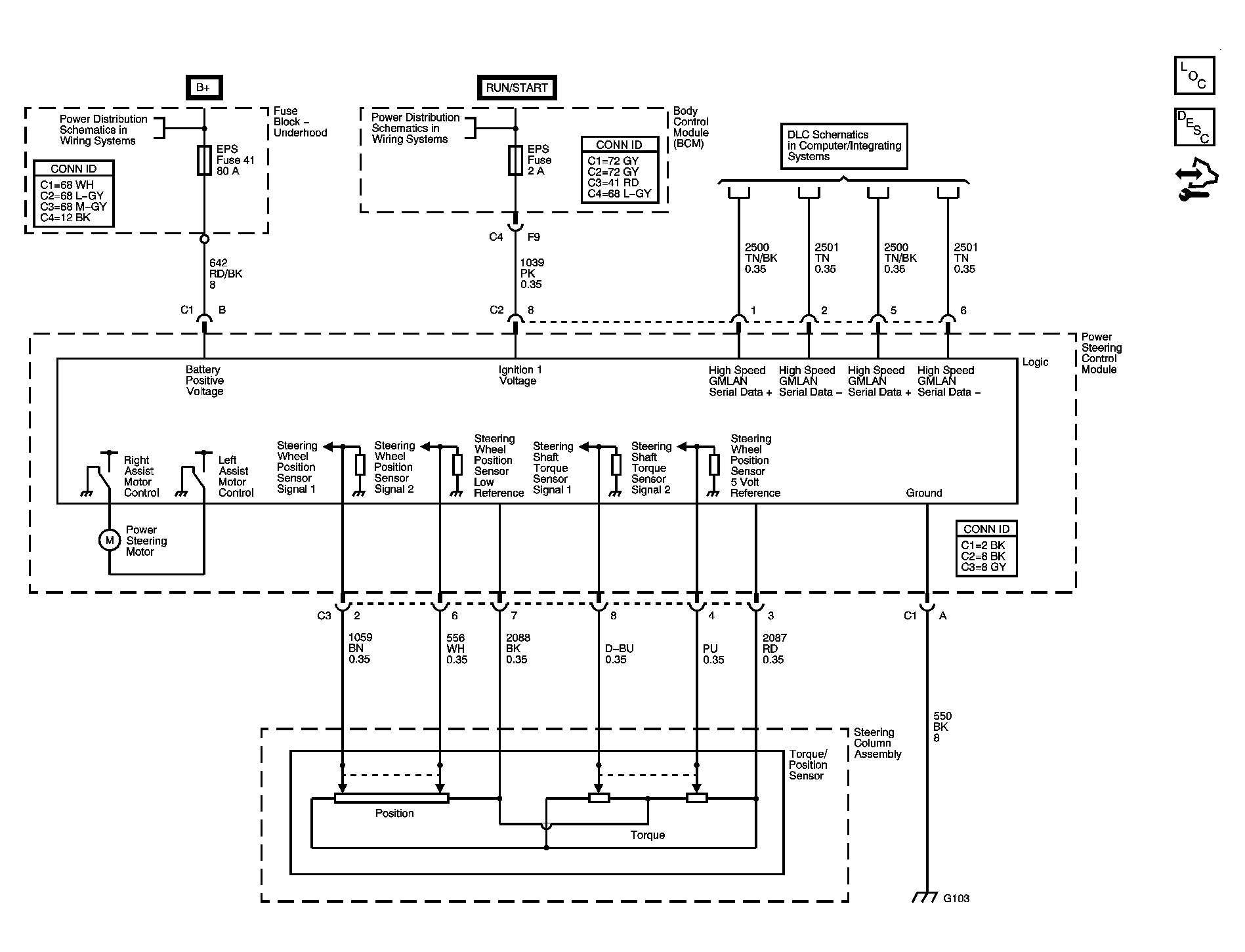

Fig 1: Power Steering System Schematics

GM1477801

Courtesy of GENERAL MOTORS CORP.
