ABS Schematics

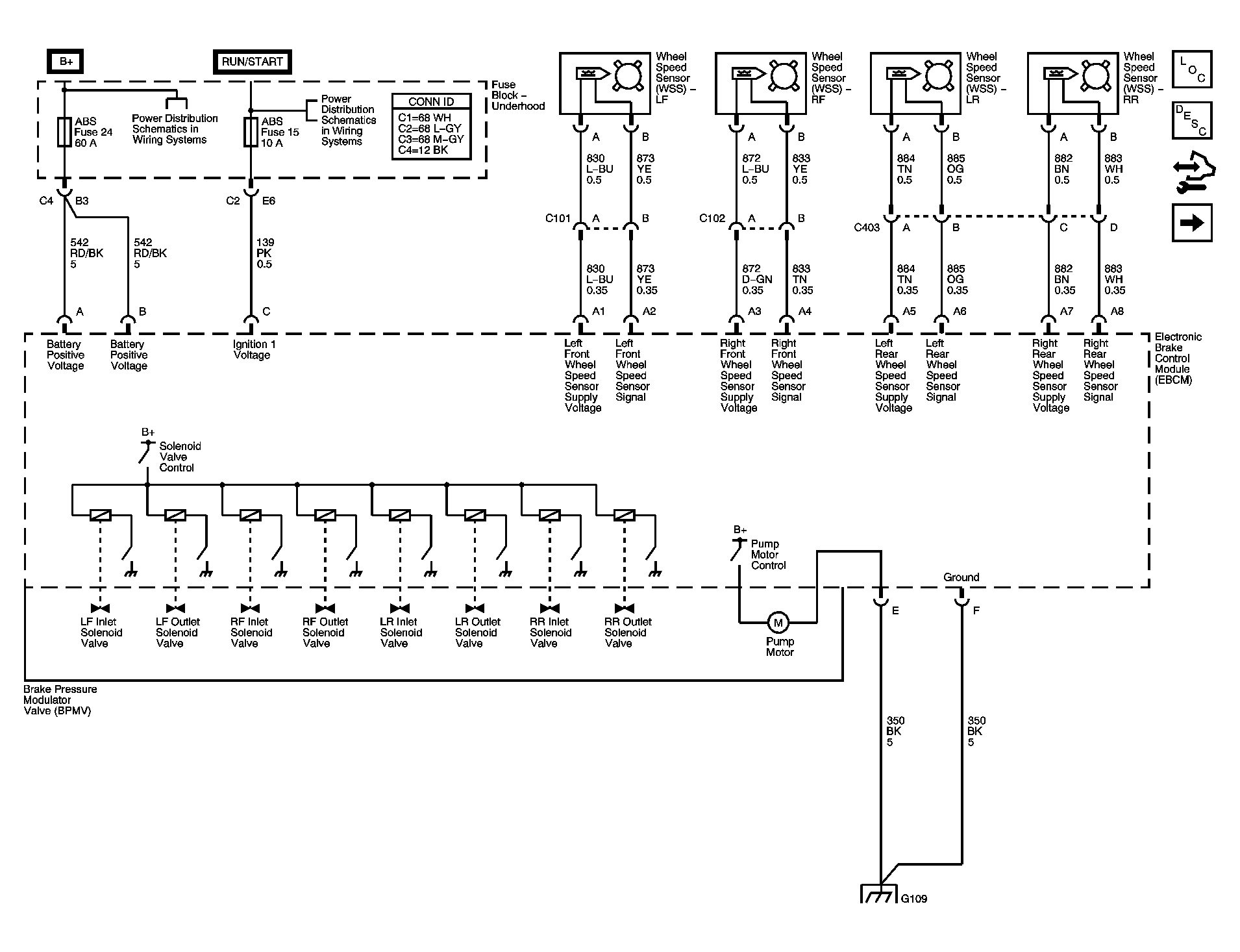

Fig 1: Power, Ground and Wheel Speed Sensors
GM1461912Courtesy of GENERAL MOTORS CORP.

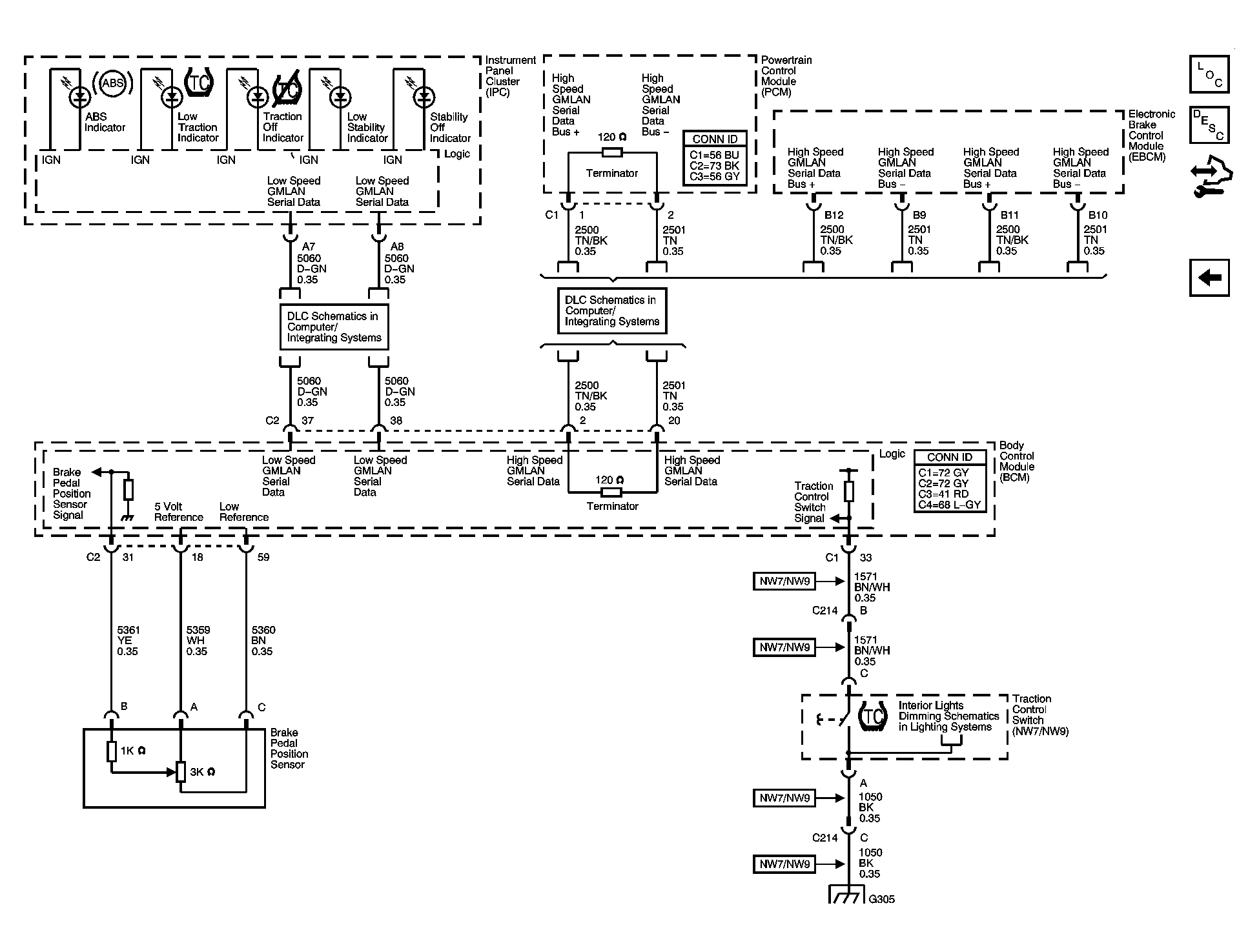

Fig 2: Brake Pedal Position Sensor, Traction Control Switch and Data Link Communications
GM1461914Courtesy of GENERAL MOTORS CORP.
