Home >> Pontiac >> 2005 >> G6 Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Schematic and Routing Diagrams >> Door Lock/Indicator Schematics

Door Lock/Indicator Schematics

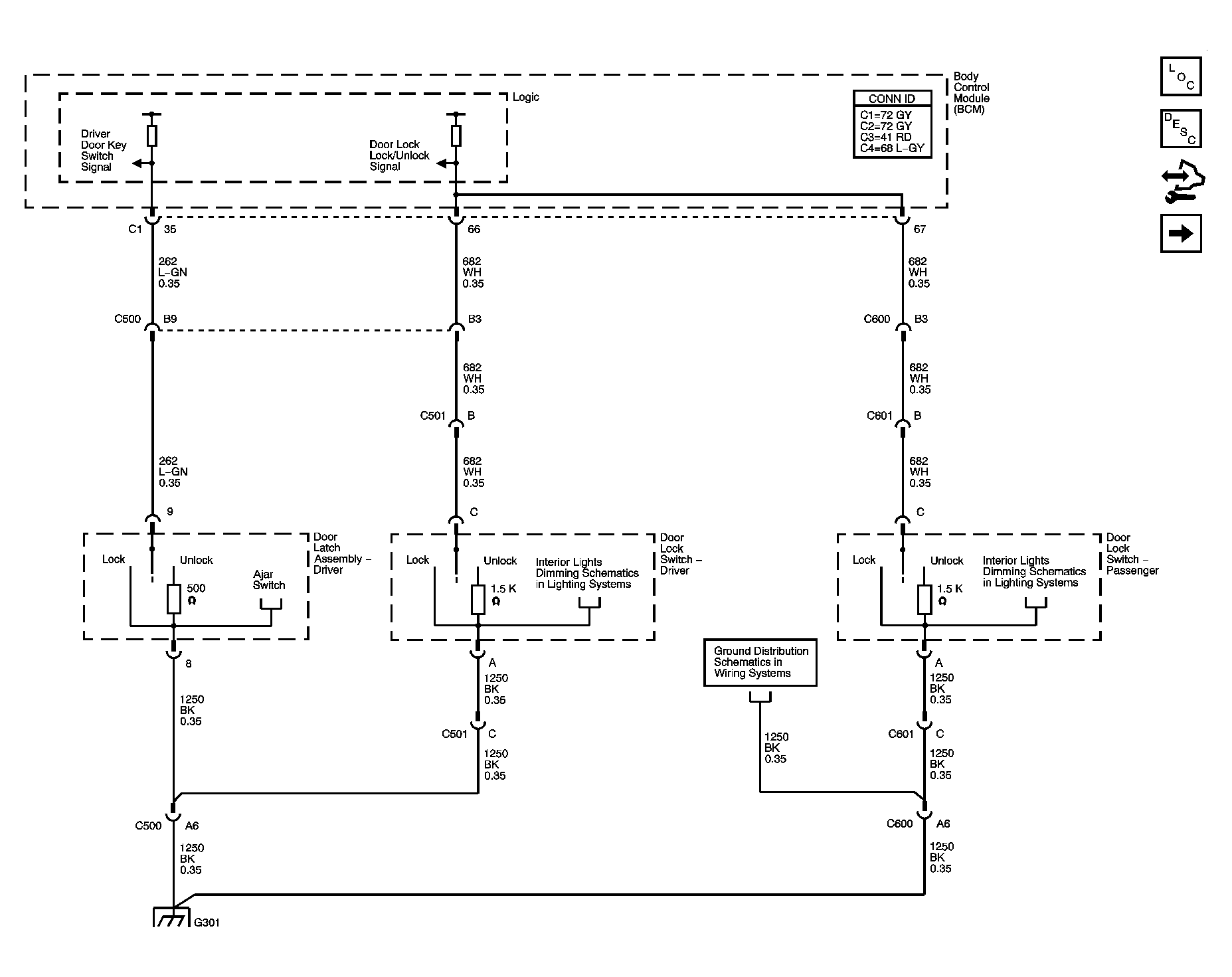

Fig 1: Door Lock Switches
GM1478524Courtesy of GENERAL MOTORS CORP.

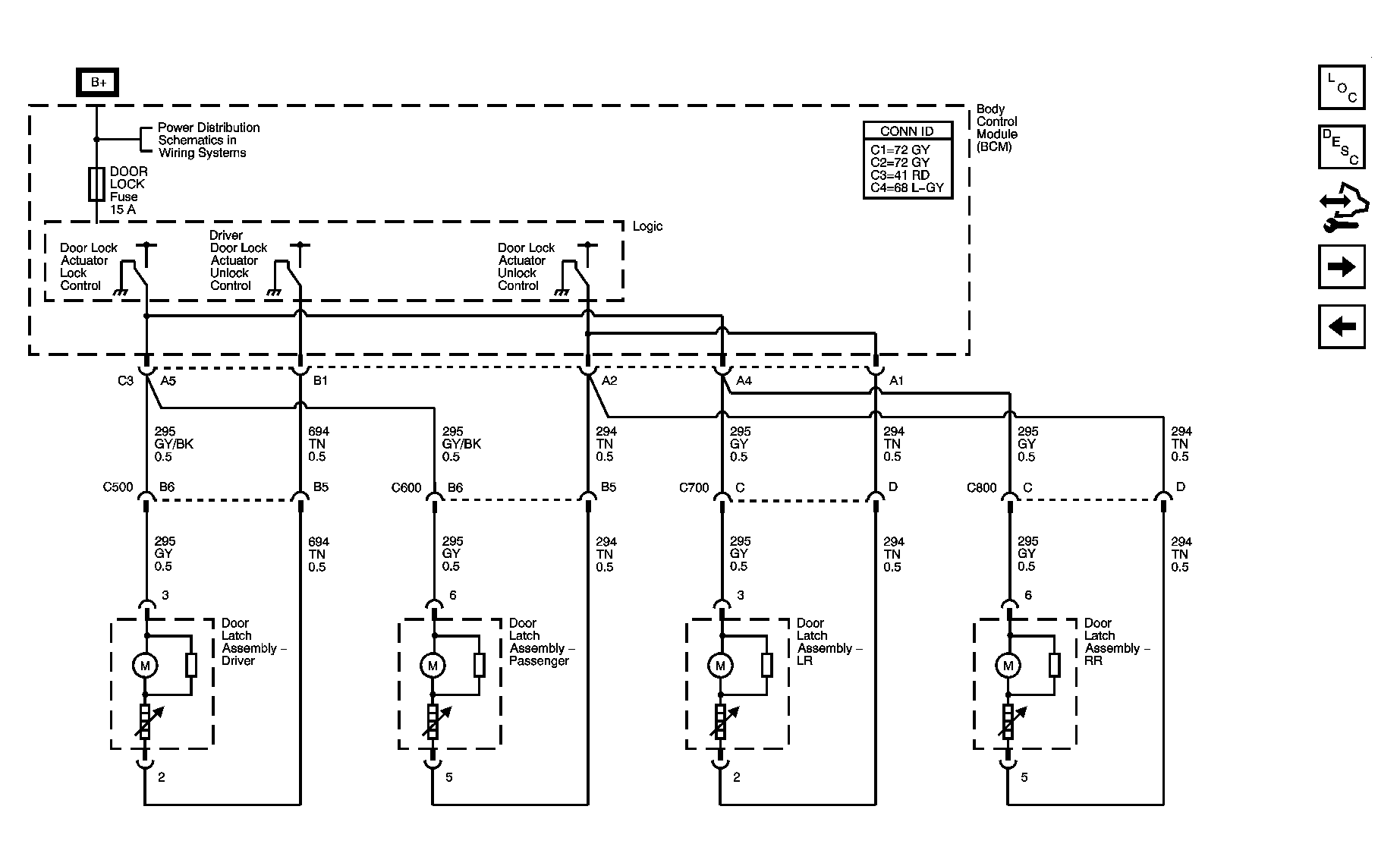

Fig 2: Door Lock Actuators
GM1478526Courtesy of GENERAL MOTORS CORP.

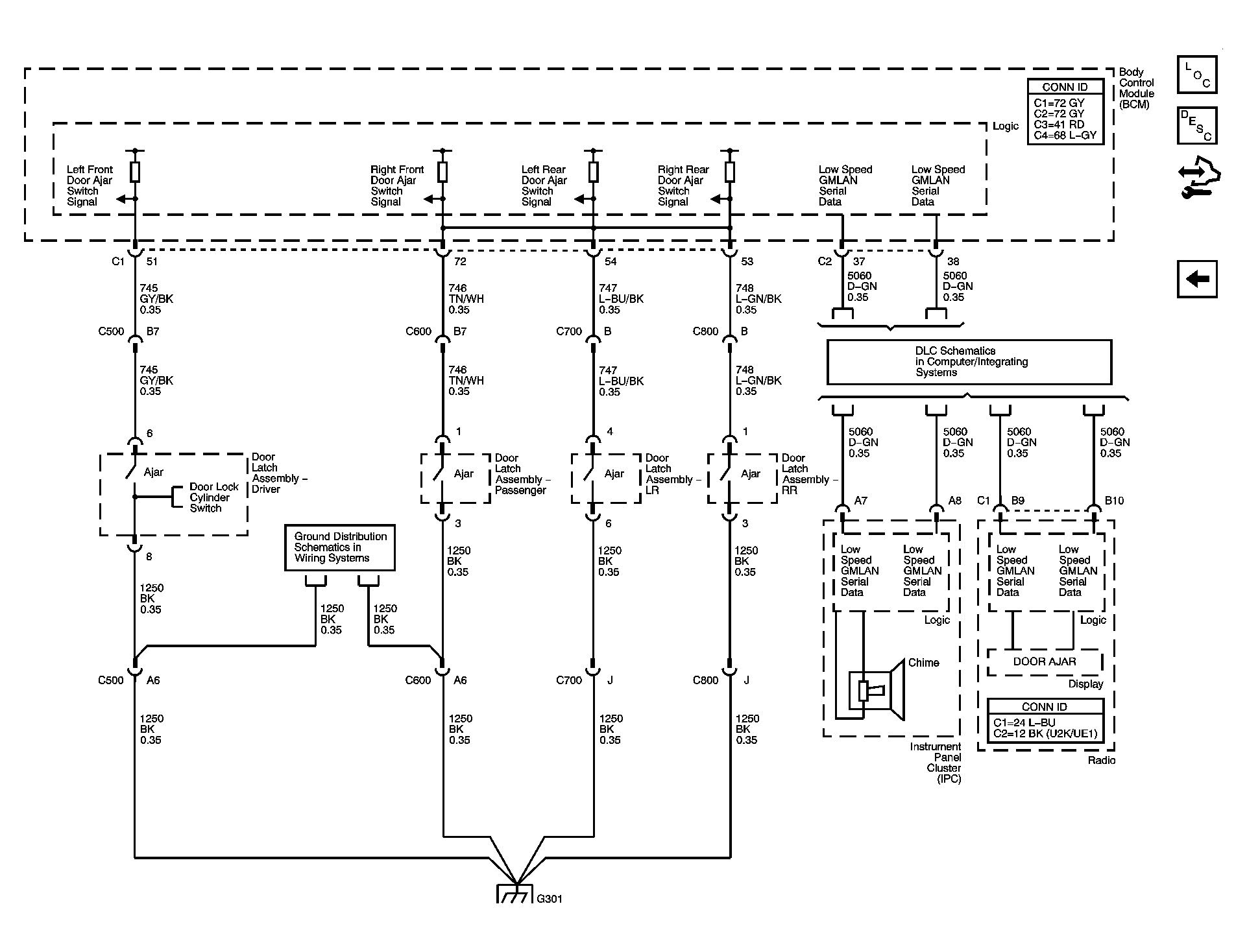

Fig 3: Door Ajar Indicator
GM1478527Courtesy of GENERAL MOTORS CORP.
