Range Selector Displays Incorrect Range (3.4L): Notes

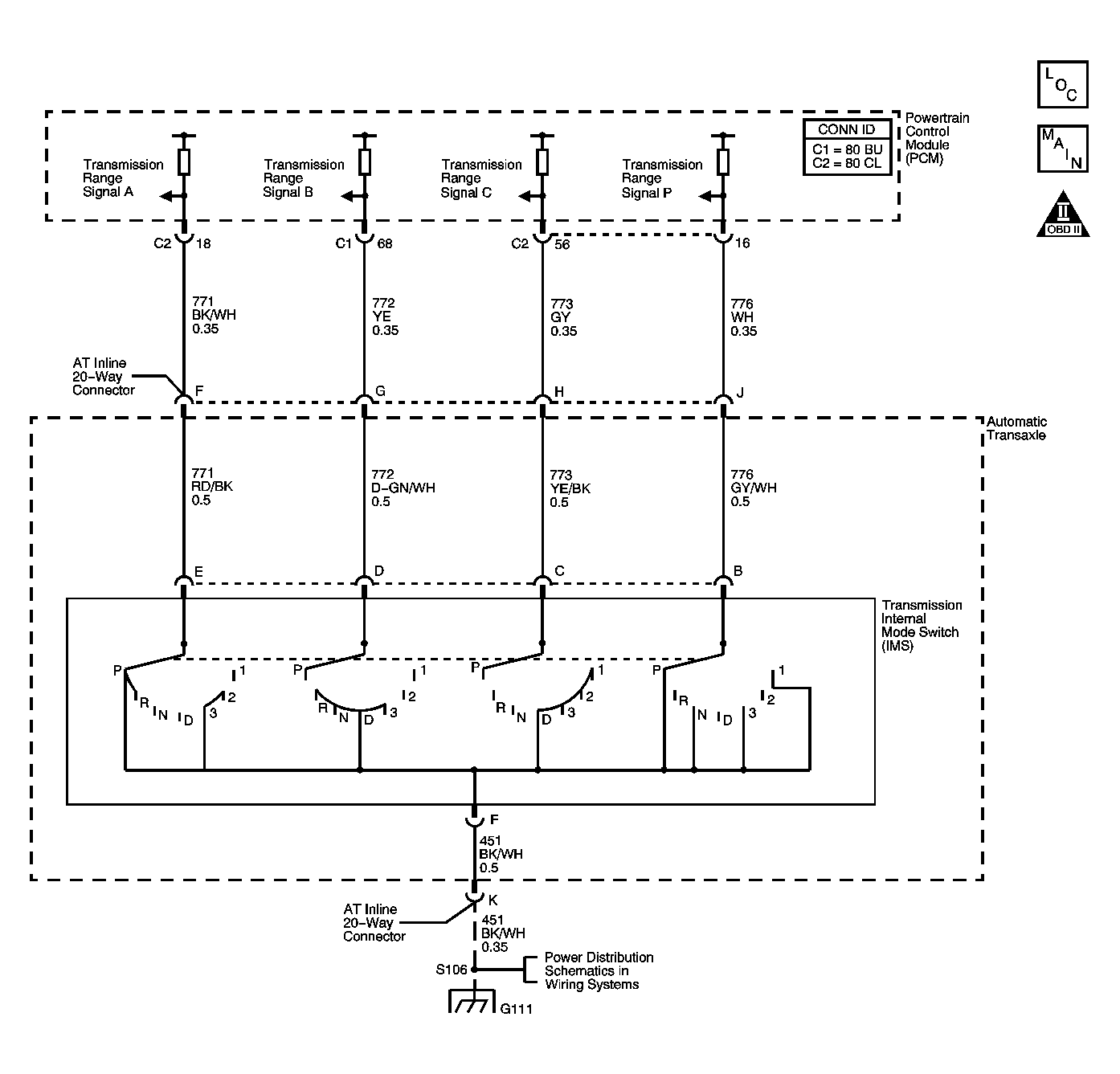

Fig 1: Transmission Internal Mode Switch (IMS) Schematic (3.4L)

GM1550036

Courtesy of GENERAL MOTORS CORP.
