Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the oil pan. Refer to Oil Pan Replacement .
  3. Remove the filter. Refer to Oil Filter and Seal Replacement .
    4. Fig 1: Identifying Accumulator & Manual 2-1 Band Servo Cover Bolts
    GM164809Courtesy of GENERAL MOTORS CORP.
  4. Remove the accumulator cover bolts (131).
  5. Remove the manual 2-1 band servo cover bolts (103).

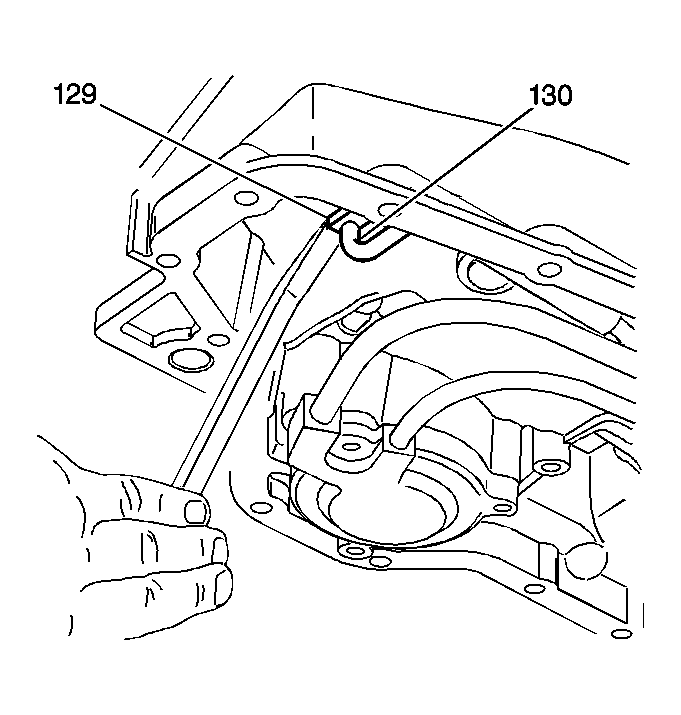

    6. Fig 2: View Of Lube Oil Pipe Retainer
    GM262607Courtesy of GENERAL MOTORS CORP.
  6. Use a large flat-bladed tool in order to gently pry the lube oil pipe retainer (129) from the case.
  7. Remove the lube oil pipe (130) from the front differential carrier internal gear lube hole.
    8. Fig 3: Identifying Accumulator
    GM164810Courtesy of GENERAL MOTORS CORP.
  8. Remove the accumulator (132).
  9. Remove the manual 2-1 band servo cover (104).
    10. Fig 4: View Of Manual 2-1 Band Servo
    GM164811Courtesy of GENERAL MOTORS CORP.
  10. Remove the manual 2-1 band servo (106-116).
  11. Remove the manual 2-1 band servo cover gasket (105).
  12. Disassemble, inspect and service the accumulator and manual 2-1 band servo.
