Home >> Pontiac >> 2005 >> Aztek Base, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle (DTC P0742 To DTC P1819) >> DTC Tests >> DTC P0976 (3.6L) >> Notes

DTC P0976 (3.6L): Notes

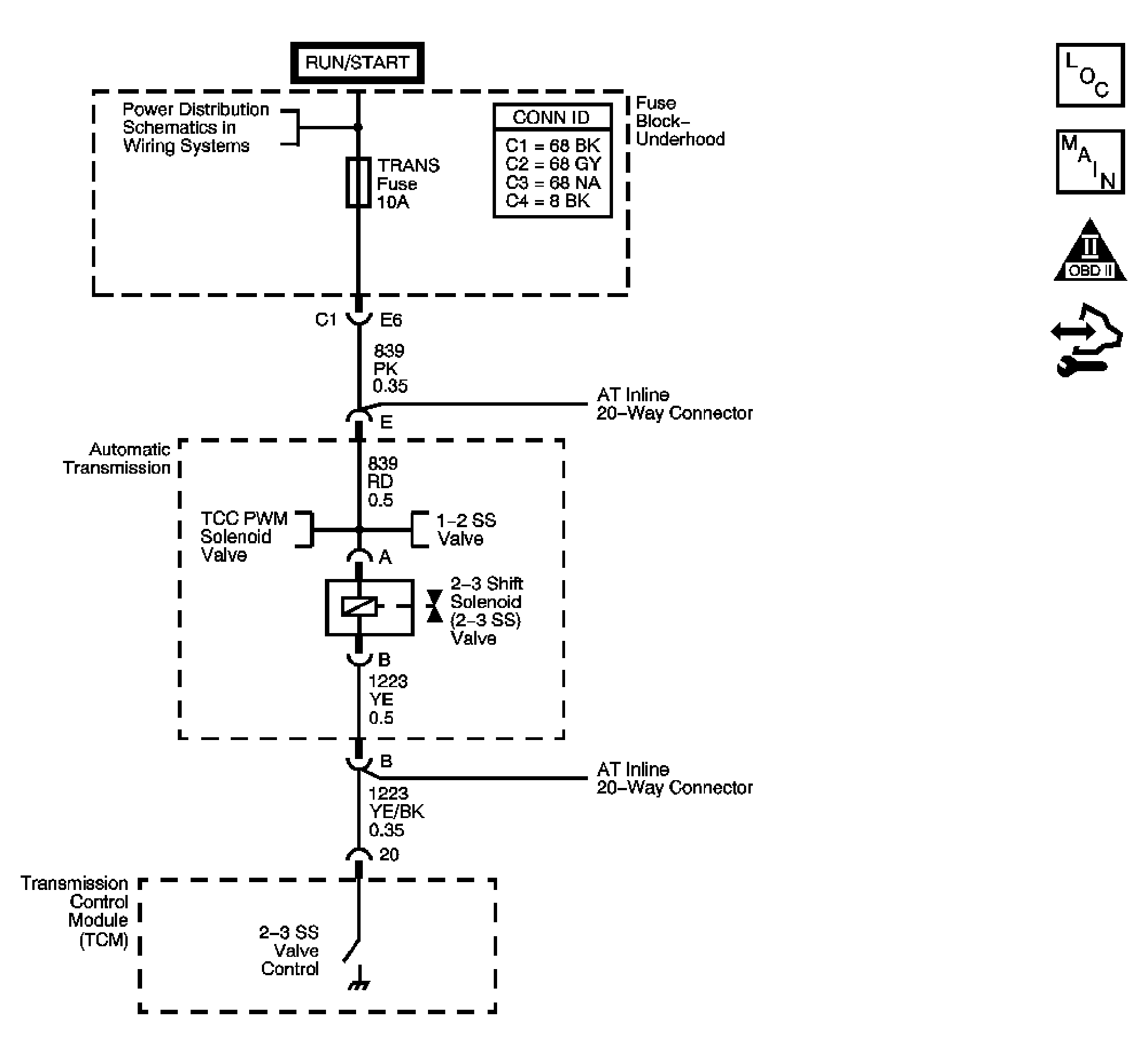

Fig 1: 2-3 Shift Solenoid (2-3 SS) Valve Schematic (3.6L)

GM1441864

Courtesy of GENERAL MOTORS CORP.
