DTC P0961 (3.6L): Notes

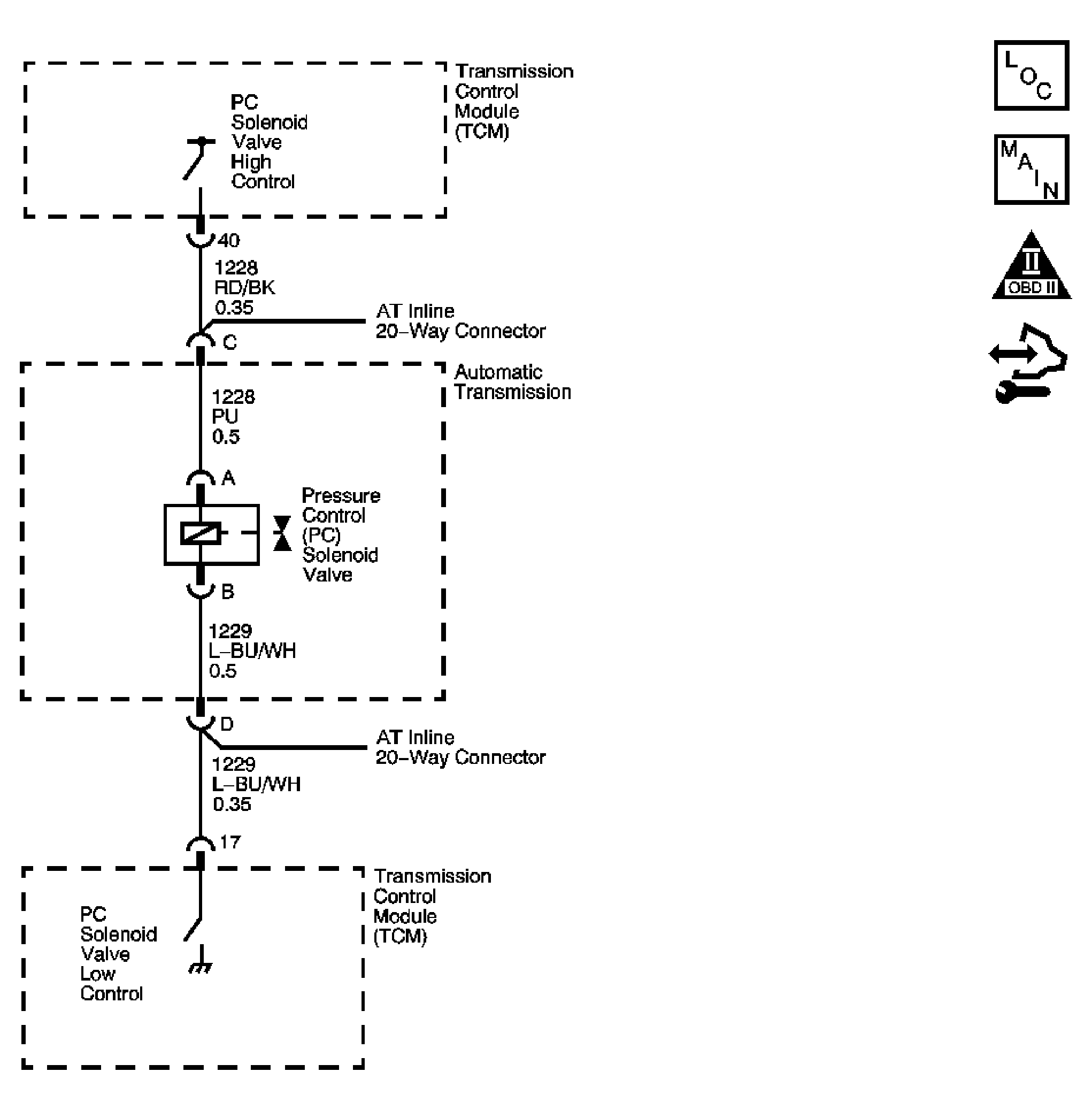

Fig 1: Pressure Control (PC) Solenoid Valve Schematic (3.6L)

GM1441856

Courtesy of GENERAL MOTORS CORP.
