Home >> Pontiac >> 2005 >> Aztek Base, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle (DTC P0742 To DTC P1819) >> DTC Tests >> DTC P0843 (3.6L) >> Notes

DTC P0843 (3.6L): Notes

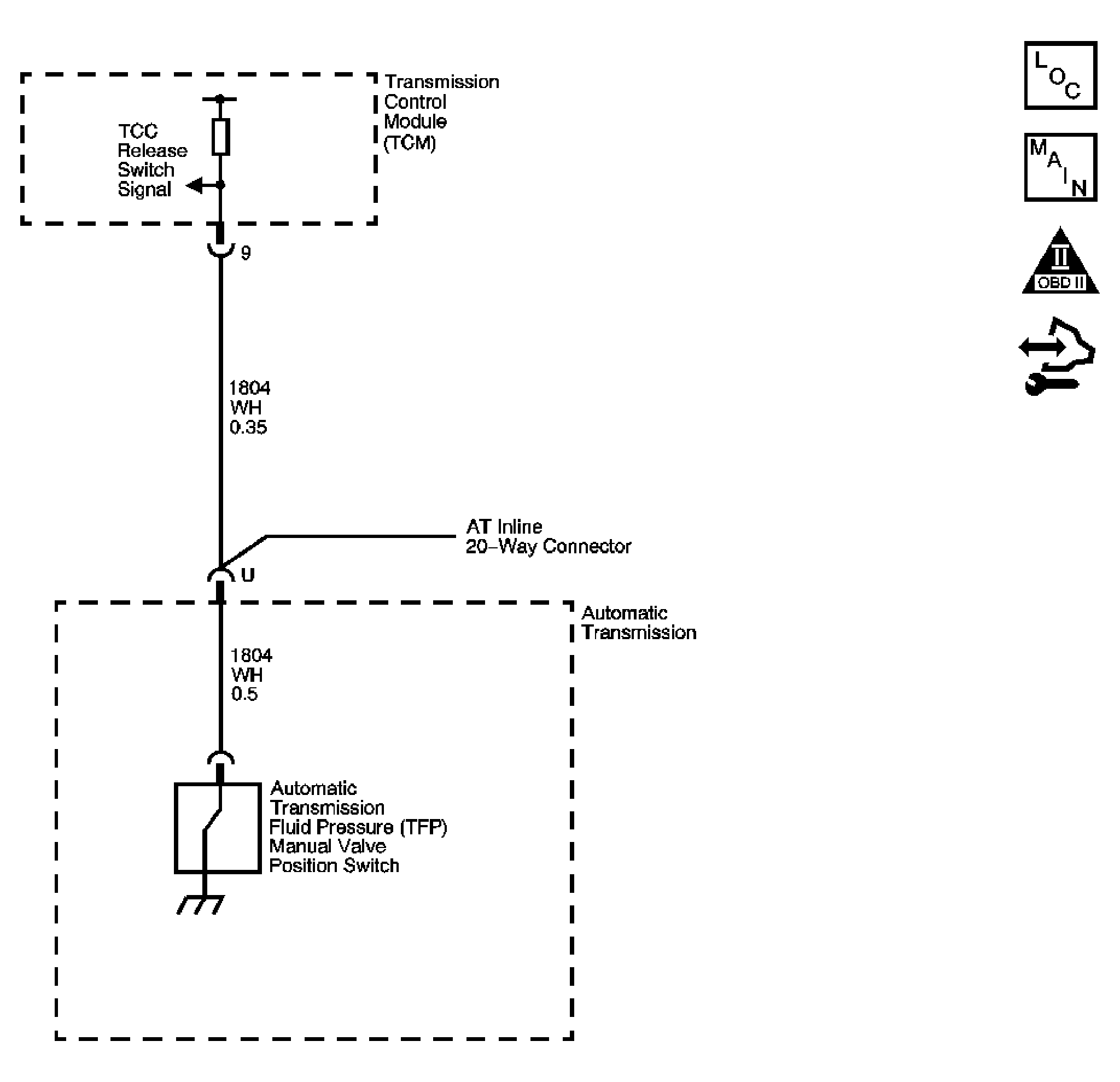

Fig 1: TCC Release Switch Schematic (3.6L)

GM1550031

Courtesy of GENERAL MOTORS CORP.
