Home >> Pontiac >> 2005 >> Aztek Base, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle (DTC P0742 To DTC P1819) >> DTC Tests >> DTC P0752 (3.4L) >> Notes

DTC P0752 (3.4L): Notes

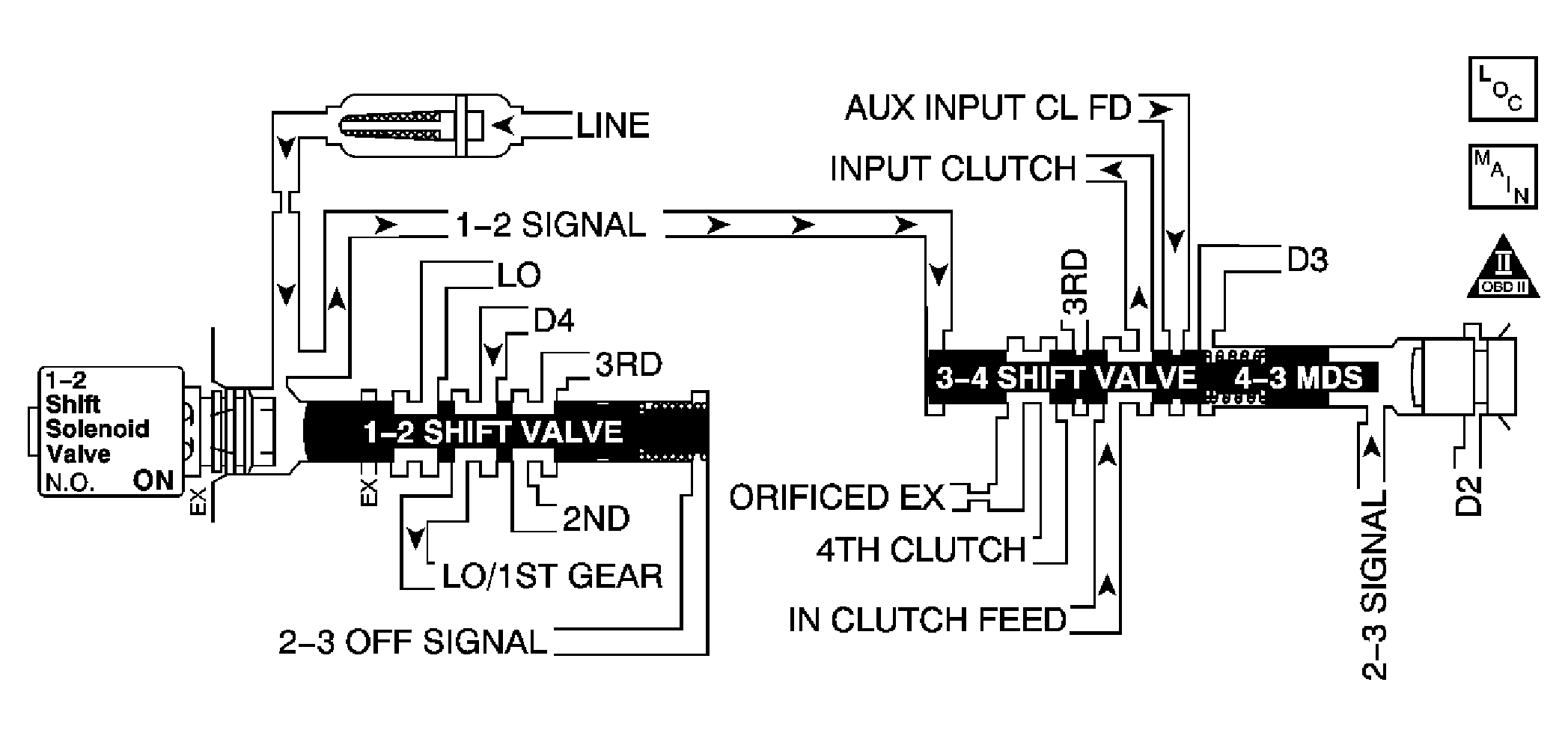

Fig 1: 1-2 Shift Solenoid (1-2 SS) Valve Fluid Diagram

GM1201772

Courtesy of GENERAL MOTORS CORP.
