Automatic Level Control Suspension Schematics

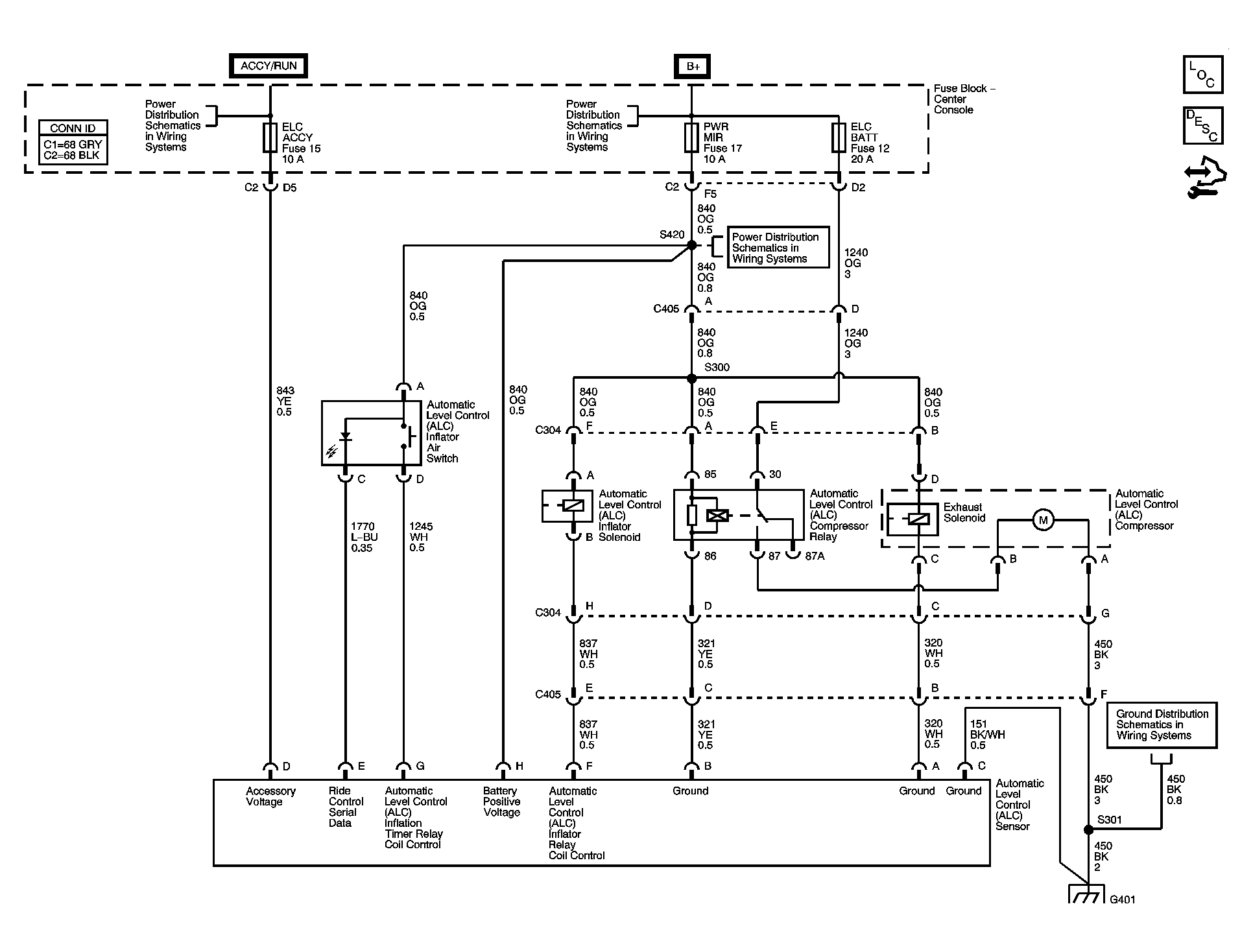

Fig 1: Automatic Level Control Suspension

GM1499987

Courtesy of GENERAL MOTORS CORP.
