Body Rear End Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

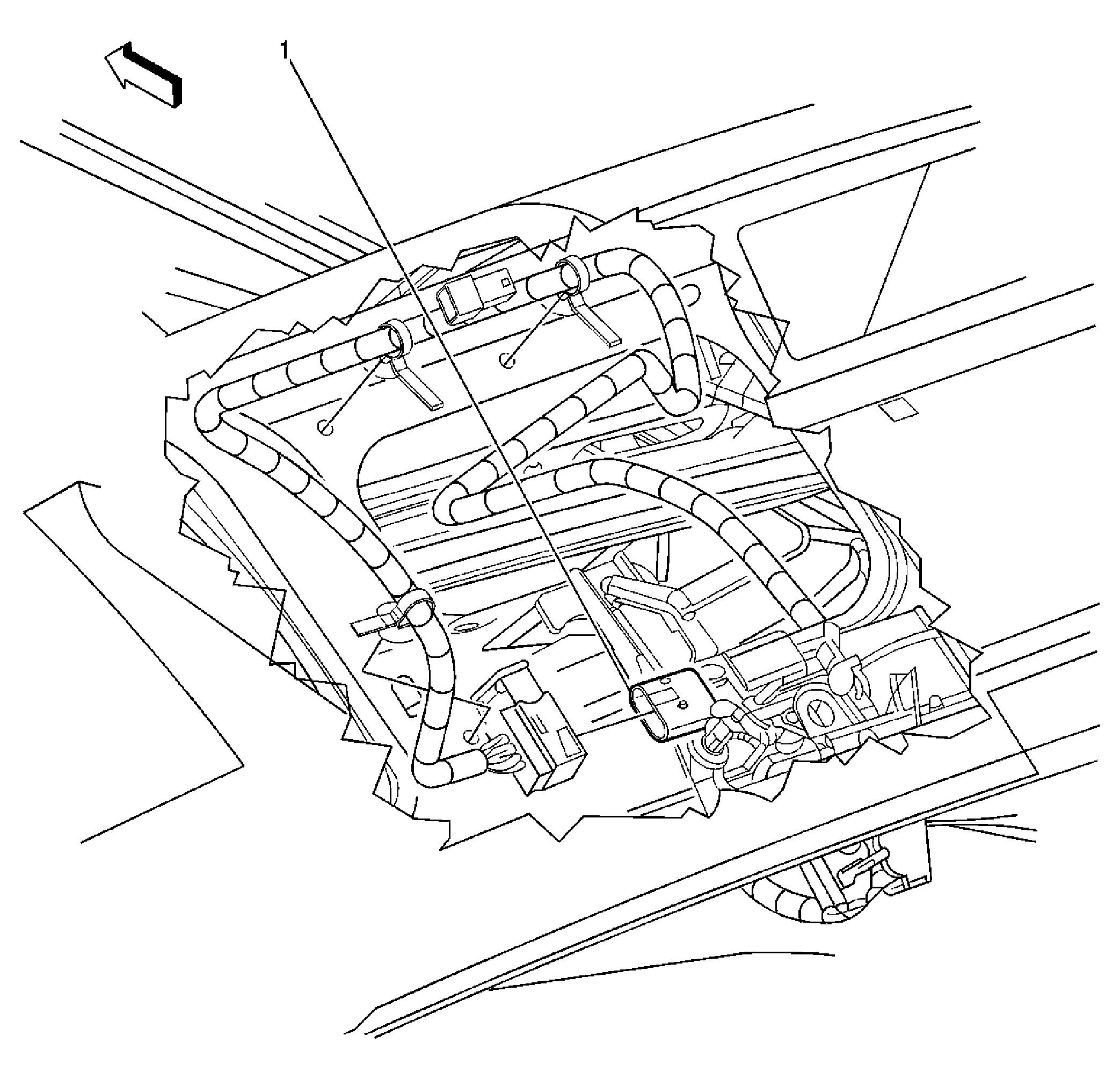

Fig 1: Rear Compartment Lid Component Views
GM1205268Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Latch
