Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the assist handle covers using a small flat bladed tool.
    2. Fig 1: Removing Assist Handle Screws
    GM678337Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws from the assist handle.
  3. Remove the assist handle.
    4. Fig 2: Removing Assist Handle
    GM678338Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The side rail lamp base plate plastic retainers might drop out. Note the location of the retainers.
  4. Remove the side rail lamp base plate.
    5. Fig 3: Side Rail Lamp
    GM678343Courtesy of GENERAL MOTORS CORP.
  5. Pull the service loop loose from the glue.
  6. Disconnect the electrical connector from the side rail lamp.
  7. Remove the side rail lamp socket from the base plate by sliding off.

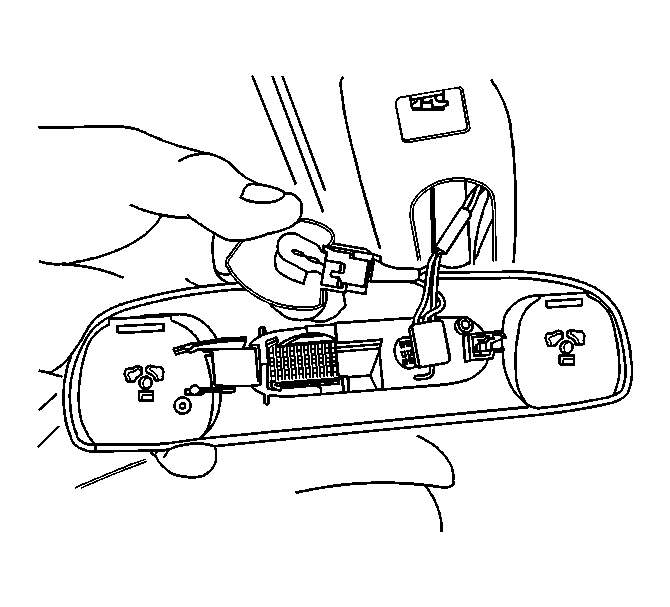

    8. Fig 4: Removing Rail Lamp Socket
    GM678340Courtesy of GENERAL MOTORS CORP.
    Fig 5: Removing Rail Lamp Bulb
    GM678342Courtesy of GENERAL MOTORS CORP.
  8. Remove the bulb if necessary.
