Starting and Charging Schematics

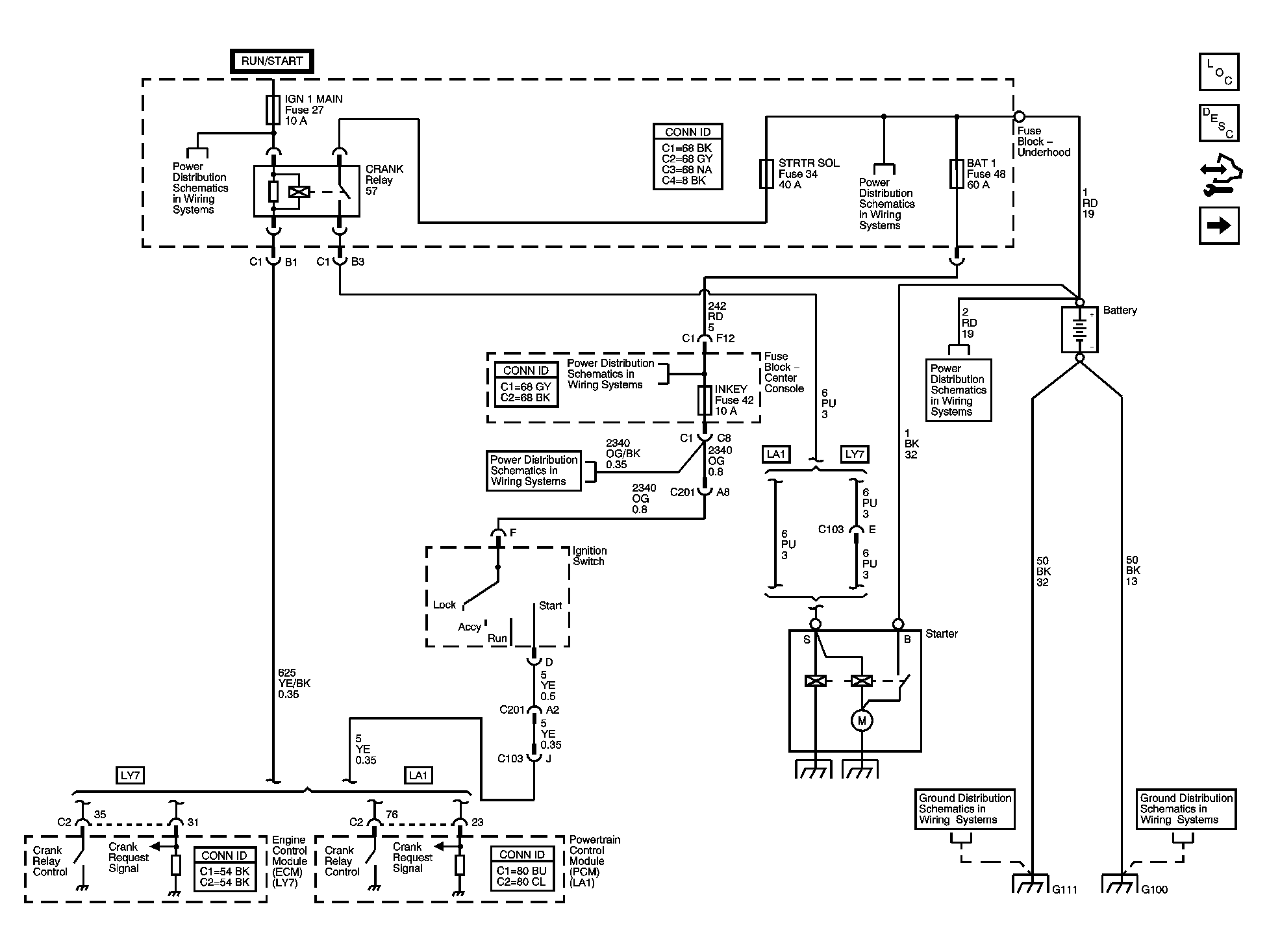

Fig 1: Engine Cranking

GM1499996

Courtesy of GENERAL MOTORS CORP.

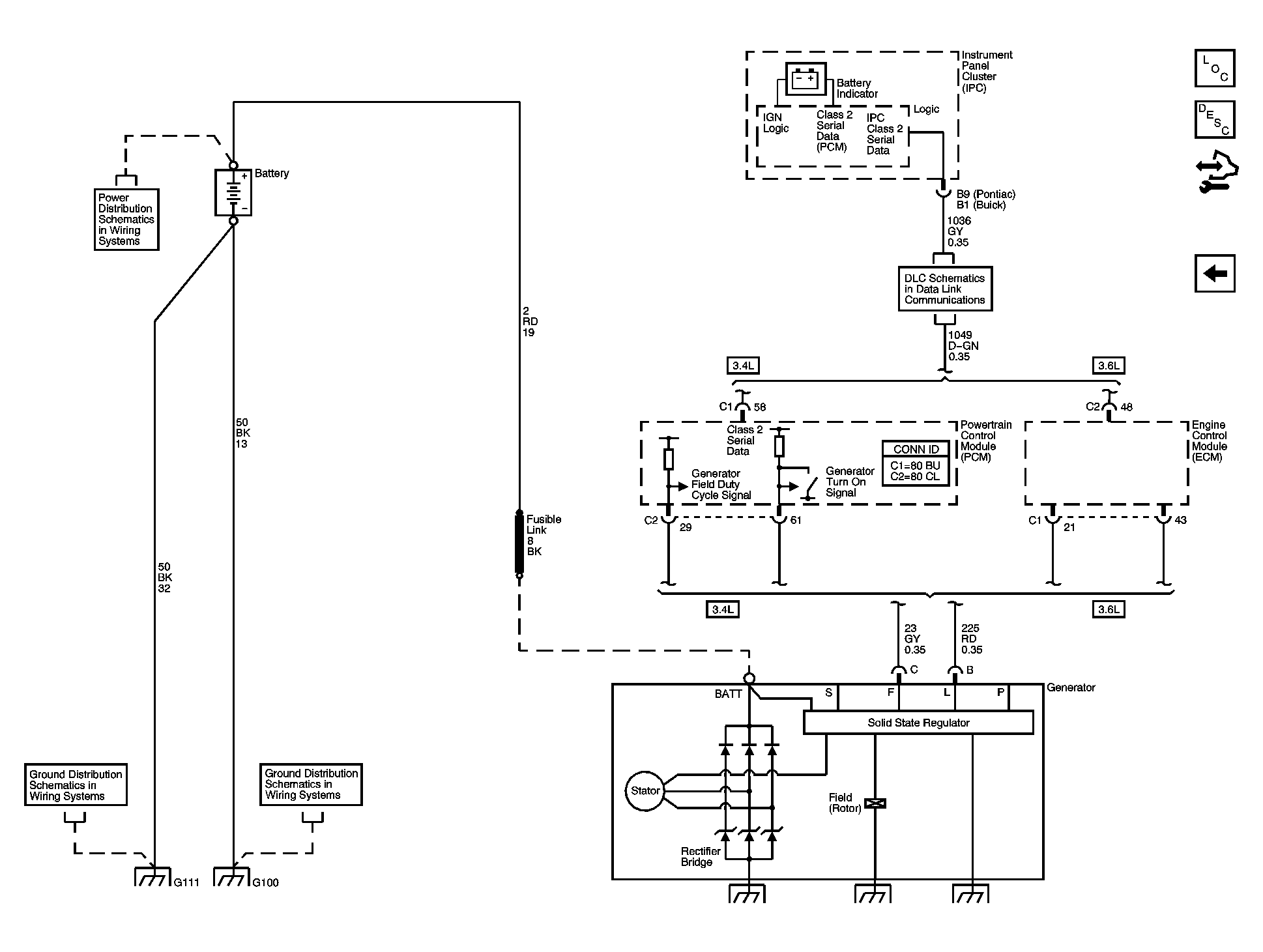

Fig 2: Charging Control, Indicator

GM1499559

Courtesy of GENERAL MOTORS CORP.
