Driver Seat Schematics

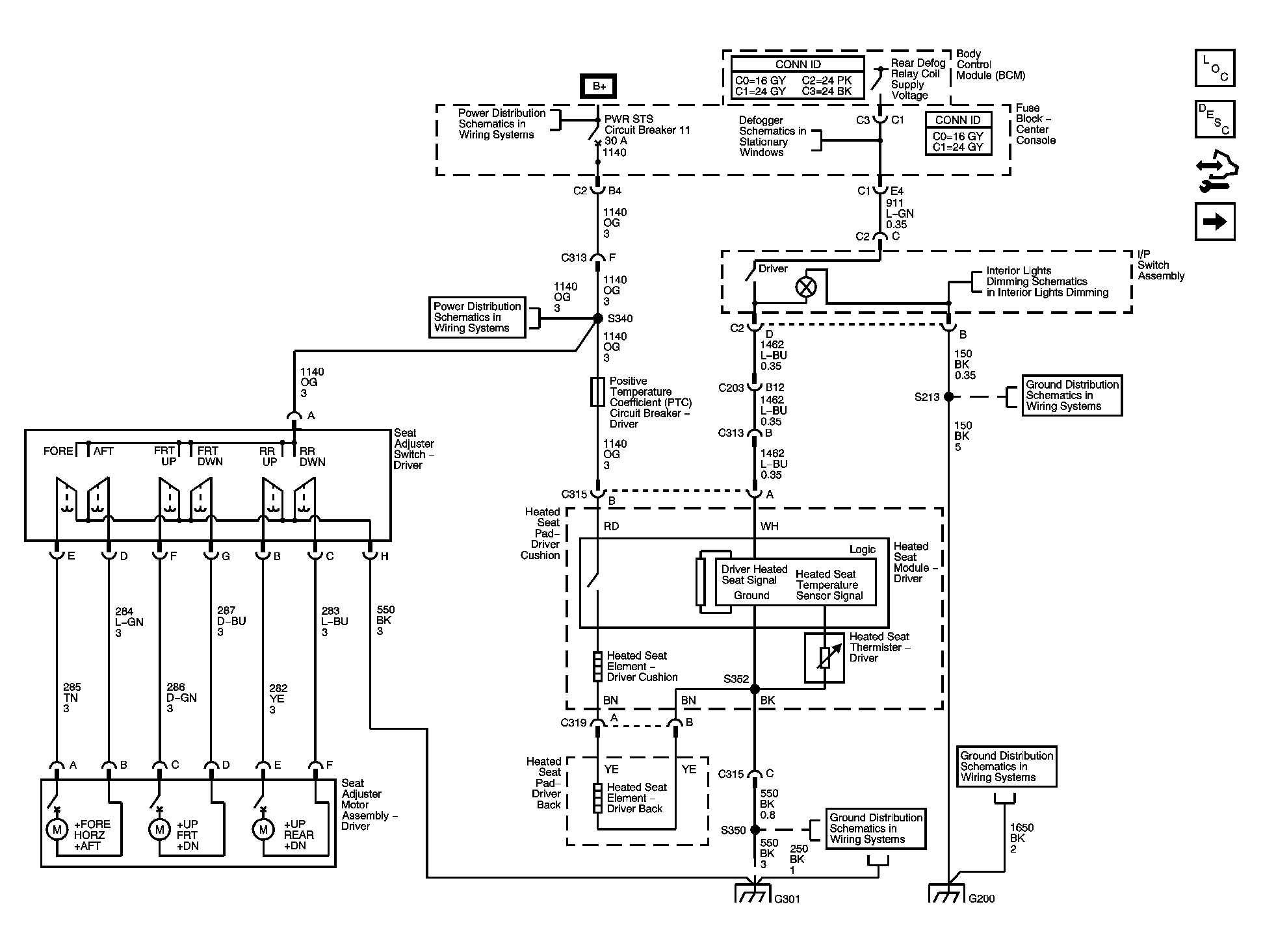

Fig 1: Driver Power and Heated Seat

GM1501066

Courtesy of GENERAL MOTORS CORP.

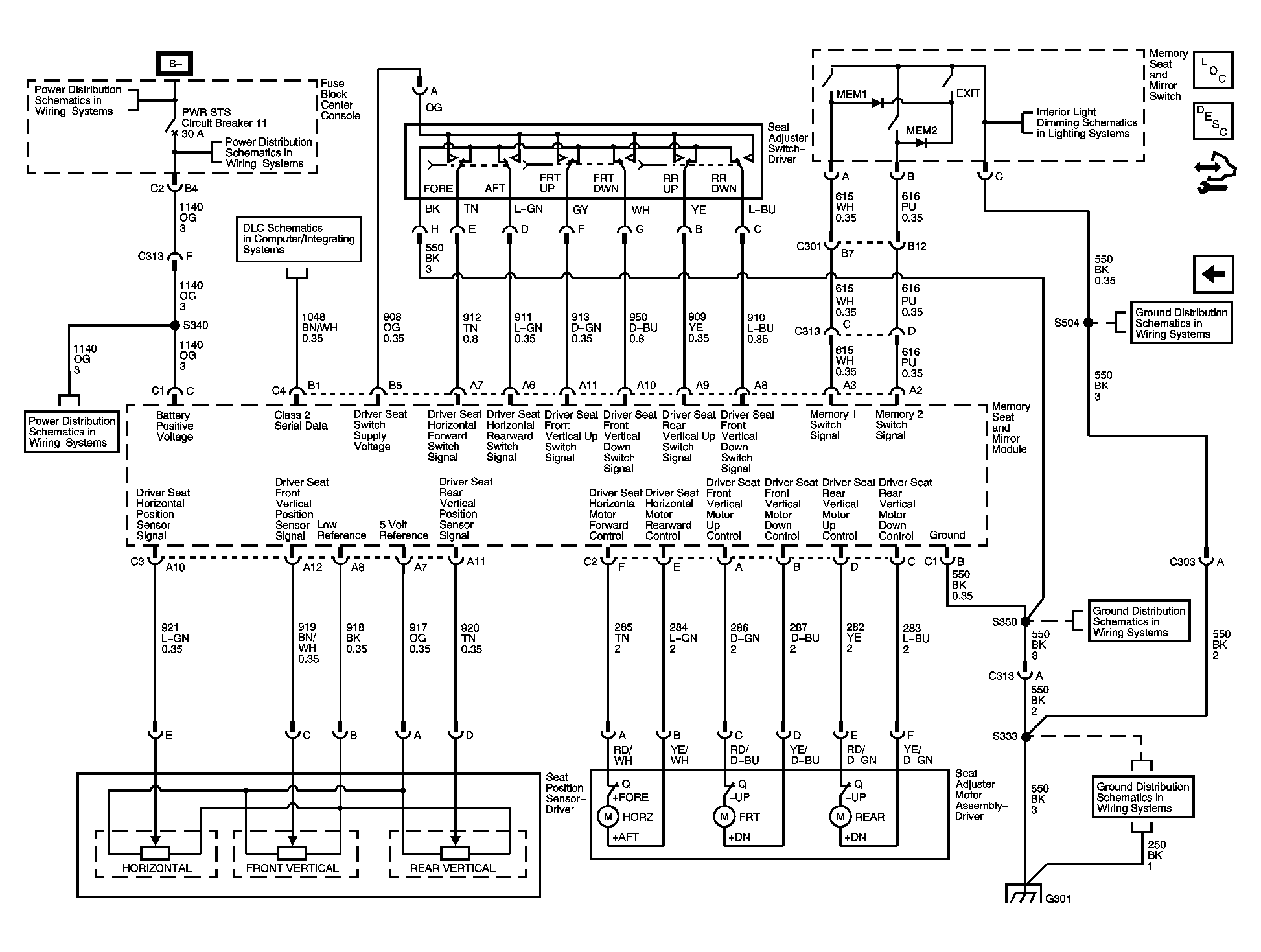

Fig 2: Memory Seat

GM1501071

Courtesy of GENERAL MOTORS CORP.
