WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

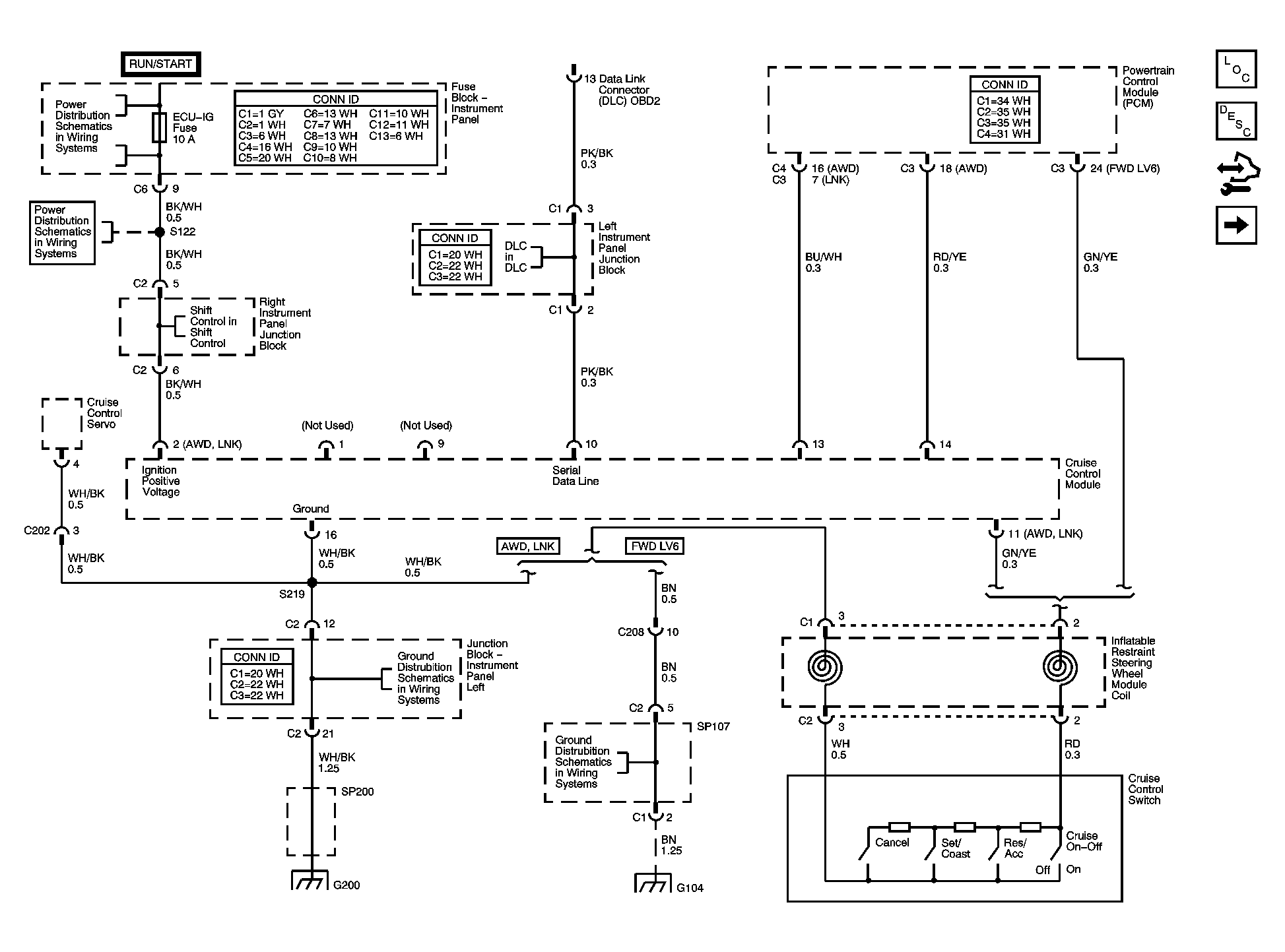

Fig 1: Cruise Control Module and Switch Schematic
Courtesy of GENERAL MOTORS CORP.

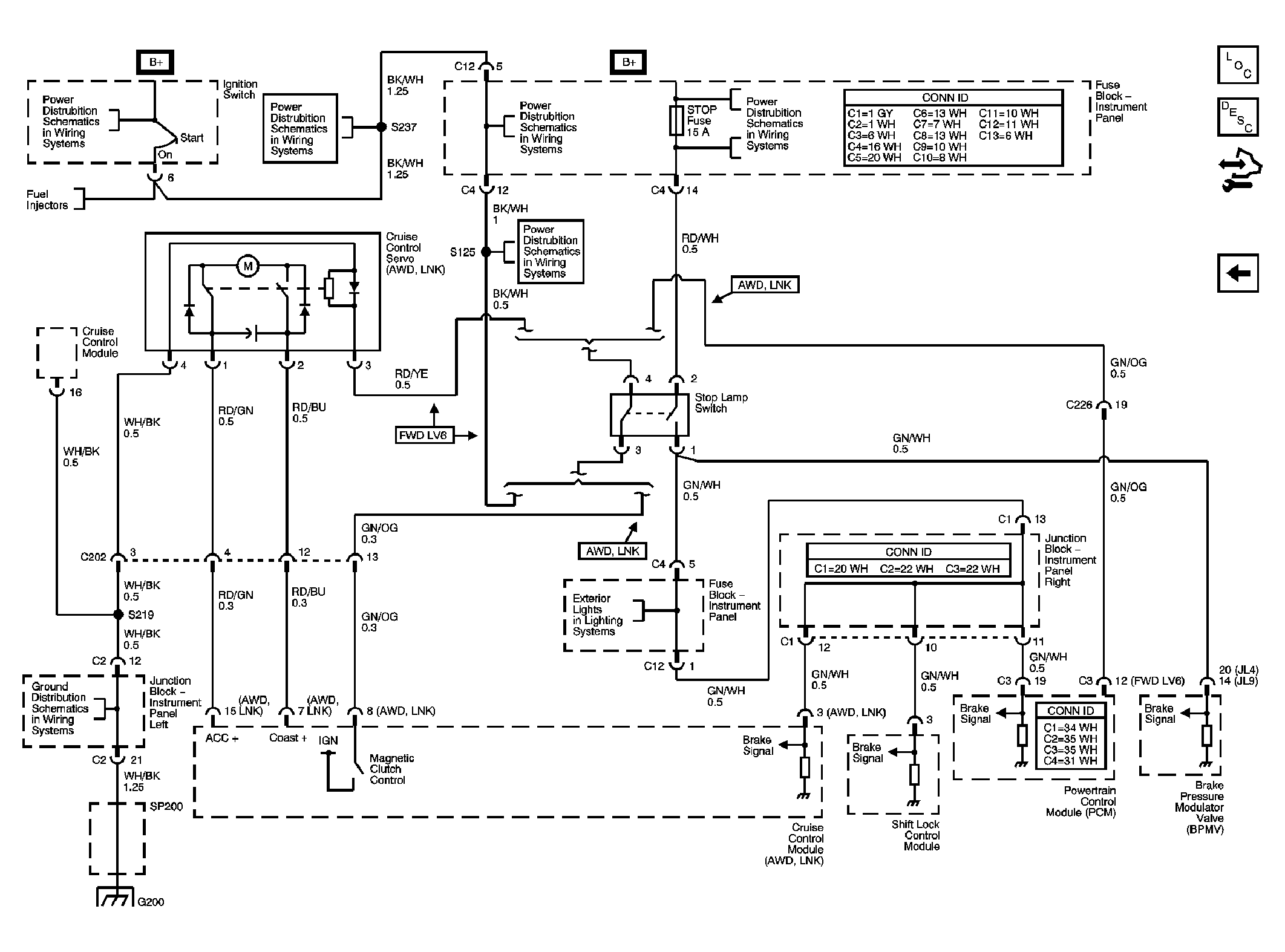

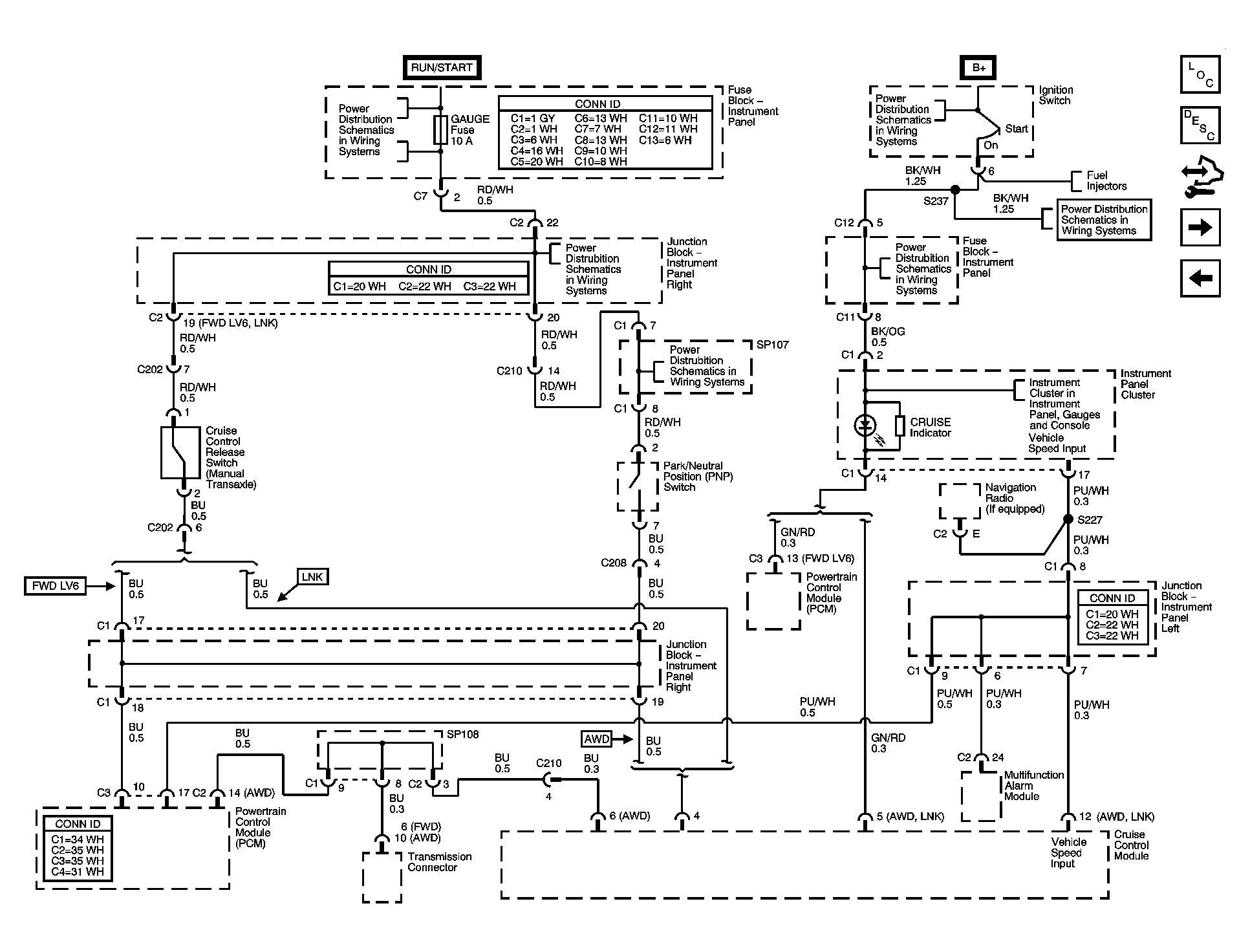

Fig 2: Cruise Control Module, Cruise Control Release Switch, Cruise Indicator Schematic
