Data Link Connector (DLC) Schematics

WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

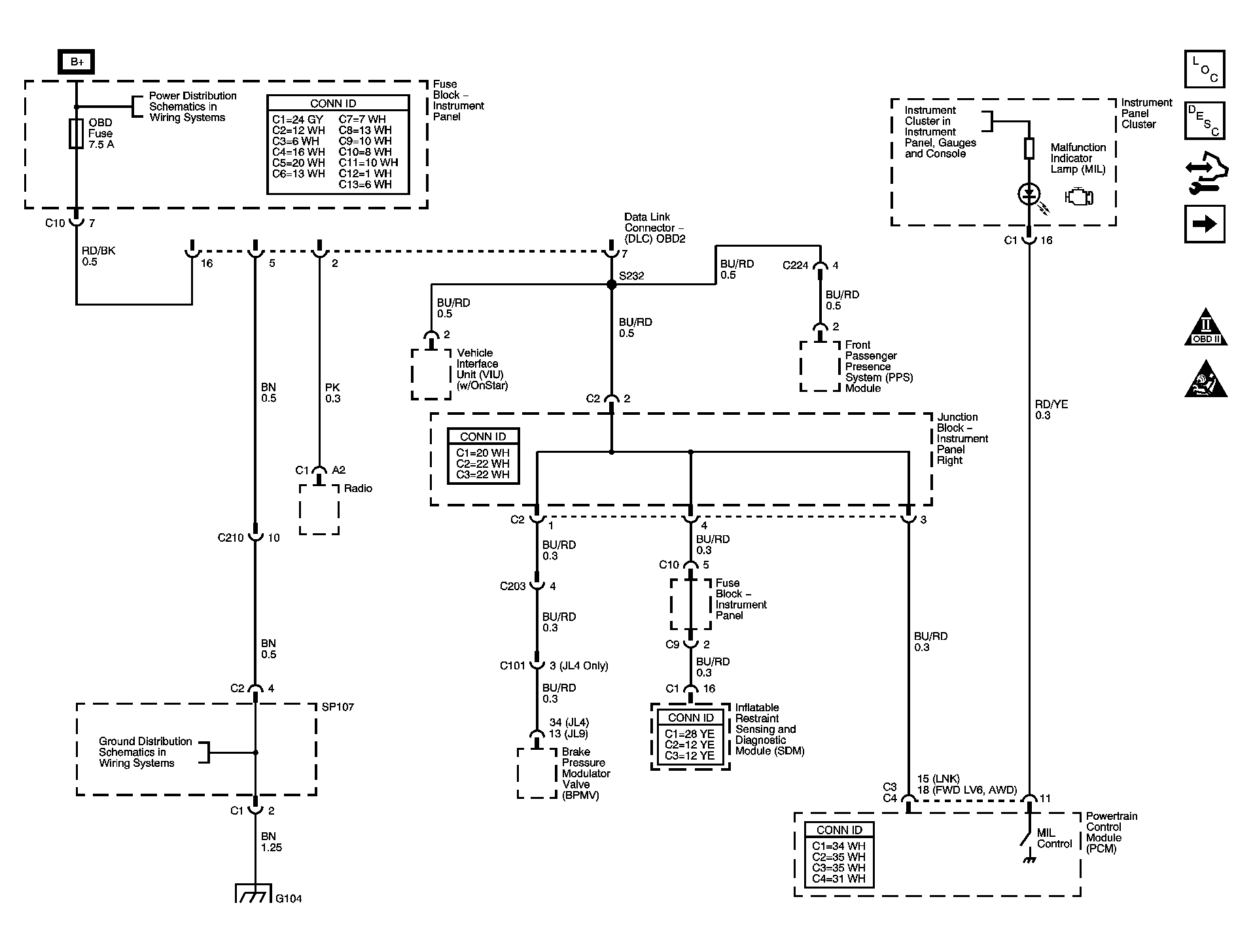

Fig 1: Data Link Connector Schematic - 1 of 3
GM1424595Courtesy of GENERAL MOTORS CORP.

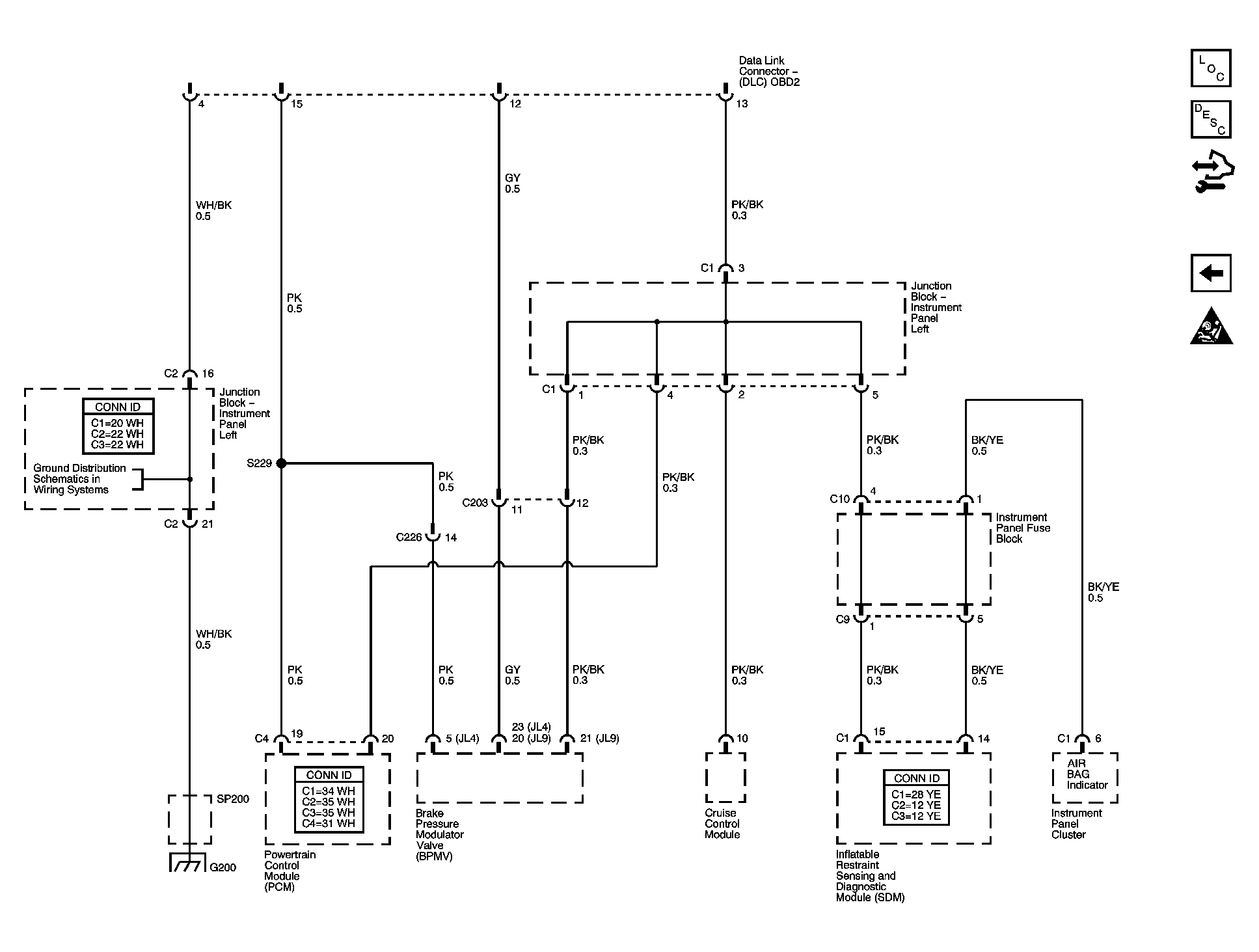

Fig 2: Data Link Connector Schematic - 2 of 3
GM1422199Courtesy of GENERAL MOTORS CORP.
Fig 3: Data Link Connector Schematic - 3 of 3
GM1424596Courtesy of GENERAL MOTORS CORP.
