Power Window Schematics

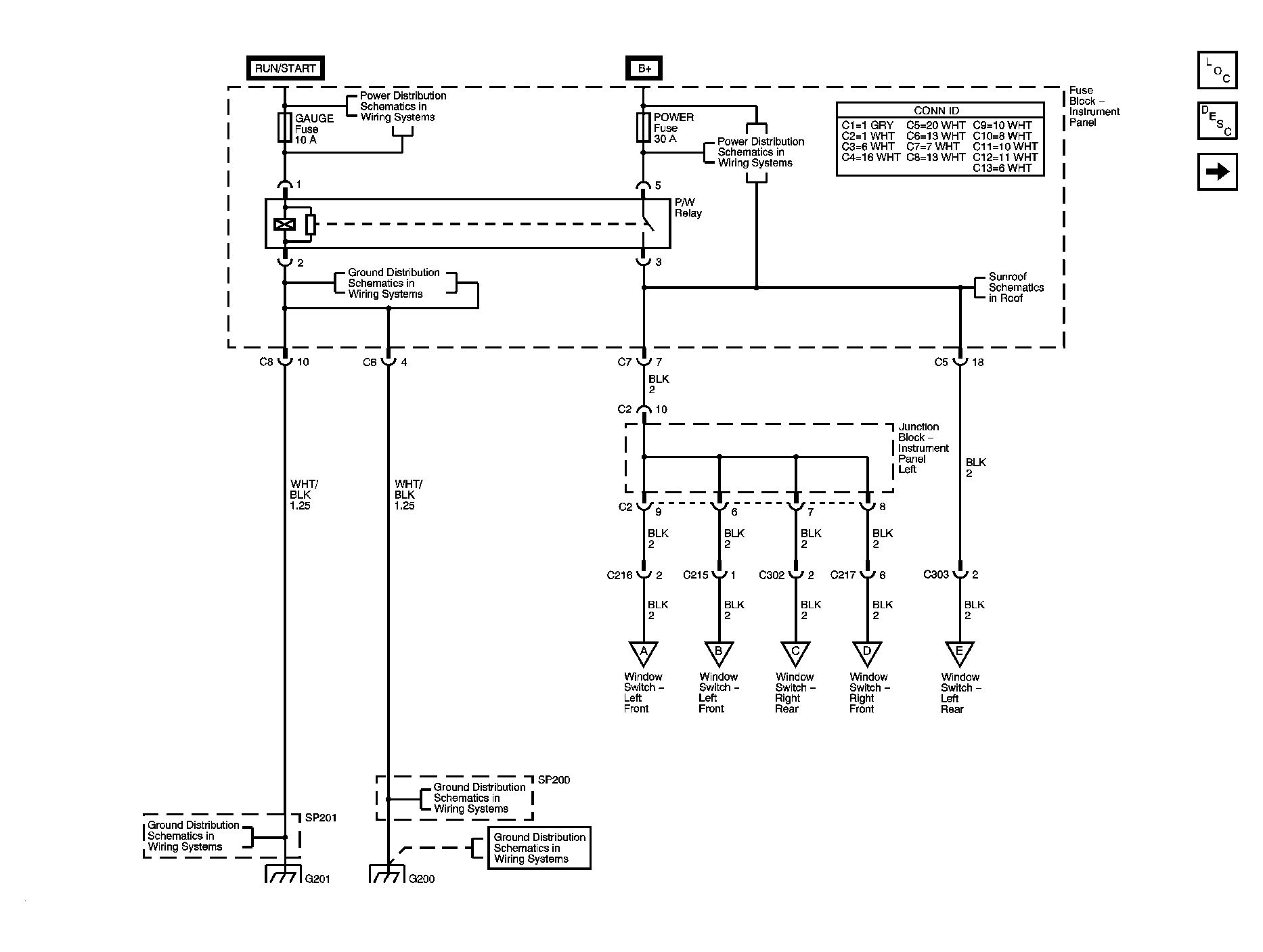

Fig 1: Power Windows Schematic (1 of 2)

GM785630

Courtesy of GENERAL MOTORS CORP.

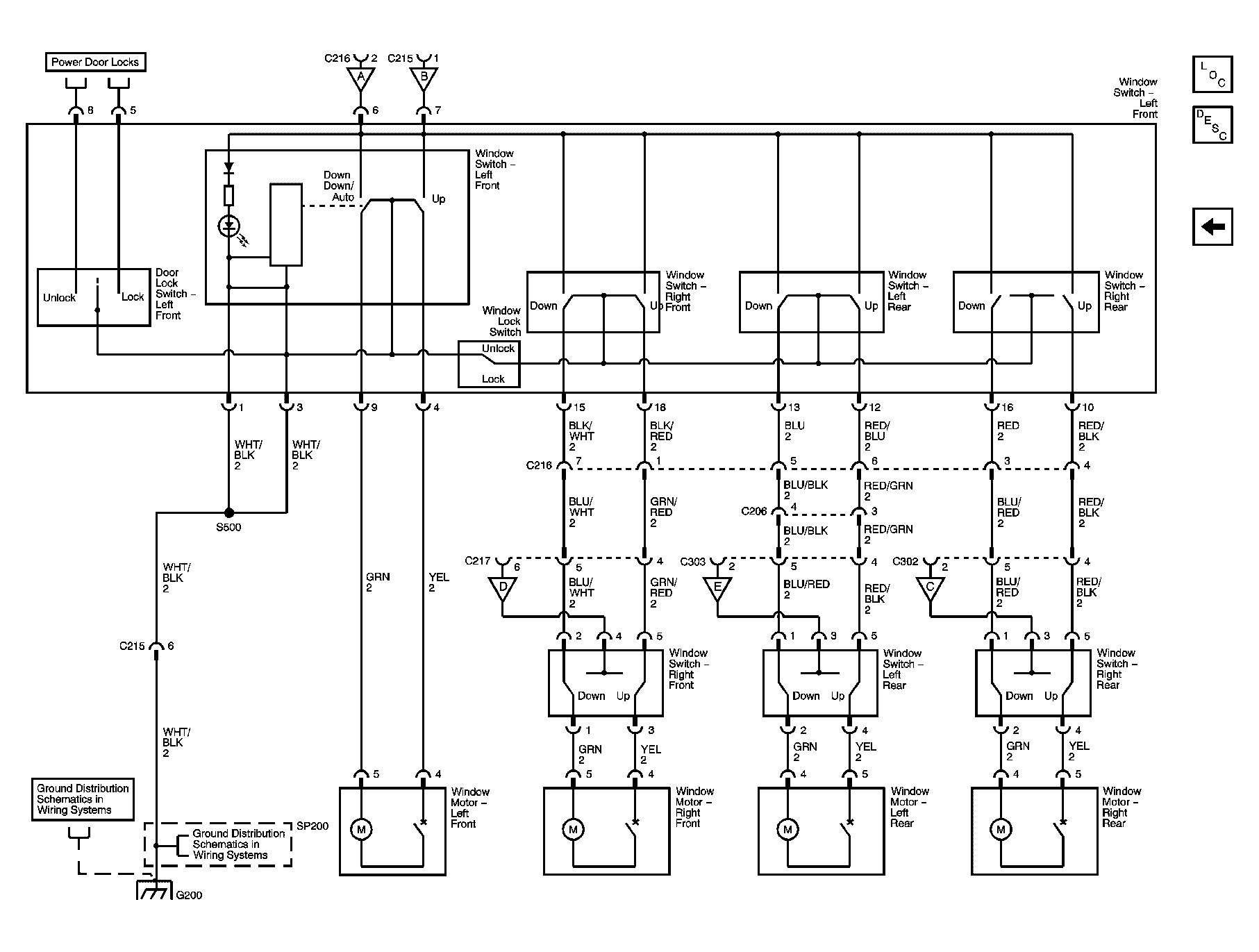

Fig 2: Power Windows Schematic (2 of 2)

GM785631

Courtesy of GENERAL MOTORS CORP.
