Door Lock/Indicator Schematics

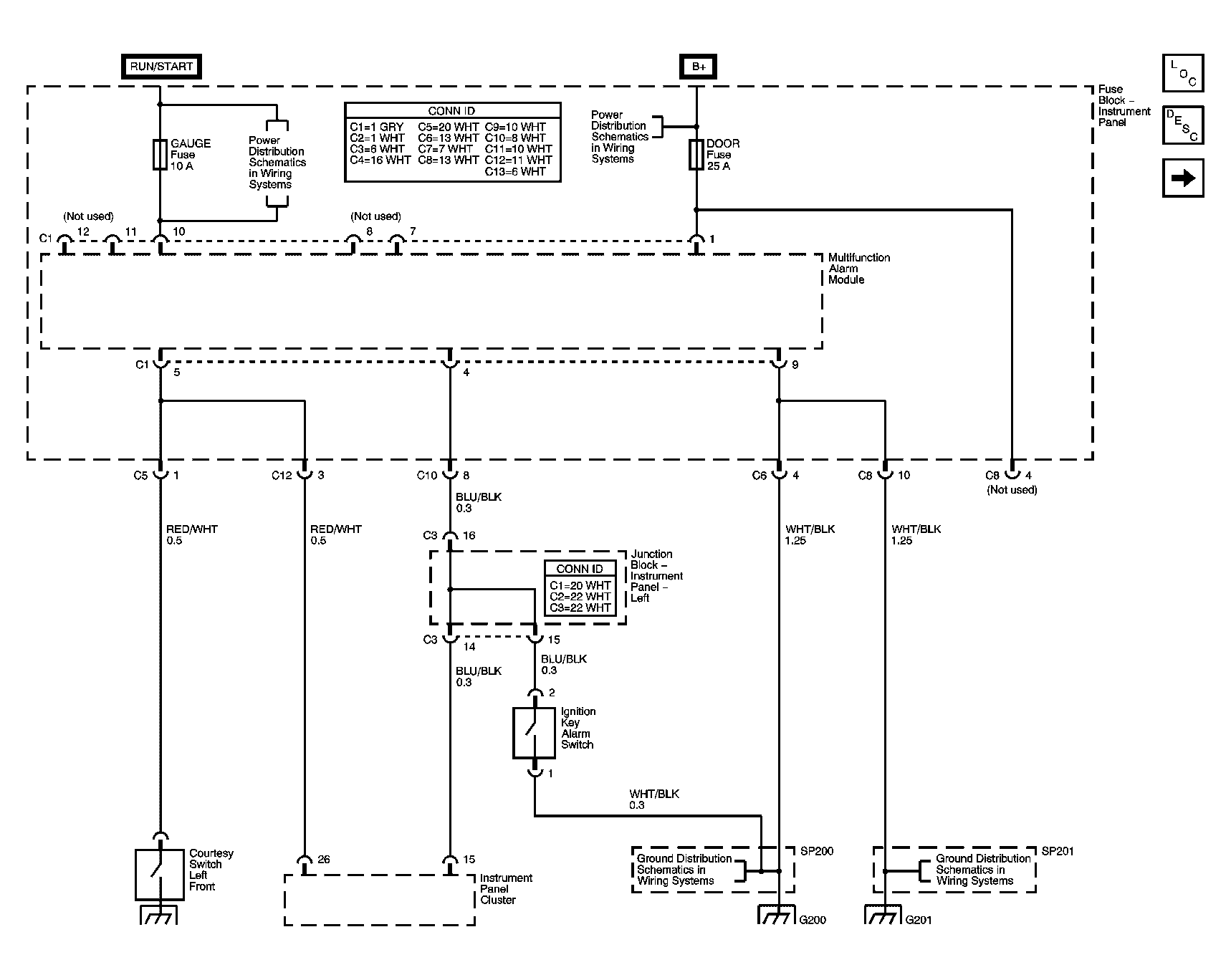

Fig 1: Gauge and Door Fuse, Multifunction Alarm Module Schematic
GM785633Courtesy of GENERAL MOTORS CORP.
Fig 2: Multifunction Alarm Module, Rear Door Lock, Glass Hatch and Tailgate Actuators Schematic
GM864639Courtesy of GENERAL MOTORS CORP.
Fig 3: Door Lock Switches and Front Door Lock Actuators Schematic
GM785639Courtesy of GENERAL MOTORS CORP.
Fig 4: Multifunction Alarm Module and Courtesy Switches Schematic
GM785640Courtesy of GENERAL MOTORS CORP.
