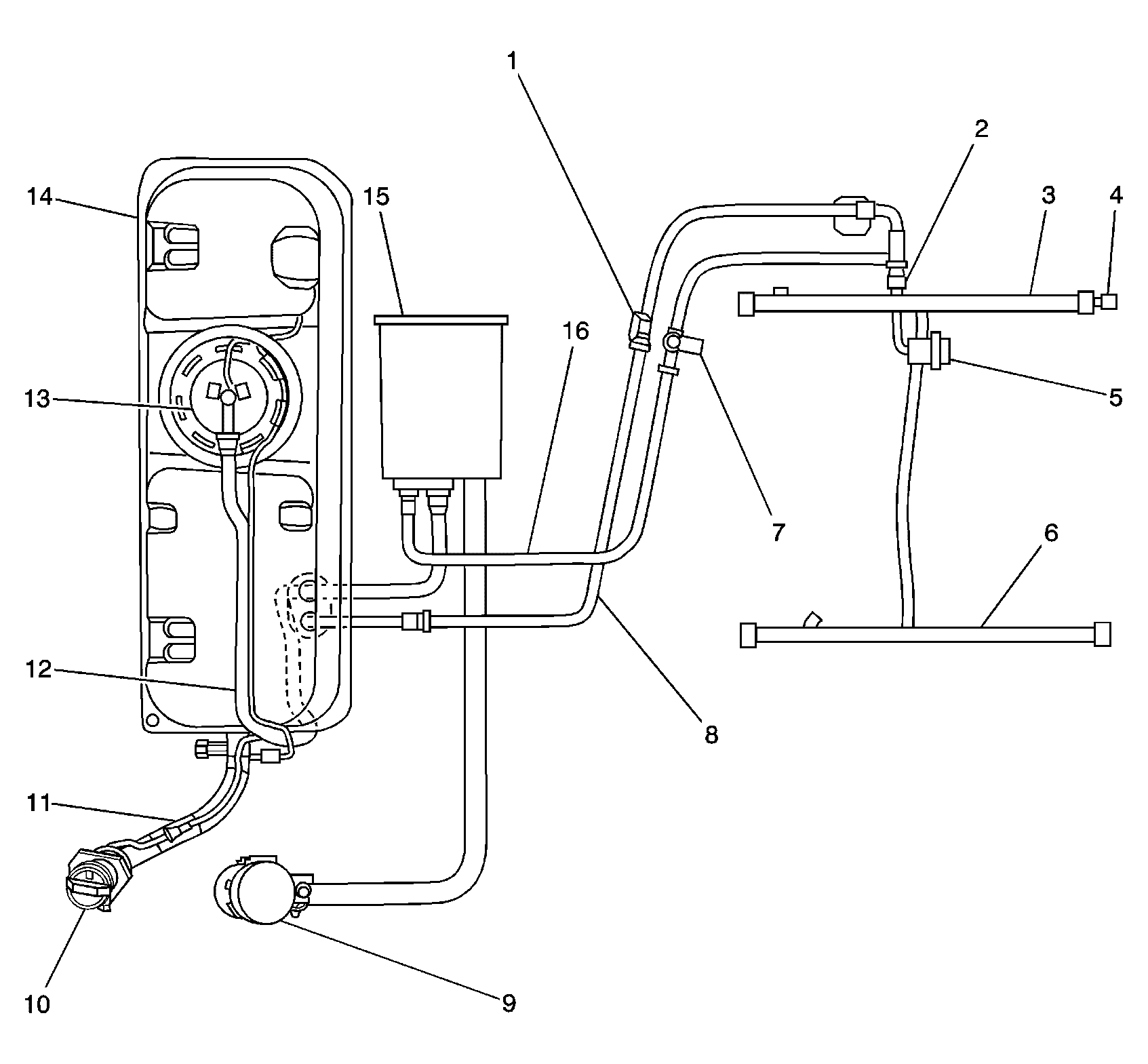

Fuel Hose/Pipes Routing Diagram
| Callout | Component Name |
|---|---|
| 1 | Quick Connect Fitting |
| 2 | Quick Connect Fitting |
| 3 | Fuel Rail Bank 1 |
| 4 | Fuel Pressure Schrader Valve |
| 5 | Fuel Pulse Dampener |
| 6 | Fuel Rail Bank 2 |
| 7 | EVAP Service Port |
| 8 | Fuel Feed Line to Fuel Rail |
| 9 | EVAP Canister Vent Solenoid |
| 10 | Fuel Fill Cap |
| 11 | Fuel Fill Pipe |
| 12 | Fuel Tank to EVAP Canister Vapor Vent Hose |
| 13 | Modular Fuel Pump and Sender Assembly |
| 14 | Fuel Tank |
| 15 | EVAP Canister |
| 16 | Vapor Purge Pipe to Purge Solenoid |
