Door Hardware Lubrication

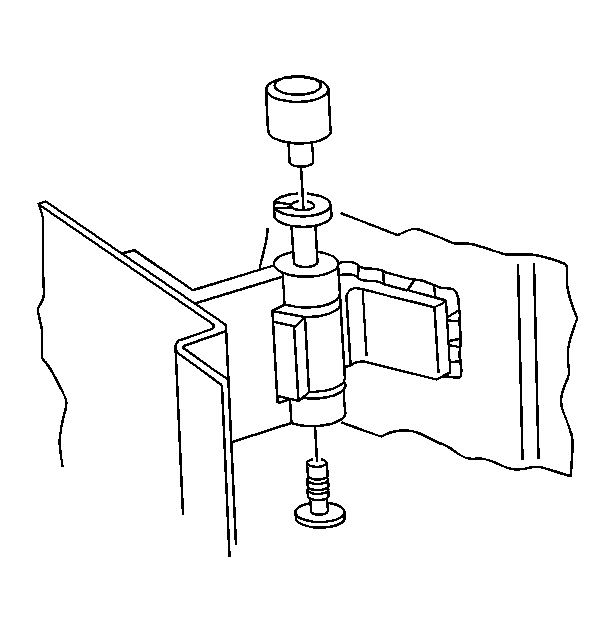

Fig 1: View Of Door Hardware

Courtesy of GENERAL MOTORS CORP.

The mechanical components of the door are lubricated during assembly. If additional lubrication is required to any door hardware mechanism, lubricate with Lubriplate Spray-Lube GM P/N 1052349 (Canadian P/N 992723), Lubriplate Auto-Lube GM P/N 1052196 (Canadian P/N 5264008), or equivalent.
