Installation Procedure

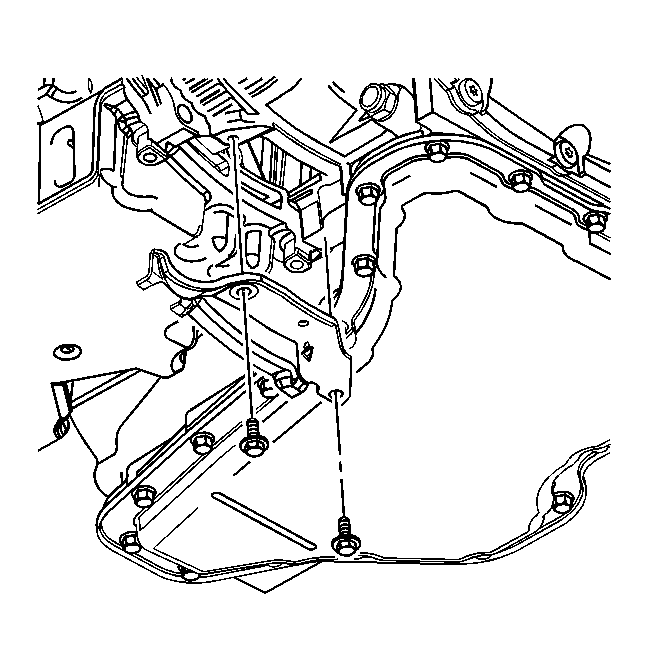

    Fig 1: Locating Torque Converter Cover Bolts (LY7)
    GM1409587Courtesy of GENERAL MOTORS CORP.
  1. Install the torque converter cover.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the torque converter cover bolts.

    Tighten:  Tighten the bolts to 8 N.m (71 lb in).

  3. Lower the vehicle.
