Inline Harness Connector End Views: C305

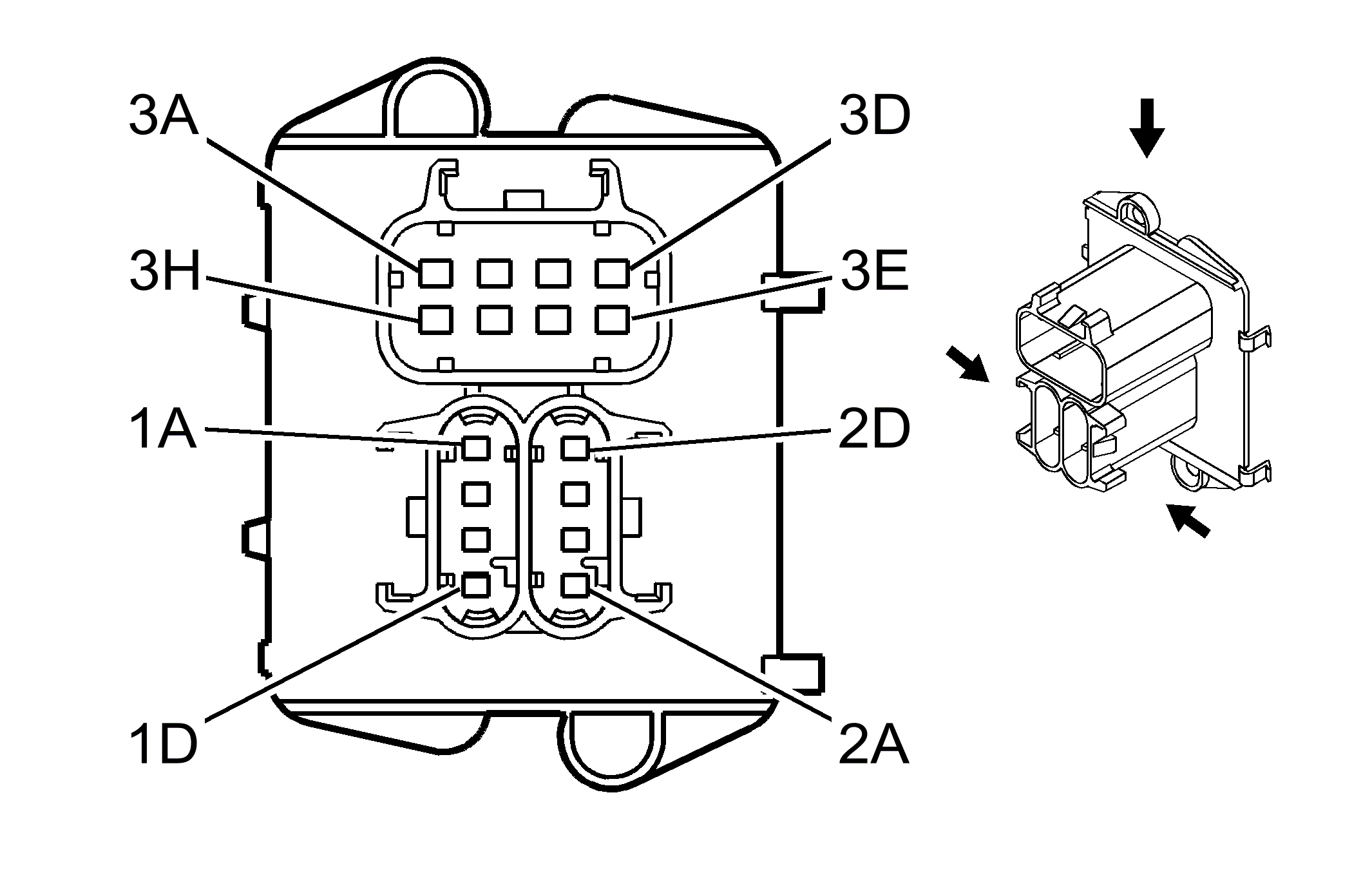

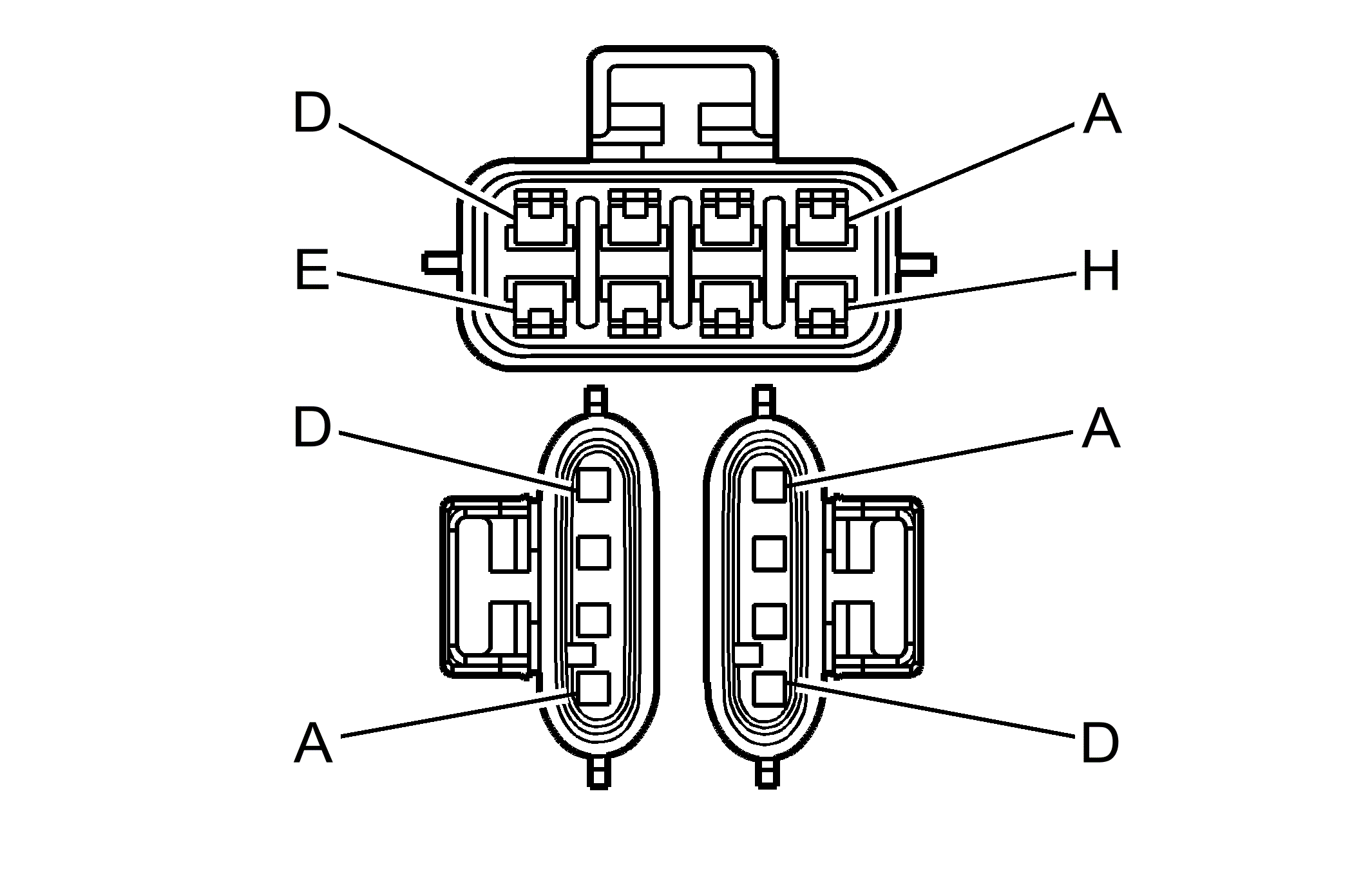

C305 Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12146439 4-Way F 150 Series (LT GRY) 12162144 4-Way F Metri-Pack 150 Series Sealed (BLK) 12176334 8-Way F Metri-Pack 280 Series Flexlock Sealed (WHT)		Connector Part Information		15326715 16-Way M Metri-Pack (LT GRY)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BRN	882	Right Rear Wheel Speed Sensor Signal (JM4/JL9)	1A	BRN	882	Right Rear Wheel Speed Sensor Signal (JM4/JL9)
B	WHT	883	Right Rear Wheel Speed Sensor Low Reference (JM4/JL9)	1B	WHT	883	Right Rear Wheel Speed Sensor Low Reference (JM4/JL9)
C	BLK	884	Left Rear Wheel Speed Sensor Signal (JM4/JL9)	1C	BLK	884	Left Rear Wheel Speed Sensor Signal (JM4/JL9)
D	RED	885	Left Rear Wheel Speed Sensor Low Reference (JM4/JL9)	1D	RED	885	Left Rear Wheel Speed Sensor Low Reference (JM4/JL9)
A	LT BLU	1296	Axle Actuator - Control (AWD&JM4/JL9)	2A	LT BLU	1296	Axle Actuator - Control (AWD&JM4/JL9)
B	PNK	1439	Ignition 1 Voltage	2B	PNK	1439	Ignition 1 Voltage
C	BLK	550	Ground (JM4/JL9)	2C	BLK	550	Ground (JM4/JL9)
D	-	-	Not Used (JM4/JL9)	2D	-	-	Not Used (JM4/JL9)
A	BLK	250	Ground	3A	BLK	250	Ground
B	BLK/WHT	2759	Low Reference	3B	BLK	2759	Low Reference
C	GRY	120	Fuel Pump Supply Voltage	3C	GRY	120	Fuel Pump Supply Voltage
D	PPL	1589	Fuel Level Sensor Signal	3D	PPL/WHT	1589	Fuel Level Sensor Signal
E	DK GRN	890	Fuel Tank Pressure Sensor Signal	3E	DK GRN	890	Fuel Tank Pressure Sensor Signal
F	WHT	1310	EVAP Canister Vent Solenoid Control	3F	WHT	1310	EVAP Canister Vent Solenoid Control
G	ORN	4540	Battery Positive Voltage	3G	ORN	4540	Battery Positive Voltage
H	GRY/BLK	2709	5-Volt Reference	3H	GRY	2709	5-Volt Reference
