Inline Harness Connector End Views: C103

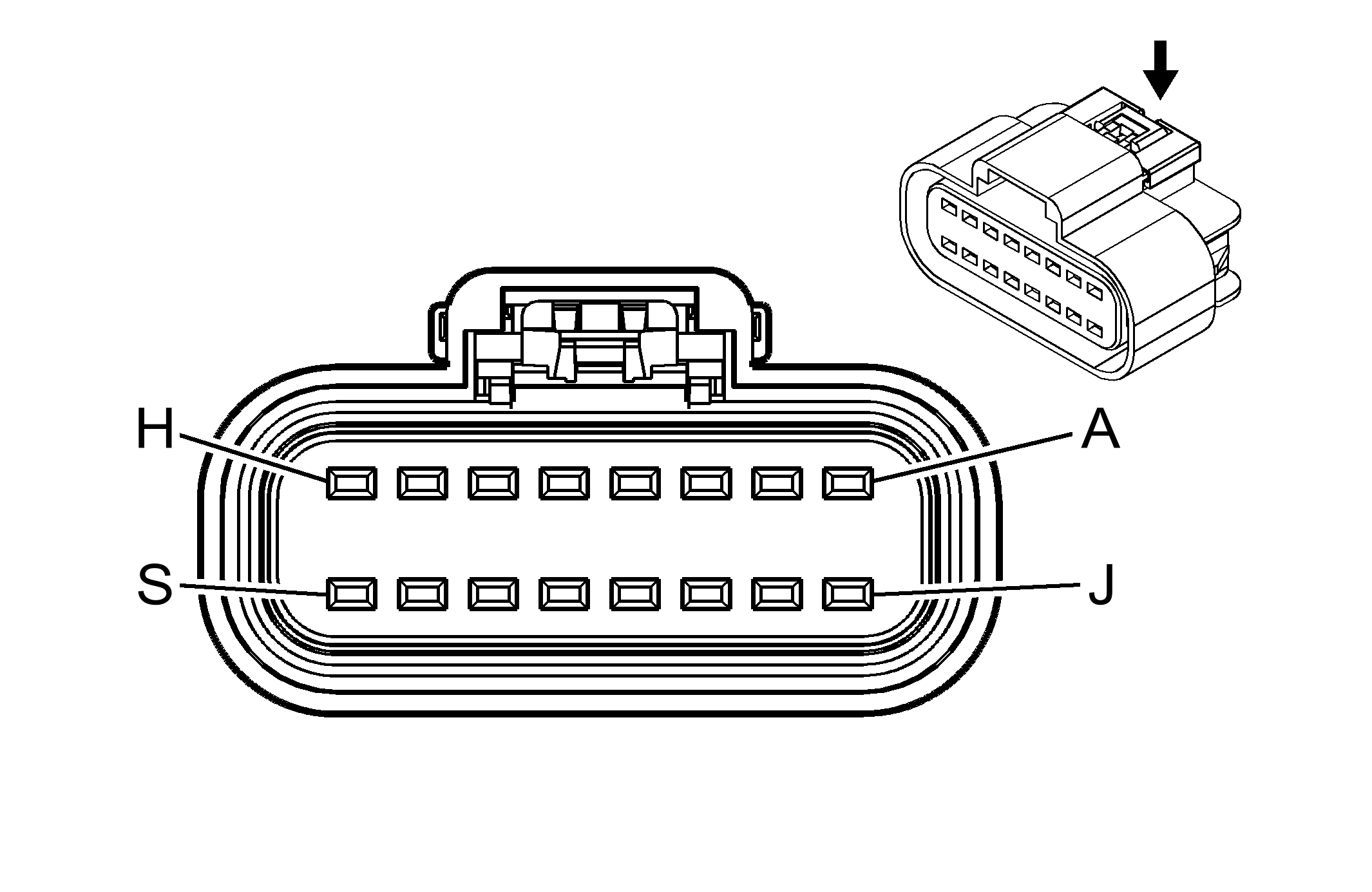

C103 Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326864 16-Way F 150 Series Sealed (BLK)		Connector Part Information		15326868 16-Way M 150 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	DK GRN	1049	PCM Class 2 Serial Data	A	DK GRN	1049	PCM Class 2 Serial Data
B	BLK	2759	Low Reference	B	BLK	2759	Low Reference
C	PPL	420	TCC Brake Switch/Cruise Control Release Signal (LA1)	C	PPL	420	TCC Brake Switch/Cruise Control Release Signal (LA1)
	WHT	17	Stop Lamp Switch Signal (LY7)		WHT	17	Stop Lamp Switch Signal (LY7)
D	BRN/WHT	419	MIL Control	D	BRN/WHT	419	MIL Control
E	DK GRN	890	Fuel Tank Pressure Sensor Signal	E	DK GRN	890	Fuel Tank Pressure Sensor Signal
F	WHT	1310	EVAP Canister Vent Solenoid Control	F	WHT	1310	EVAP Canister Vent Solenoid Control
G	DK GRN	389	Vehicle Speed Signal	G	DK GRN	389	Vehicle Speed Signal
H	BLK/WHT	451	Ground (LA1)	H	BLK/WHT	451	Ground (LA1)
	PPL	420	TCC Brake Switch/Cruise Control Release Signal (LY7)		PPL	420	TCC Brake Switch/Cruise Control Release Signal (LY7)
J	YEL	5	Crank Voltage	J	YEL	5	Crank Voltage
K	WHT	85	Cruise Control Engaged Signal (LA1)	K	WHT	85	Cruise Control Engaged Signal (LA1)
	DK BLU	84	Cruise Control Set/Coast Switch Signal (LY7)		DK BLU	84	Cruise Control Set/Coast Switch Signal (LY7)
L	DK GRN	500	Ignition 0 Voltage	L	DK GRN	500	Ignition 0 Voltage
M	GRY	397	Cruise Control On Switch Signal (LY7)	M	GRY	397	Cruise Control On Switch Signal (LY7)
N	PPL	1589	Fuel Level Sensor Signal	N	PPL/WHT	1589	Fuel Level Sensor Signal
P	GRY	2709	5-Volt Reference	P	GRY	2709	5-Volt Reference
R	DK GRN	83	Cruise Control Inhibit Signal (LA1)	R	DK GRN	83	Cruise Control Inhibit Signal (LA1)
	GRY/BLK	87	Cruise Control Resume/Accel Switch Signal (LY7)		GRY/BLK	87	Cruise Control Resume/Accel Switch Signal (LY7)
S	LT BLU	1296	Axle Actuator - Control (AWD)	S	LT BLU	1296	Axle Actuator - Control
