Routing Illustrations

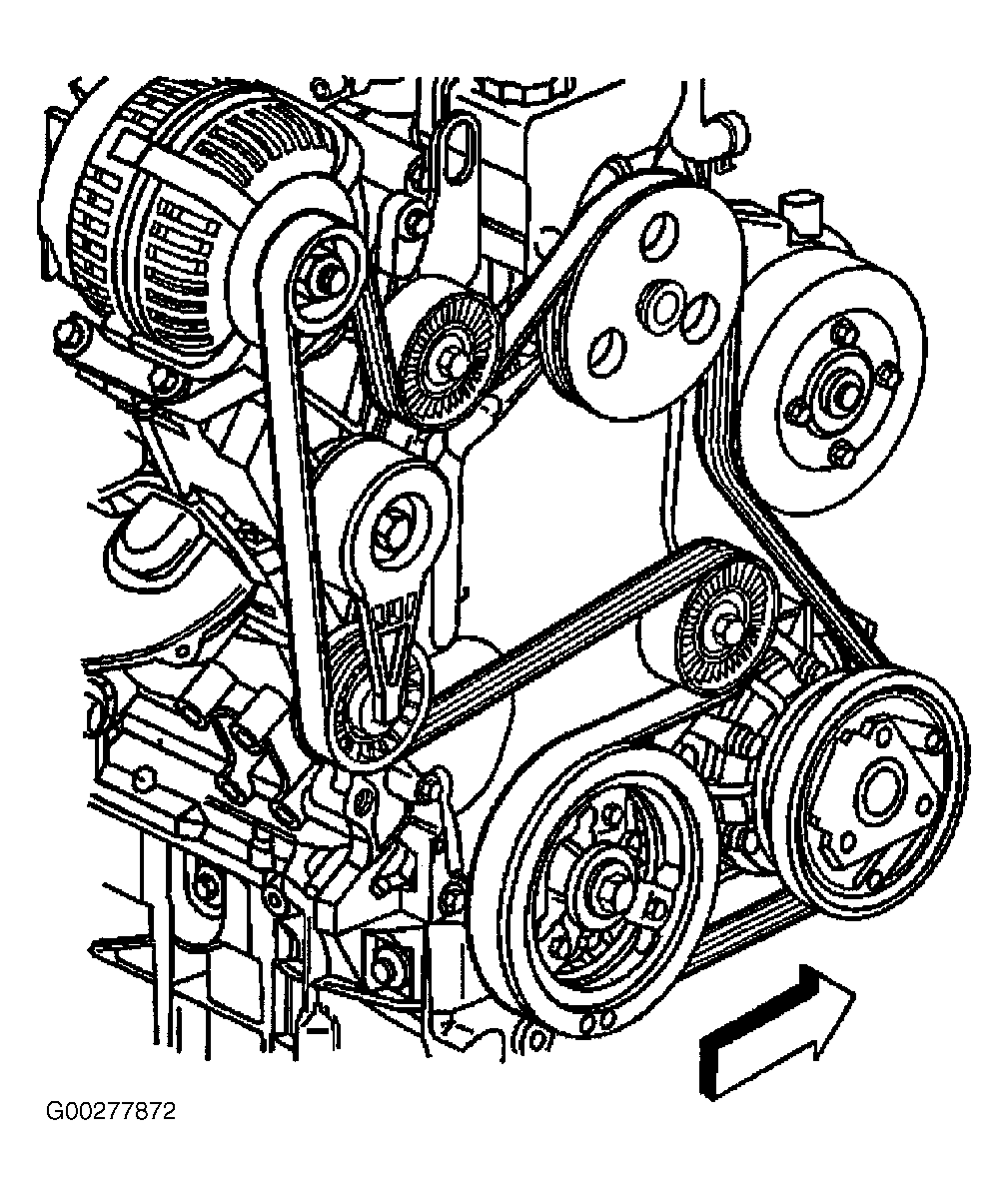

Fig 1: Drive Belt Routing (Aztek & Rendezvous - 3.4L)

G00277872

Courtesy of GENERAL MOTORS CORP.

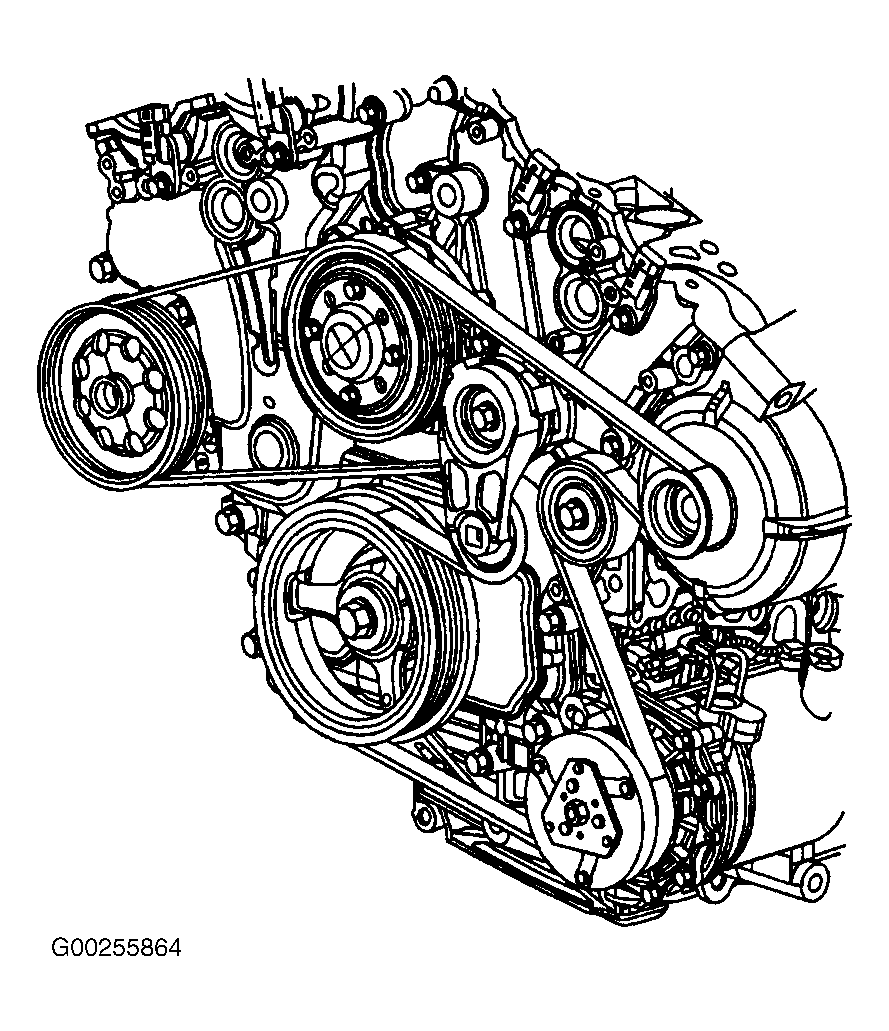

Fig 2: Drive Belt Routing (Rendezvous - 3.6L)

G00255864

Courtesy of GENERAL MOTORS CORP.
