Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

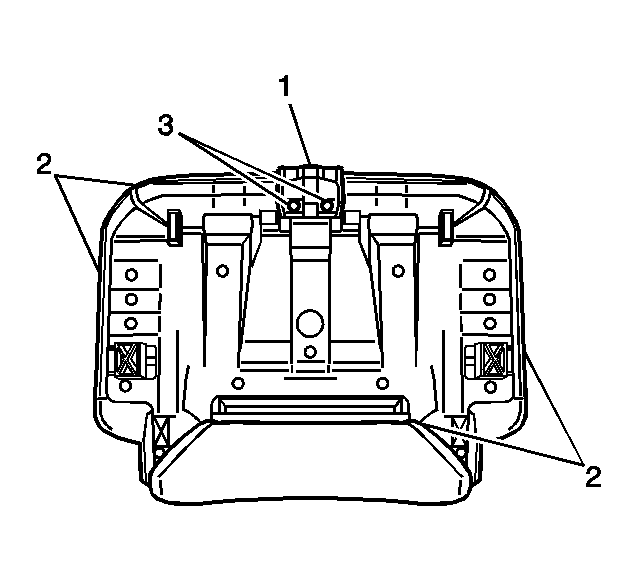

    Fig 1: Removing/Installing Pull Handle
    GM824148Courtesy of GENERAL MOTORS CORP.
  1. Position the seat pull handle (1) on the seat panel.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the two screws (3) to the seat pull handle (1).

    Tighten:  Tighten the rear seat pull handle screws to 4 N.m (36 lb in).
