Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

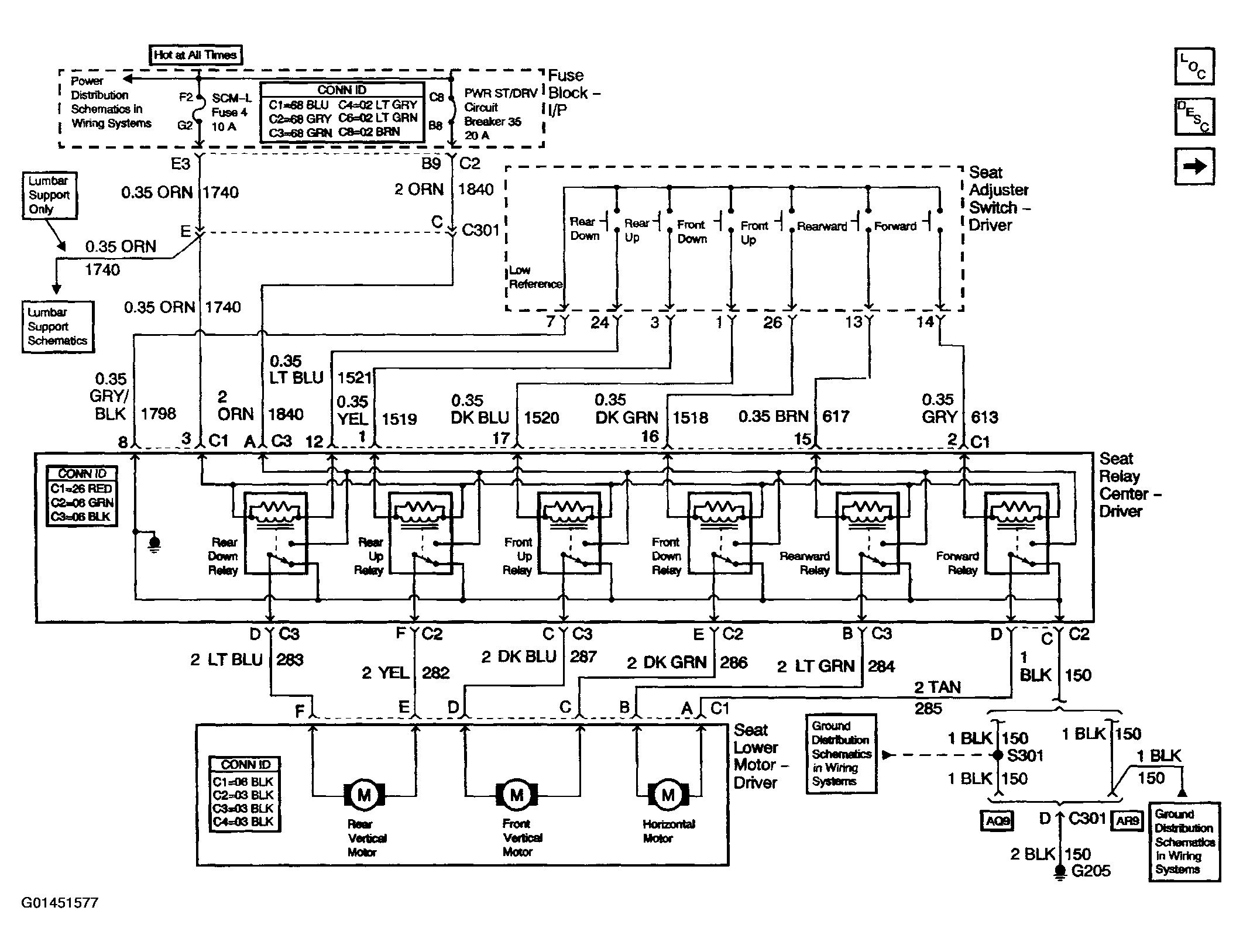

Fig 1: Power Seats Schematics (Power, Ground & Seat Controls - Driver)

Courtesy of GENERAL MOTORS CORP.

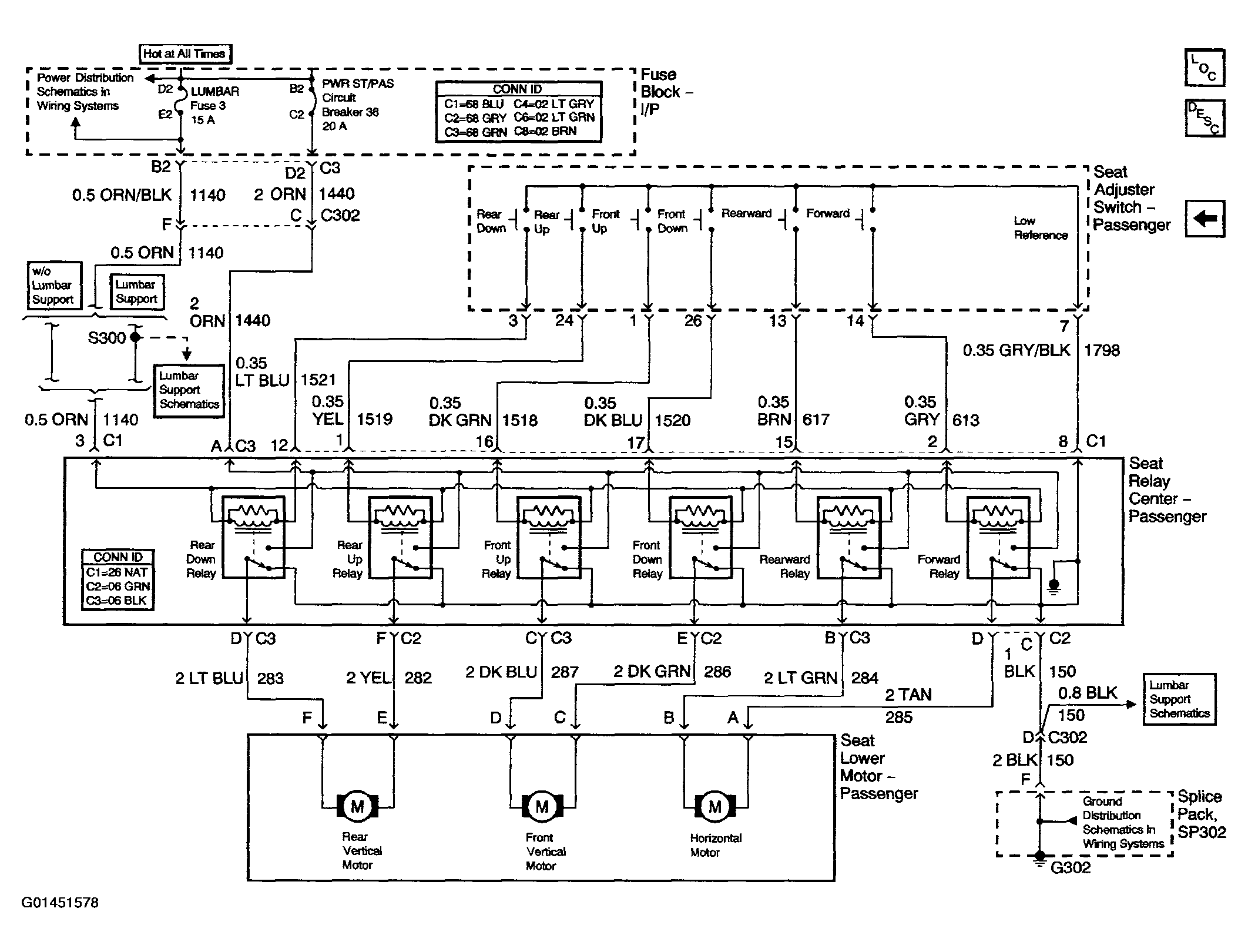

Fig 2: Power Seats Schematics (Power, Ground & Seat Controls - Passenger)

Courtesy of GENERAL MOTORS CORP.

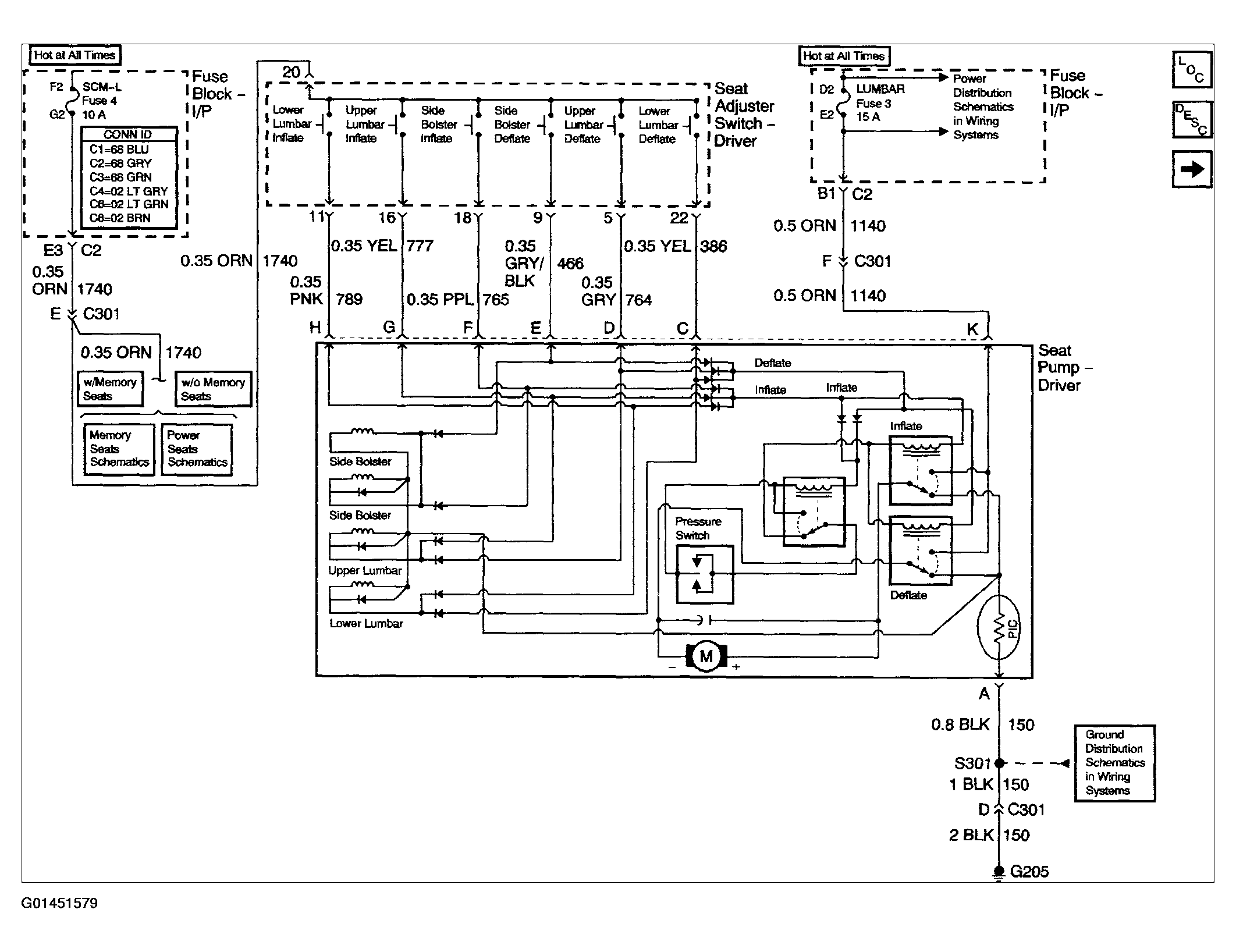

Fig 3: Lumbar Support Schematics (Power, Ground & Seat Pump - Driver)

Courtesy of GENERAL MOTORS CORP.

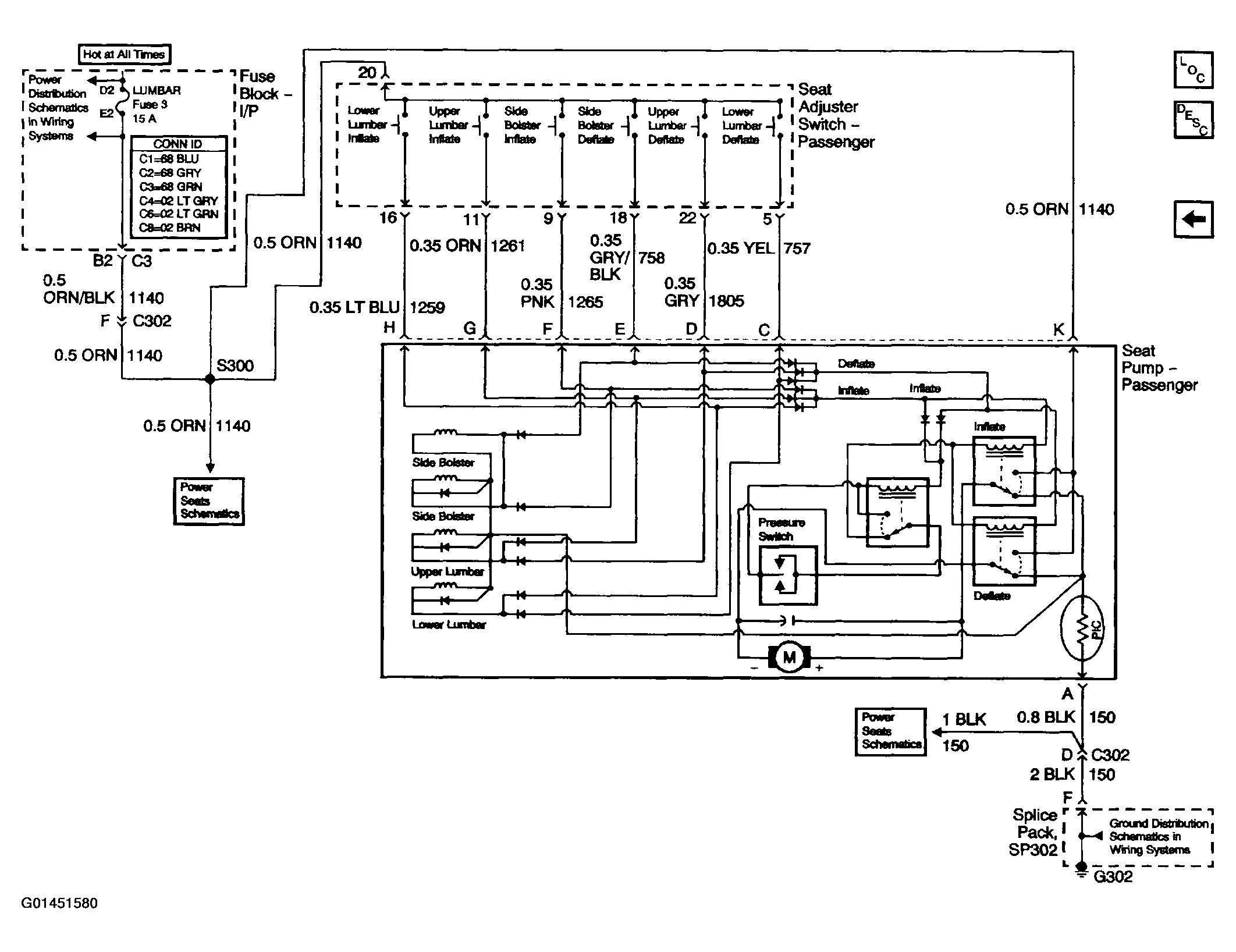

Fig 4: Lumbar Support Schematics (Power, Ground & Seat Pump - Passenger)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Memory Seats Schematics (Power, Ground, DLC & Seat Adjuster Switch - Driver)

Courtesy of GENERAL MOTORS CORP.

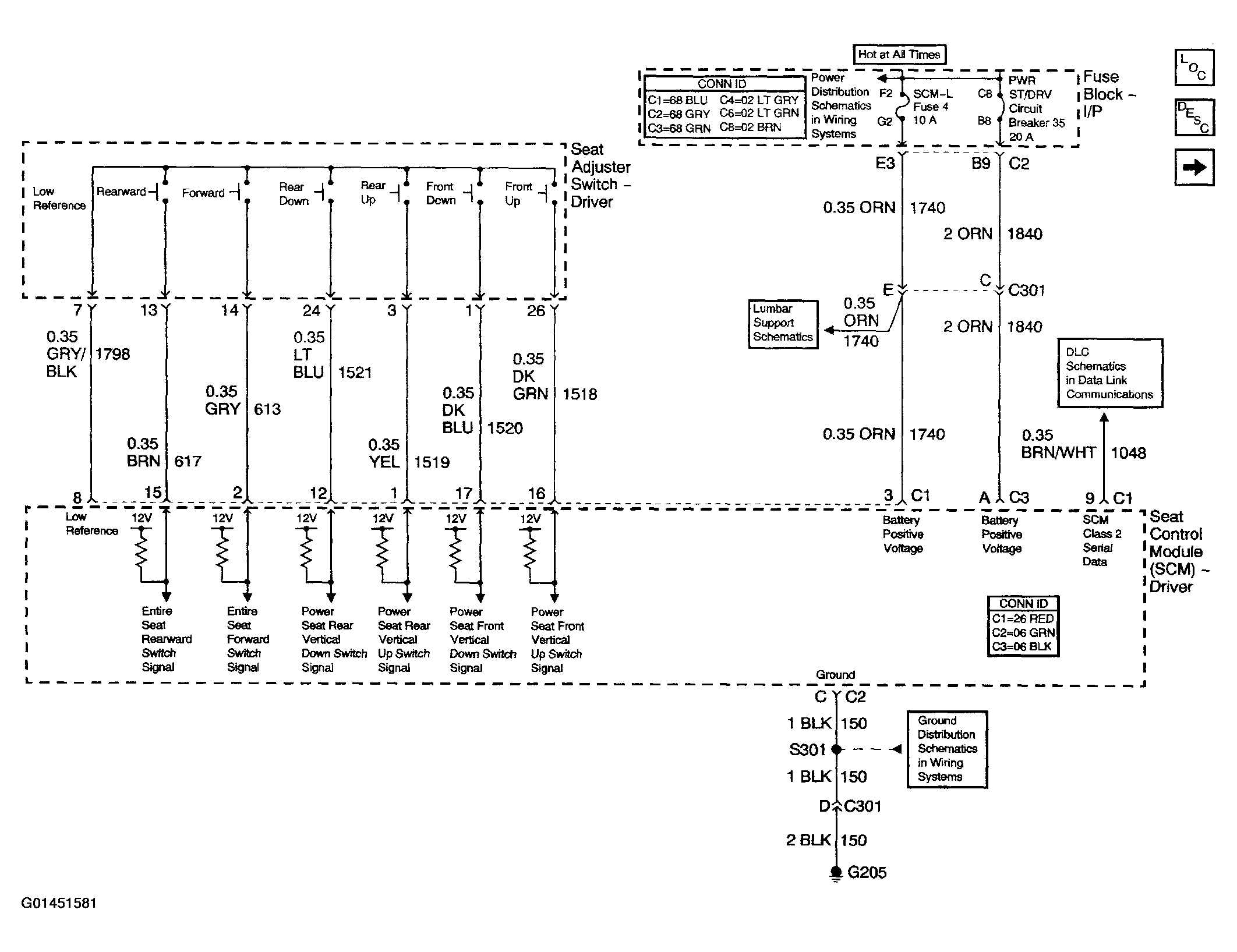

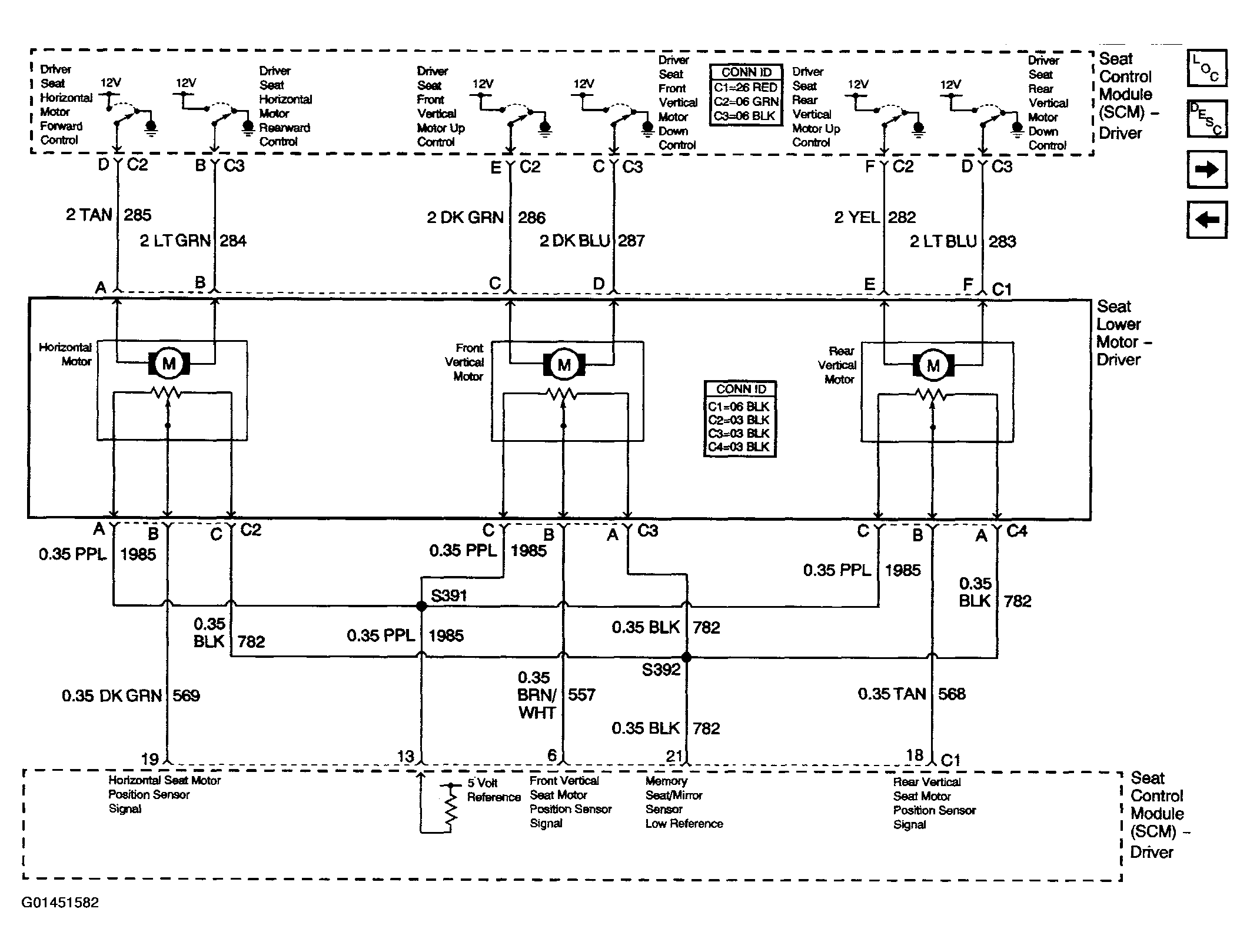

Fig 6: Memory Seats Schematics (Seat Control Module - Driver W/O Telescoping Steering Column)

Courtesy of GENERAL MOTORS CORP.

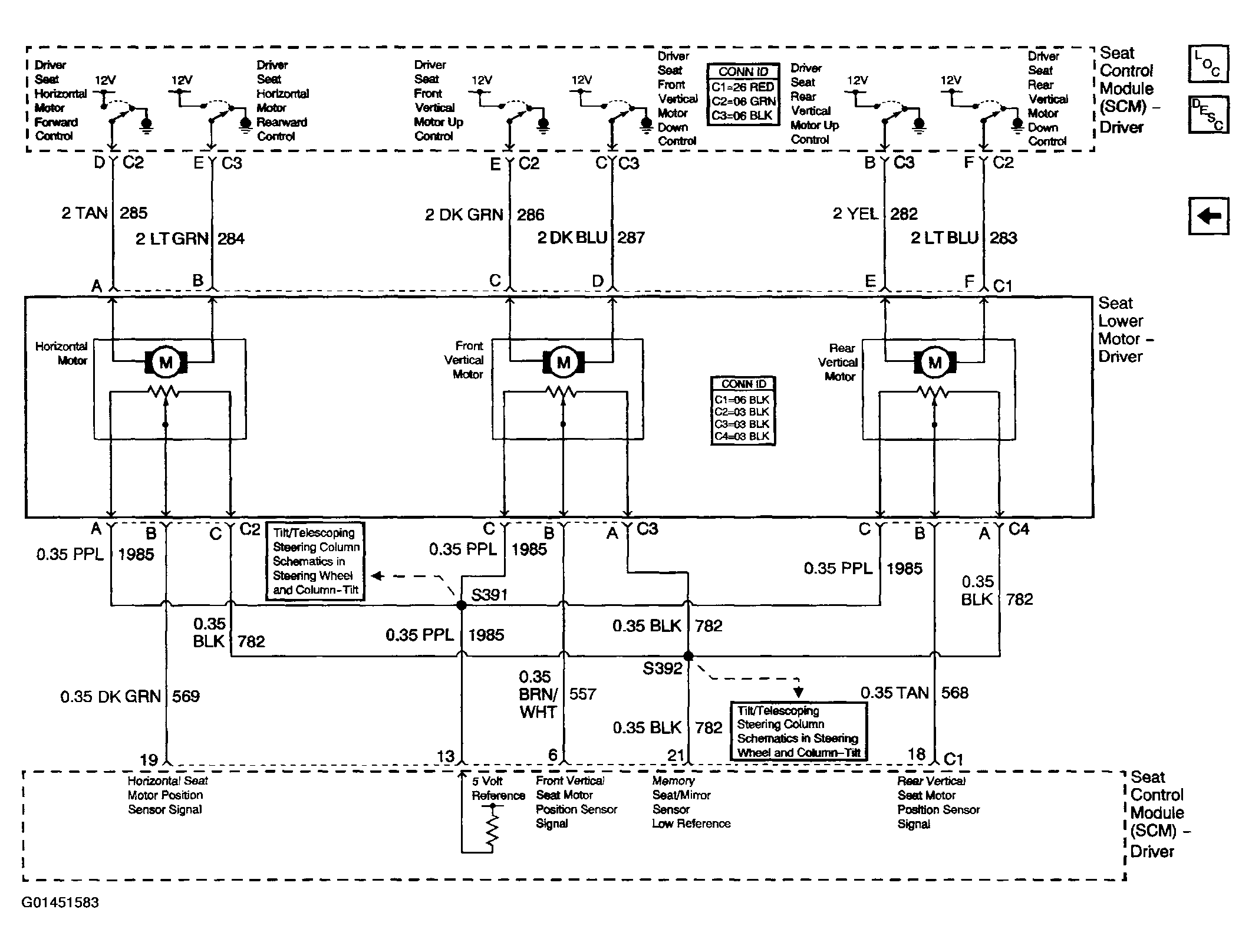

Fig 7: Memory Seats Schematics (Seat Control - Driver Module W/Telescoping Steering Column)

Courtesy of GENERAL MOTORS CORP.
