WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

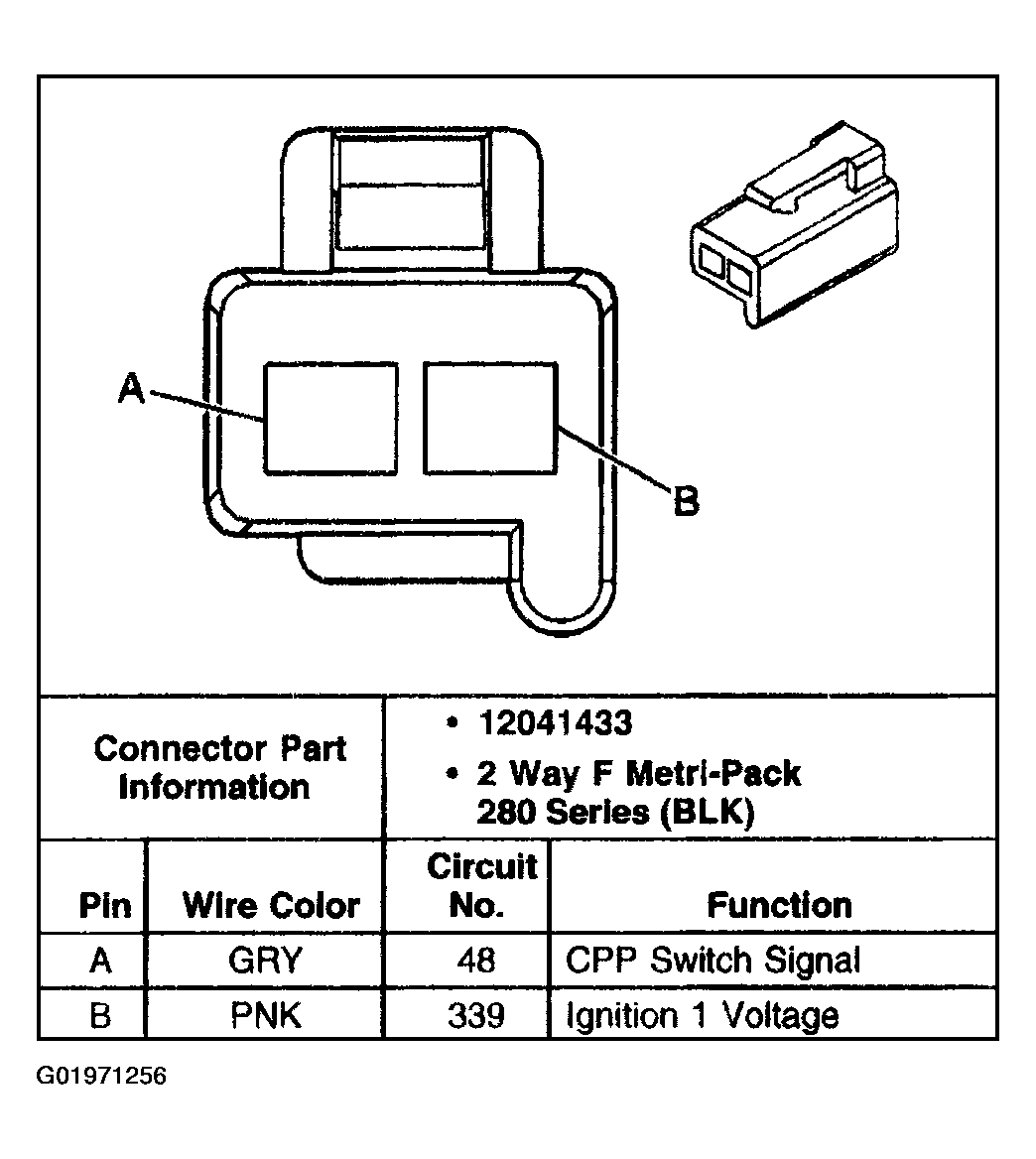

Fig 1: Clutch Pedal Position (CPP) Switch
Courtesy of GENERAL MOTORS CORP.

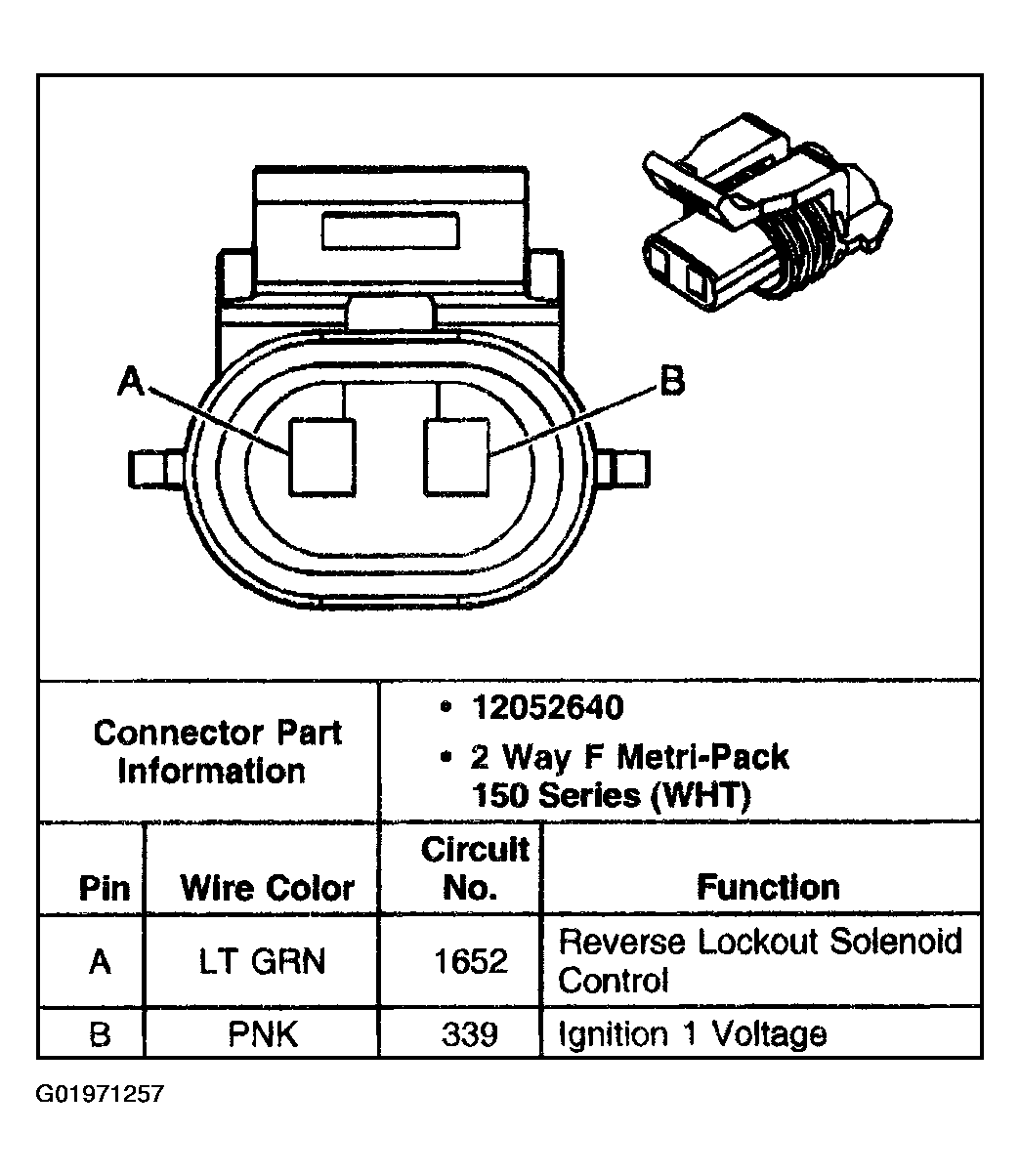

Fig 2: Reverse Inhibit Solenoid
Courtesy of GENERAL MOTORS CORP.

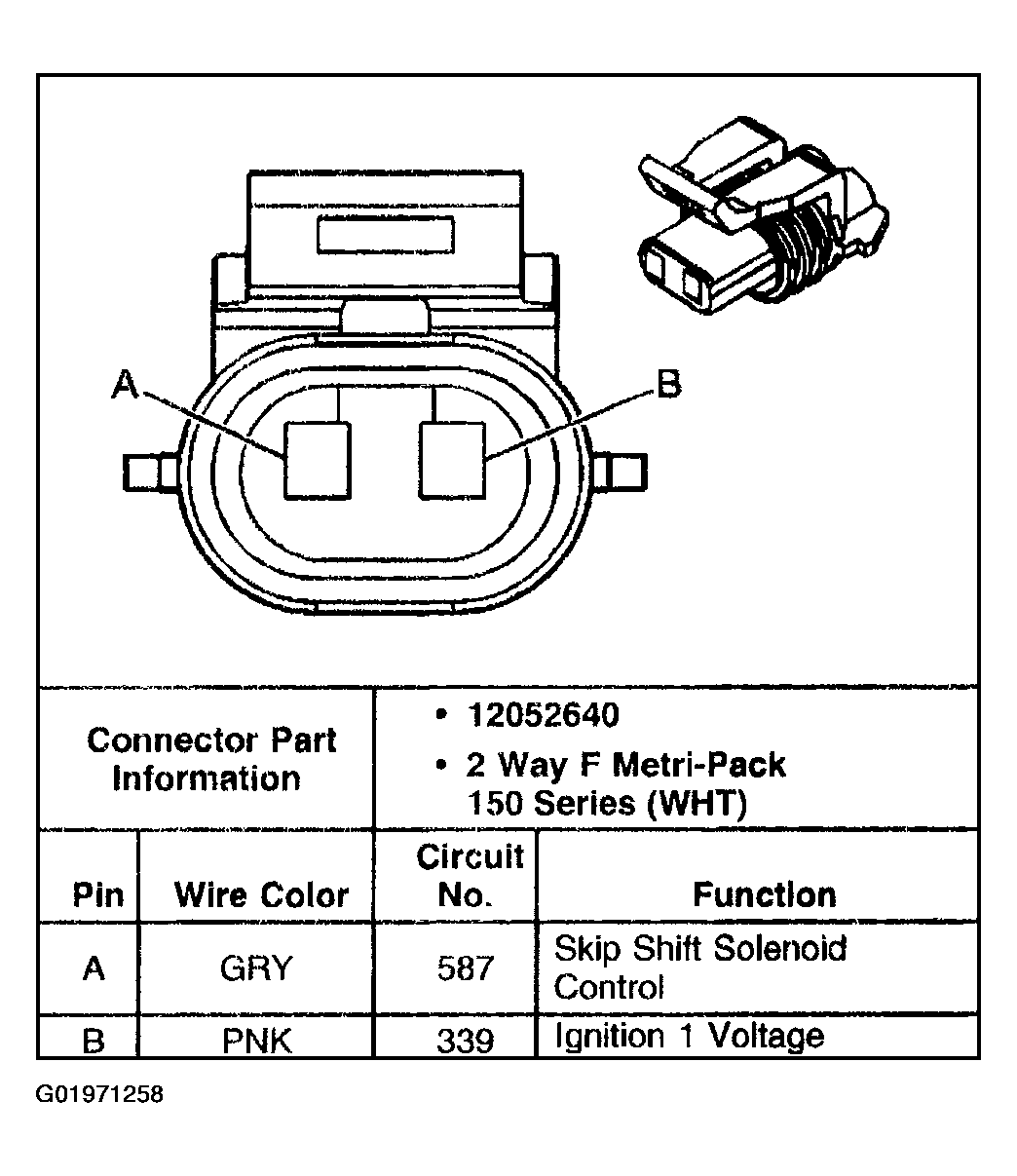

Fig 3: Skip Shift Solenoid
Courtesy of GENERAL MOTORS CORP.

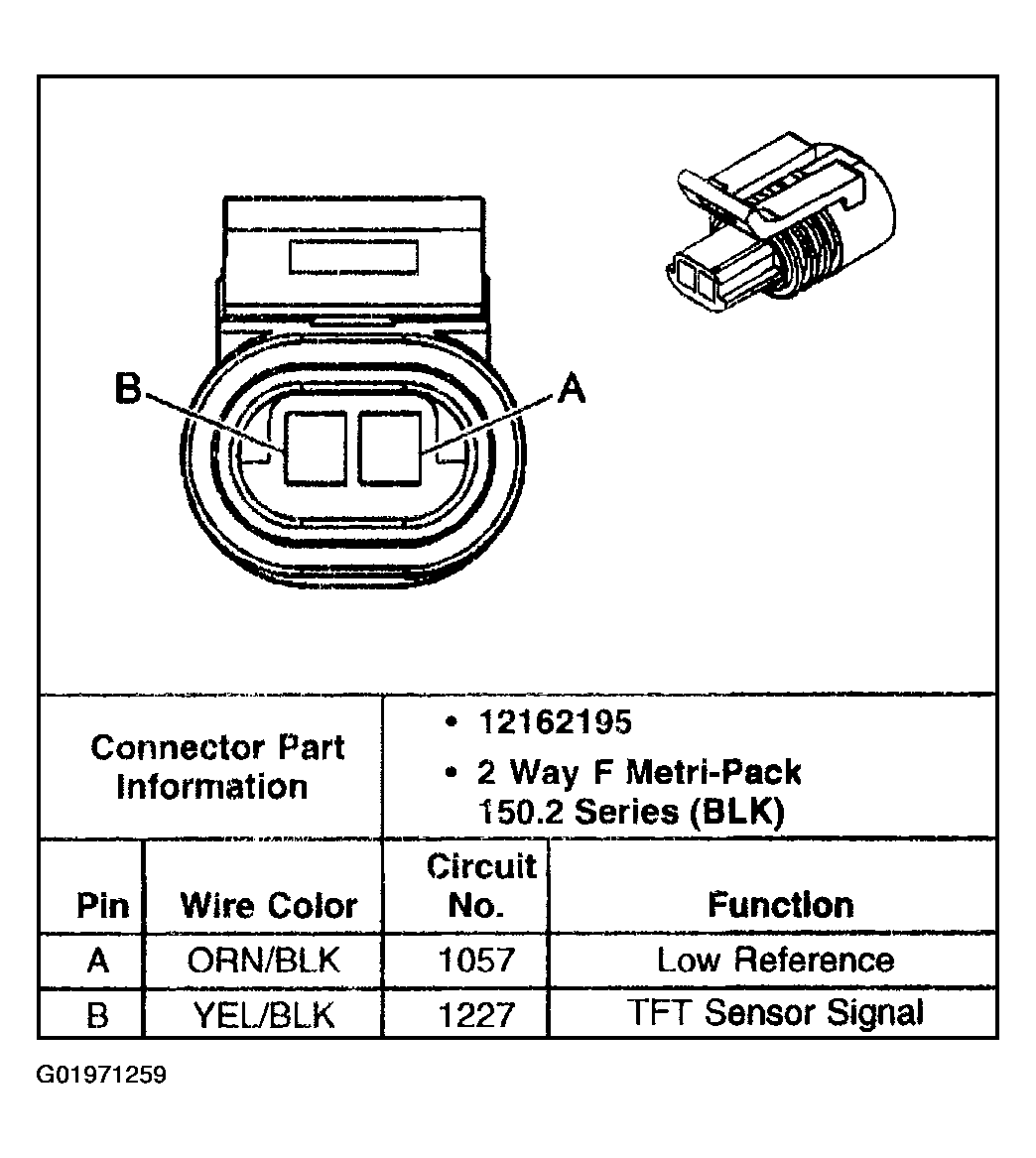

Fig 4: Transmission Fluid Temperature (TFT) Sensor
