Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission shift rod to the transmission shift shaft.
  2. Using a drift or punch, install the roll pin (1) to retain the transmission shift rod to the shift shaft.
  3. Pull the transmission shift rod away from the transmission to the middle detent position (NEUTRAL).
  4. Install the transmission to the driveline support assembly, then install the driveline support assembly, transmission and differential to the vehicle. Refer to TRANSMISSION REPLACEMENT .
  5. Install the shift control assembly. Refer to SHIFT CONTROL ASSEMBLY REPLACEMENT .

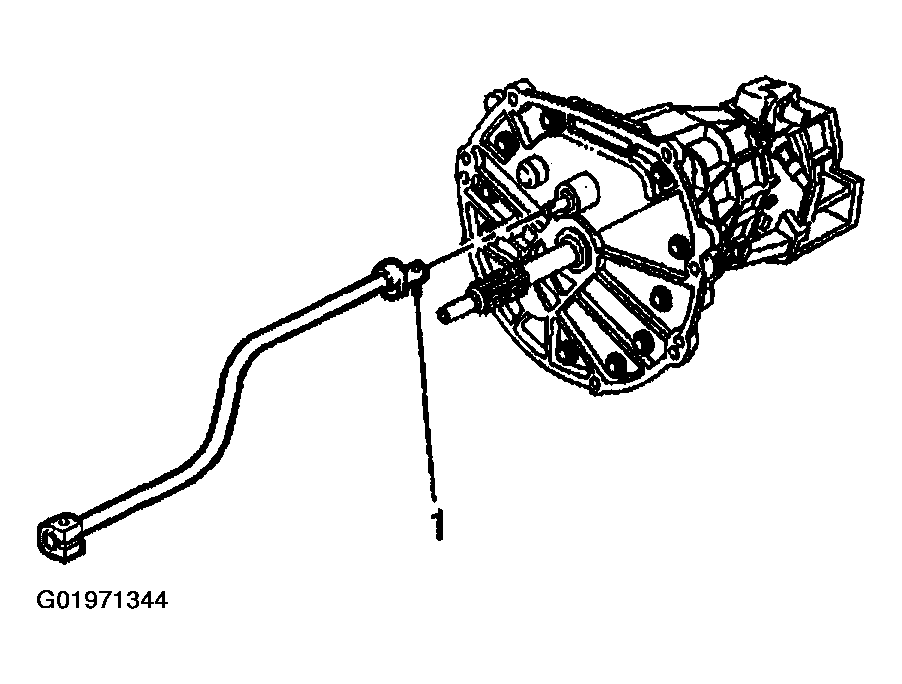

    Fig 1: Installing Transmission Shift Rod To Transmission Shift Shaft
    G01971344Courtesy of GENERAL MOTORS CORP.
