Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw the shift control knob onto the shift control lever until the knob bottoms out.
    Fig 1: Screwing Shift Control Knob Onto Shift Control Lever
    G01971341Courtesy of GENERAL MOTORS CORP.
  2. Unscrew the shift control knob just enough to align the retainer slot with the slot on the shift control lever.
  3. Install the shift control knob retainer (1) into the slots and seat fully.
  4. Install the shift control knob button.

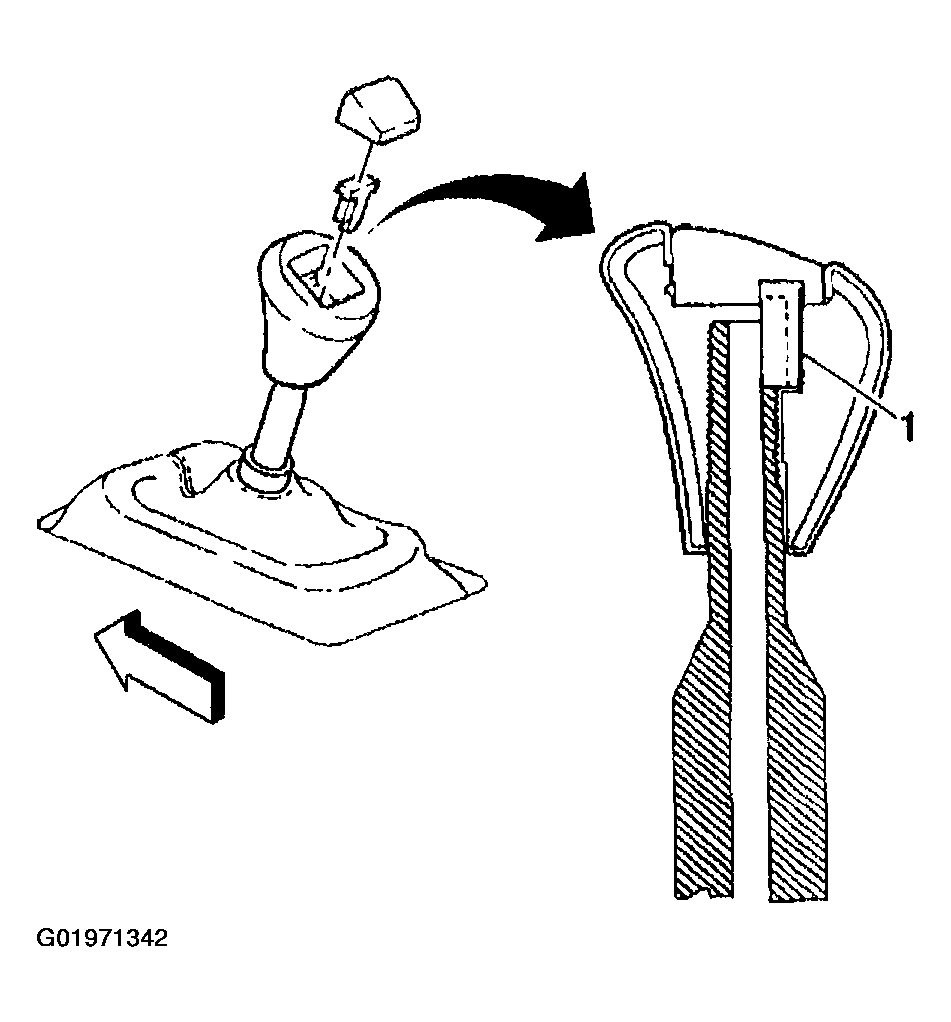

    Fig 2: Shift Control Knob Retainer & Button
    G01971342Courtesy of GENERAL MOTORS CORP.
