Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift control boot over the shift control lever.

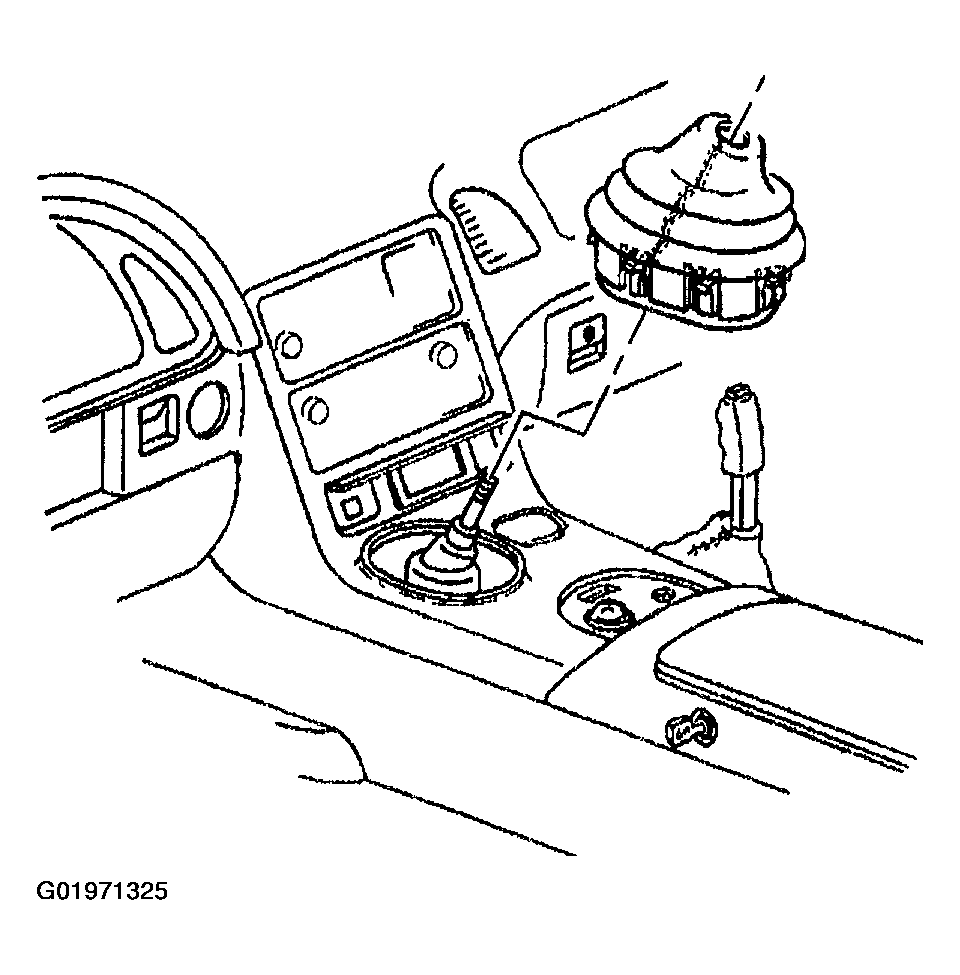

    Fig 1: Installing Shift Control Boot Over Shift Control Lever
    G01971325Courtesy of GENERAL MOTORS CORP.
  2. Align the shift control boot to the I/P accessory trim plate opening, then press to lock the boot retaining tabs.
  3. Adjust the shape of the boot for appearance, if necessary.

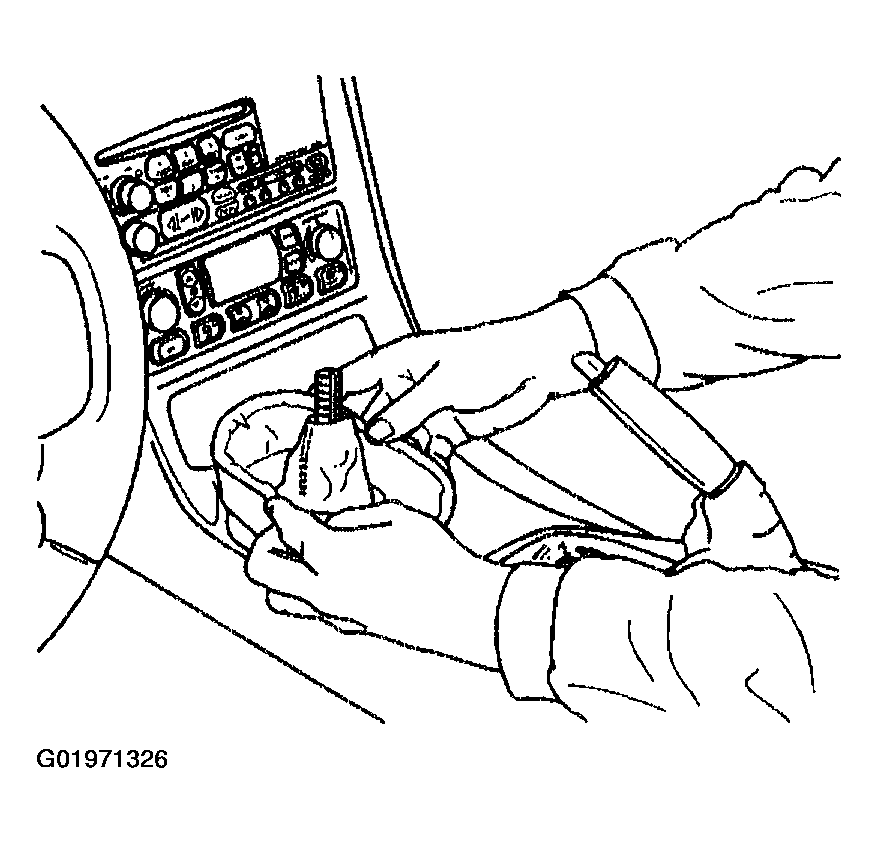

    Fig 2: Adjusting Shape Of Boot For Appearance
    G01971326Courtesy of GENERAL MOTORS CORP.
  4. Screw the shift control knob onto the shift control lever until the knob bottoms out.
    Fig 3: Screwing Shift Control Knob Onto Shift Control Lever
    G01971327Courtesy of GENERAL MOTORS CORP.
  5. Unscrew the shift control knob just enough to align the retainer slot with the slot on the shift control lever.
  6. Install the shift control knob retainer (1) into the slots and seat fully.
  7. Install the shift control knob button.

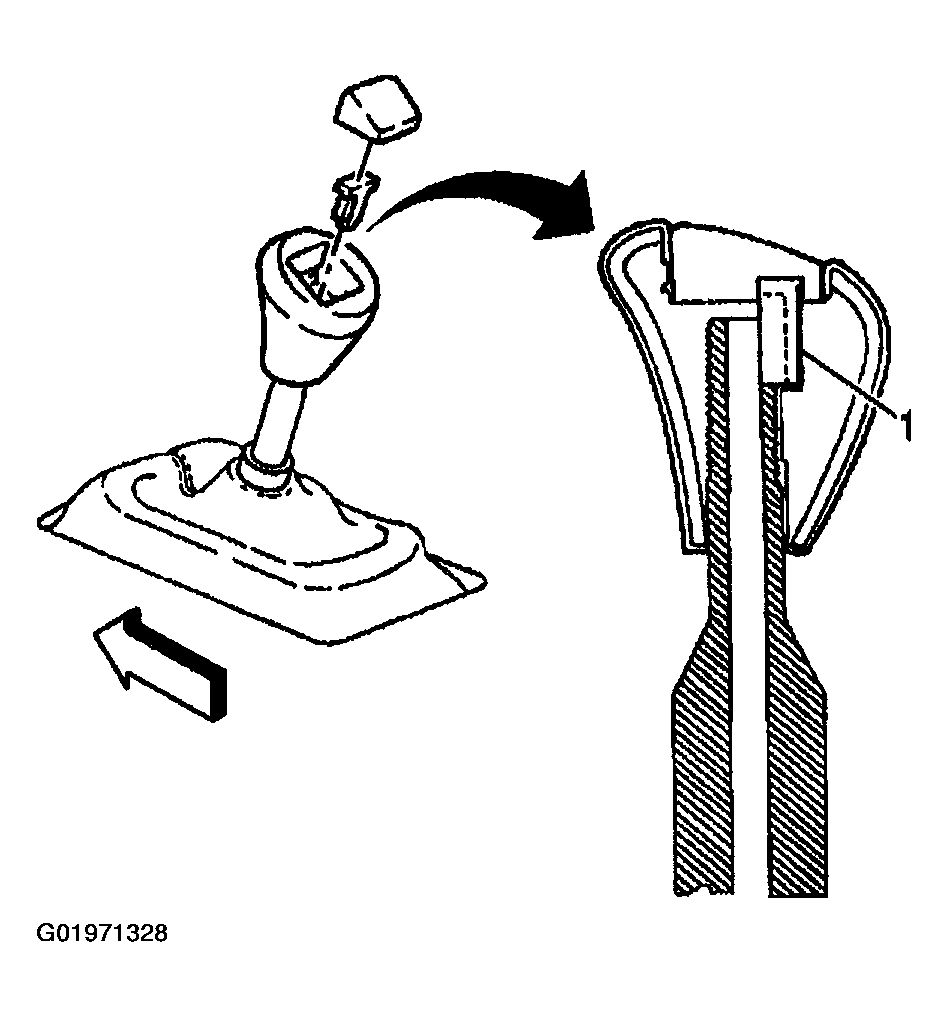

    Fig 4: Shift Control Knob Retainer & Button
    G01971328Courtesy of GENERAL MOTORS CORP.
