Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the backup lamp switch.
Tighten

Tighten the backup lamp switch to 20 N.m (15 lb ft).

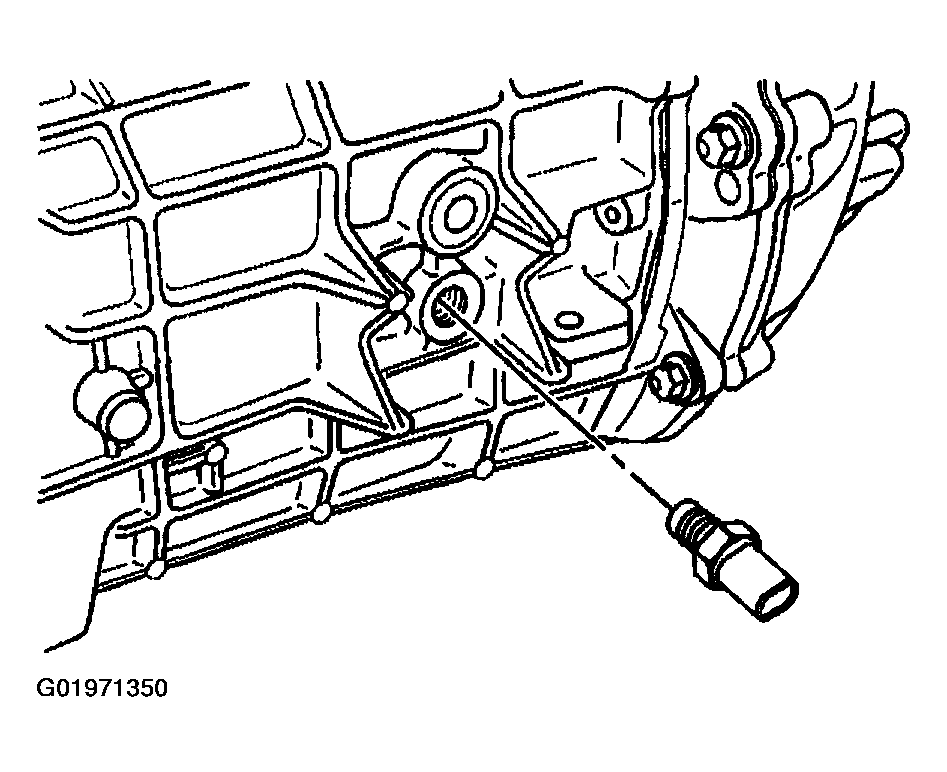

Fig 1: Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Connect the backup lamp switch electrical connector.
Install the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT in Engine Exhaust.
Lower the vehicle.

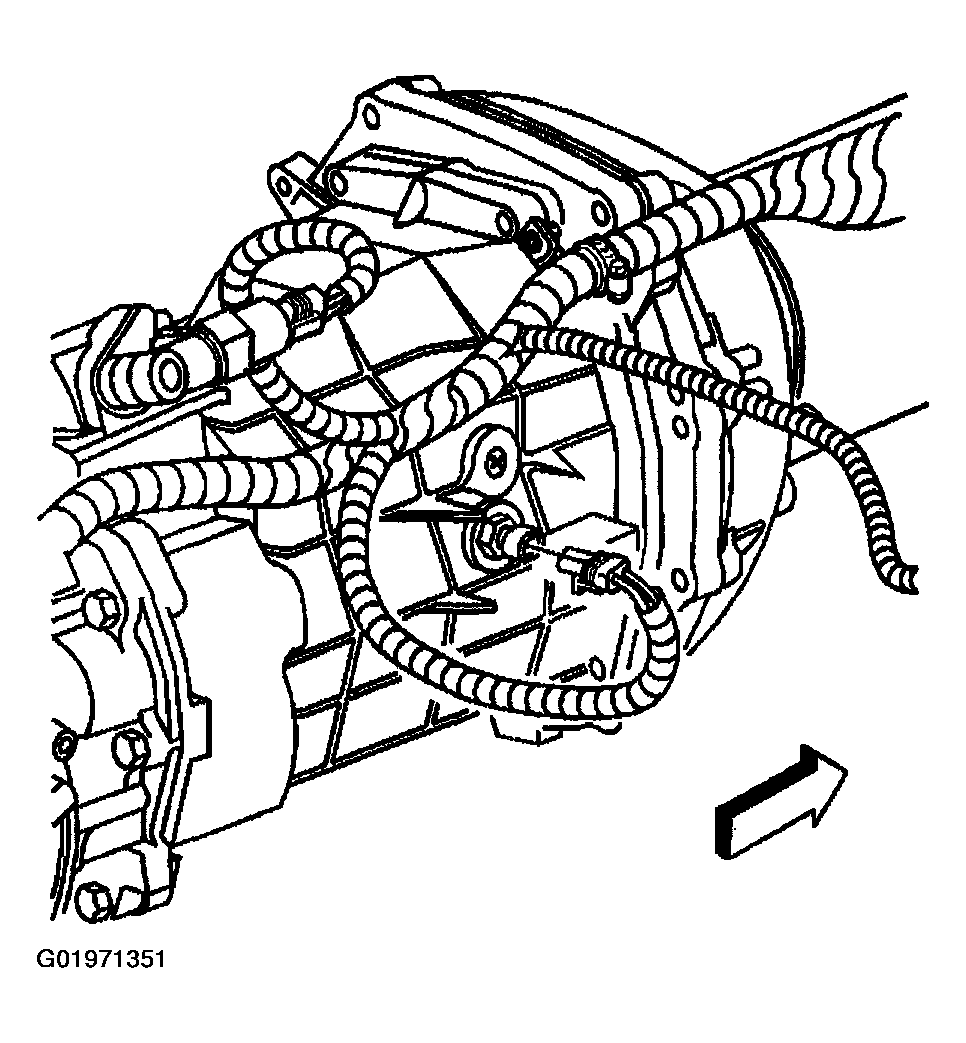

Fig 2: Connecting Backup Lamp Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
