Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.
  2. Remove the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages and Console.
  3. Carefully depress the sensor retaining tabs and remove the inside air temperature sensor from the driver knee bolster trim panel.

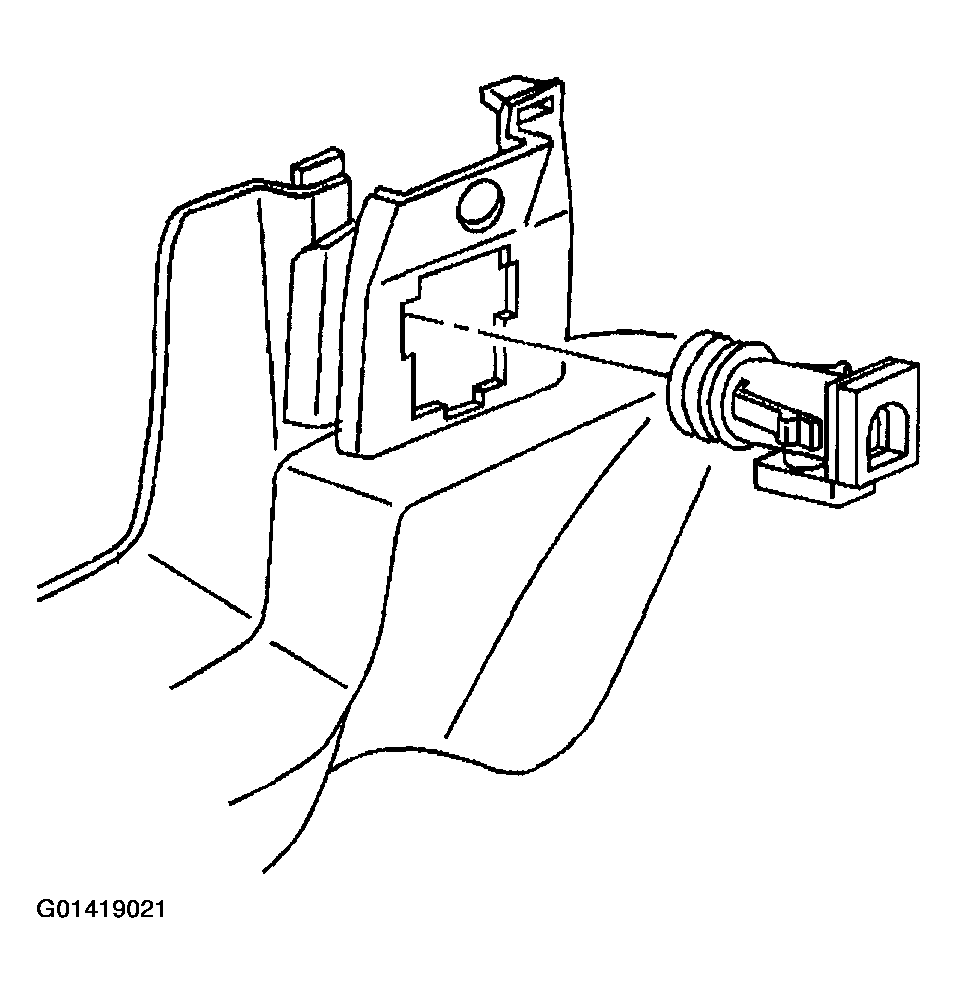

    Fig 1: Removing Inside Air Temperature Sensor From Driver Knee Bolster Trim Panel
    G01419021Courtesy of GENERAL MOTORS CORP.
