Vibration Analysis - Road Testing

WARNING: This page does not describe the selected car, but rather 58 other vehicles, including the 2003 Saturn Vue, 2003 Saturn L300, 2003 Saturn Ion 3, 2003 Saturn Ion 2, and 2003 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For Vibration Analysis - Road Testing, refer to illustrations. See Fig 1 -Fig 4 .

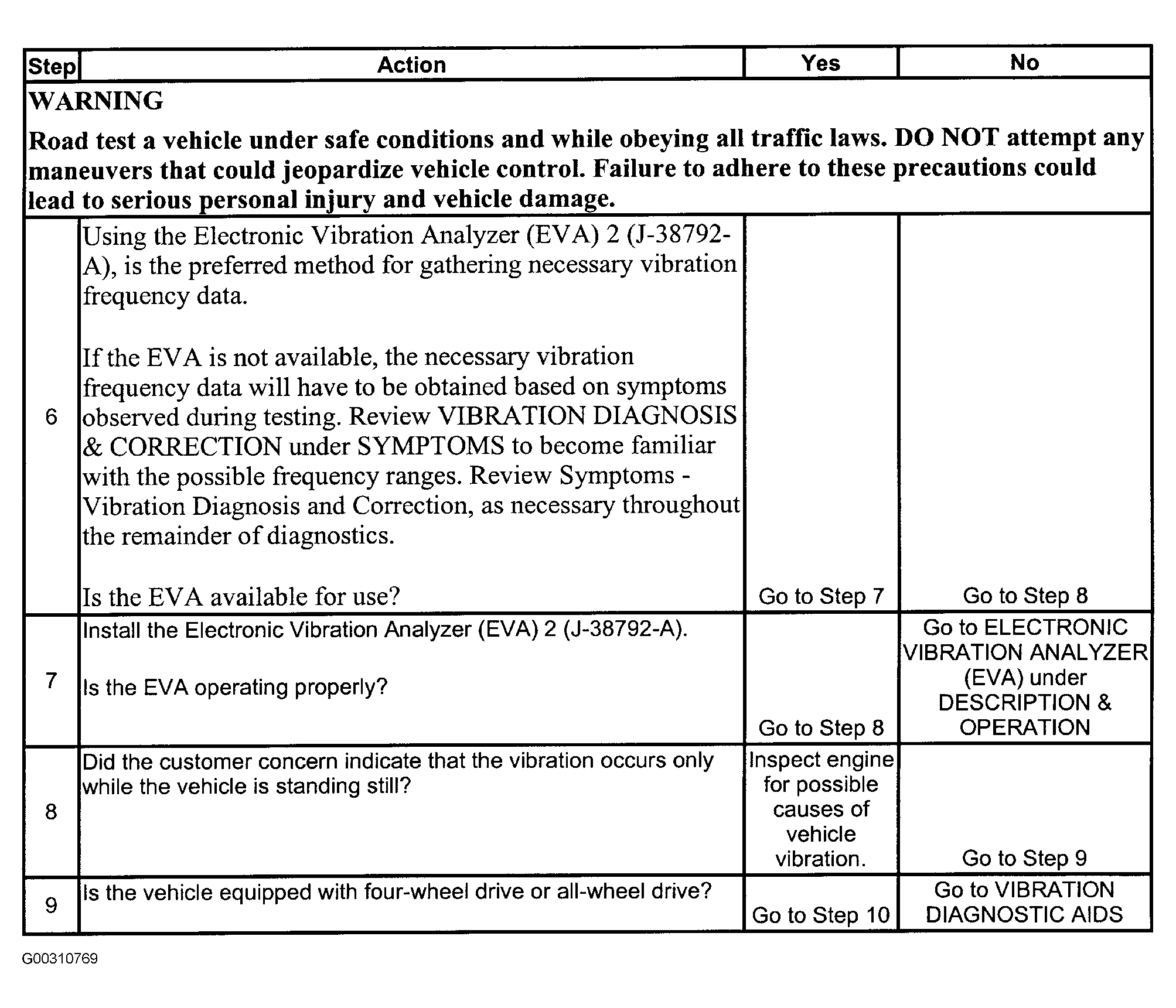

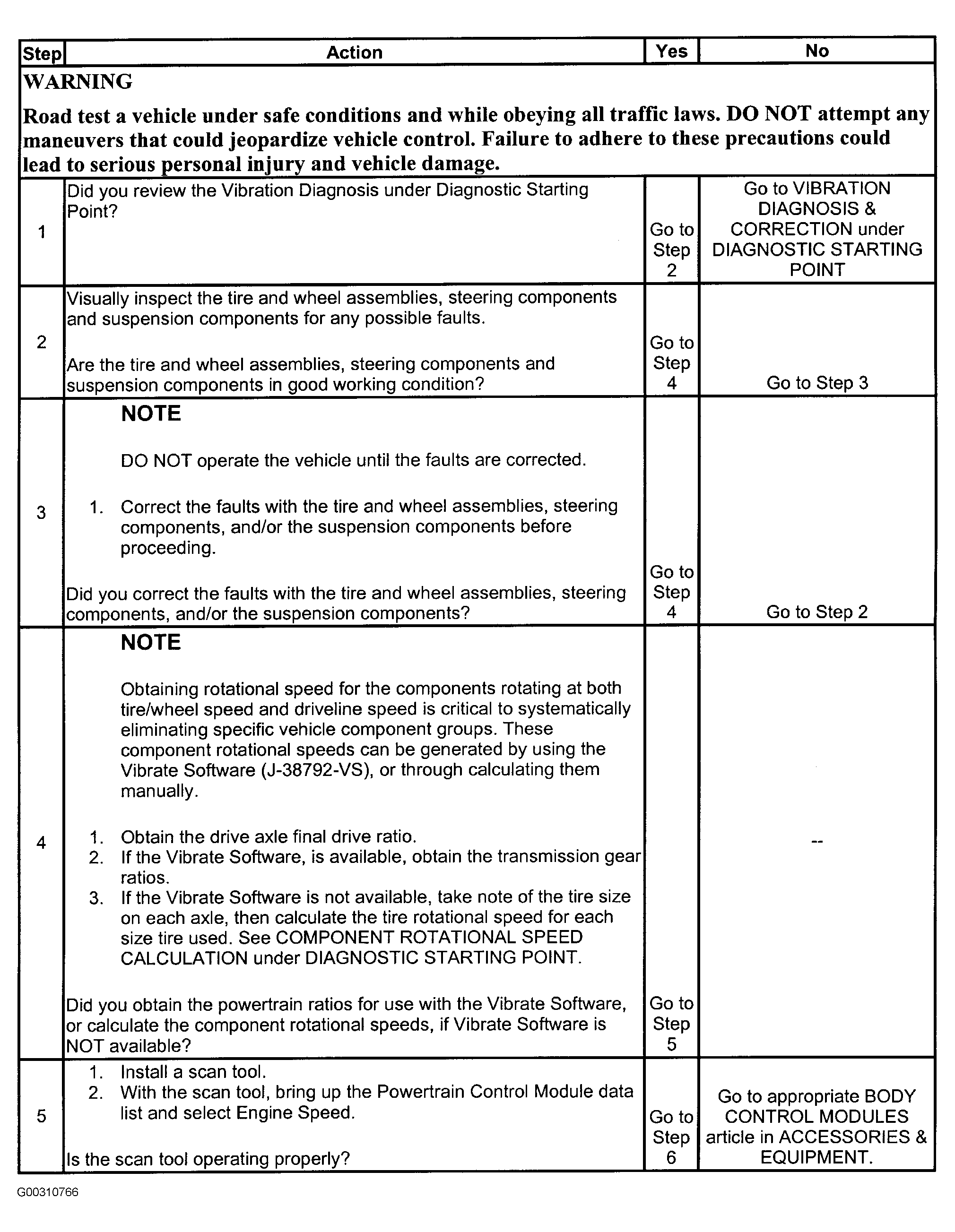

Fig 1: Vibration Analysis - Road Testing (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

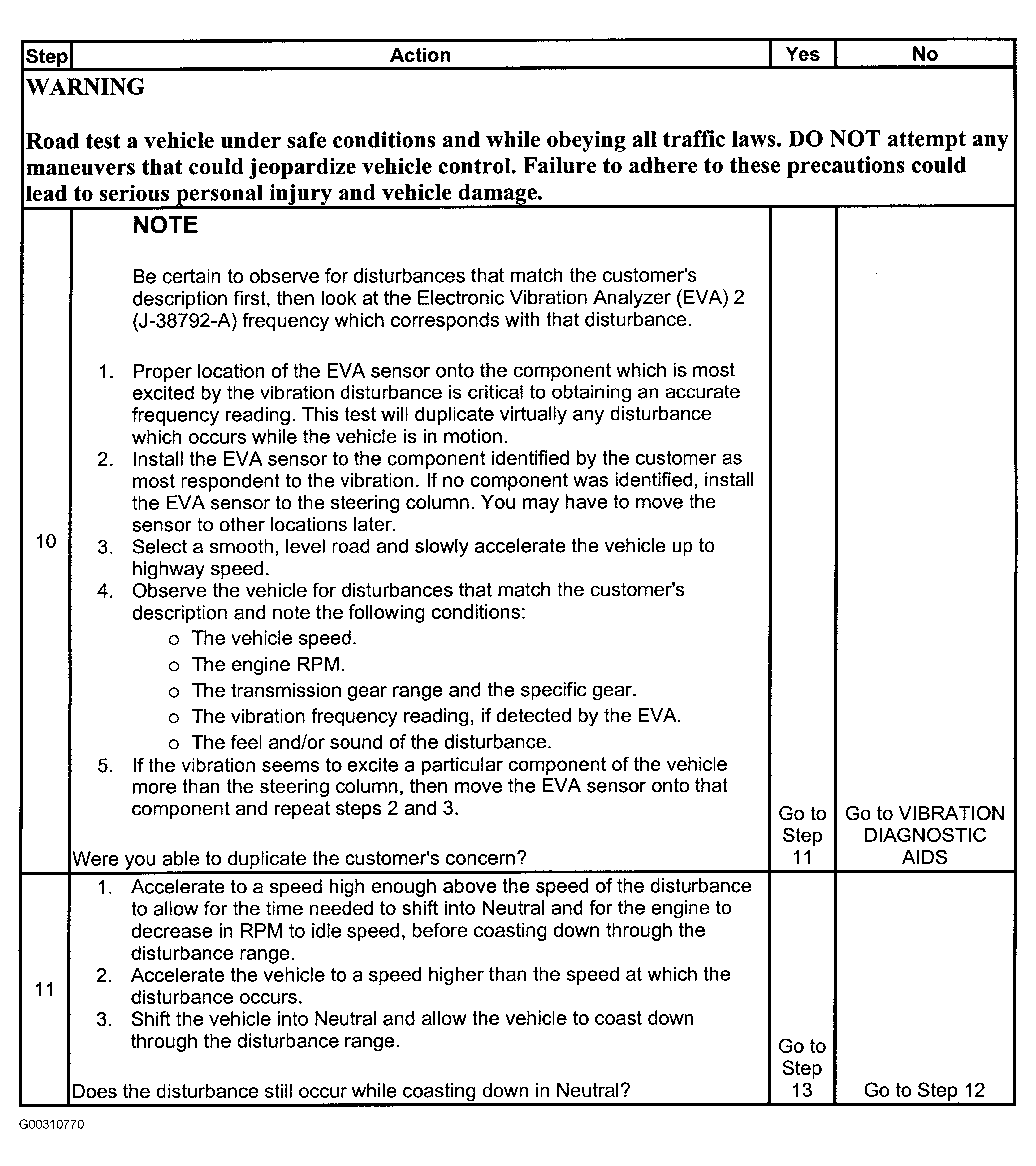

Fig 2: Vibration Analysis - Road Testing (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

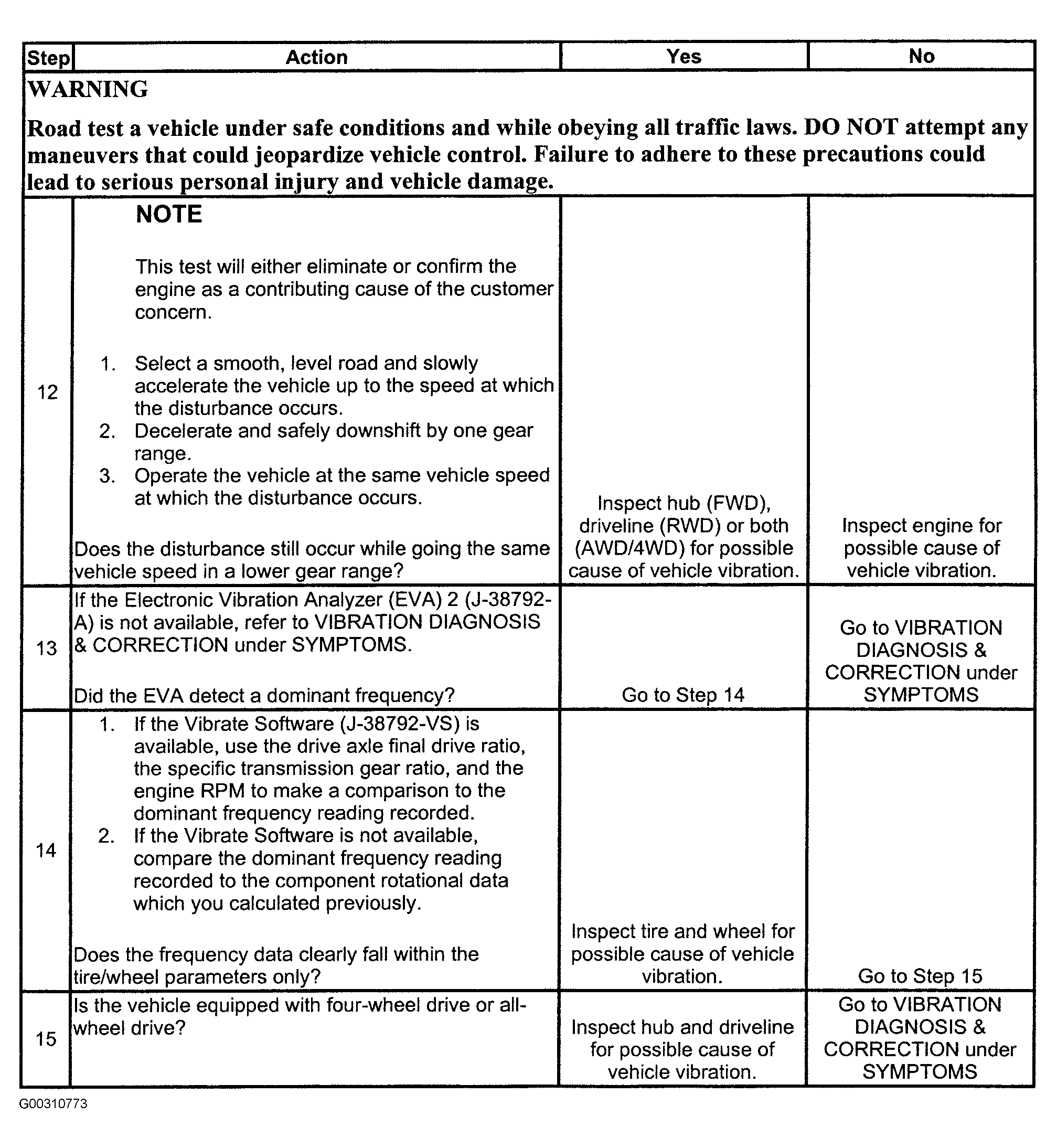

Fig 3: Vibration Analysis - Road Testing (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Vibration Analysis - Road Testing (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
