Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the front door speaker.

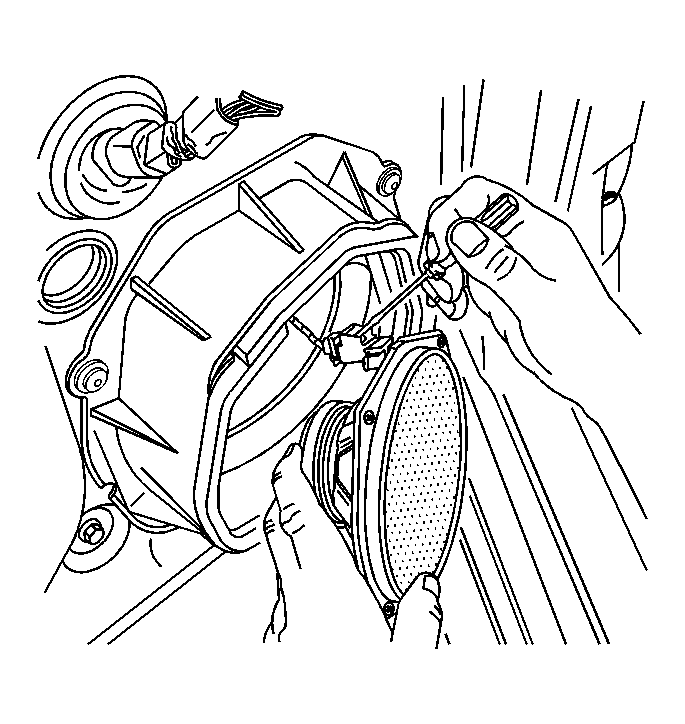

    2. Fig 1: View Of Front Door Speaker & Electrical Connector
    GM858800Courtesy of GENERAL MOTORS CORP.
  2. Position the speaker to the front door.
    3. NOTE: Refer to Fastener Notice .

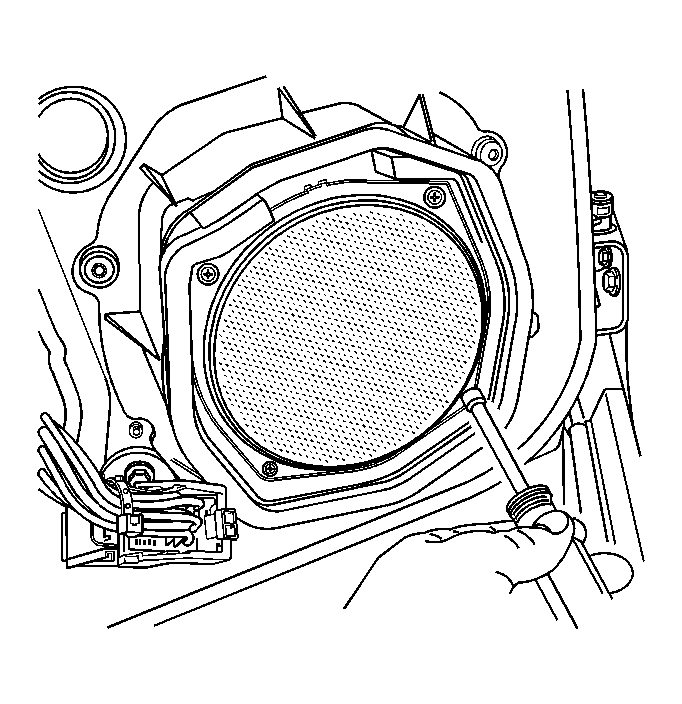

    Fig 2: View Of Front Door Speaker
    GM858799Courtesy of GENERAL MOTORS CORP.
  3. Install the screws to the front door speaker.

    Tighten:  Tighten the screws to 1.3 N.m (11.5 lb in).

  4. Install the inner trim panel. Refer to Trim Panel Replacement - Side Front Door in Doors.
