Interior Lights Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

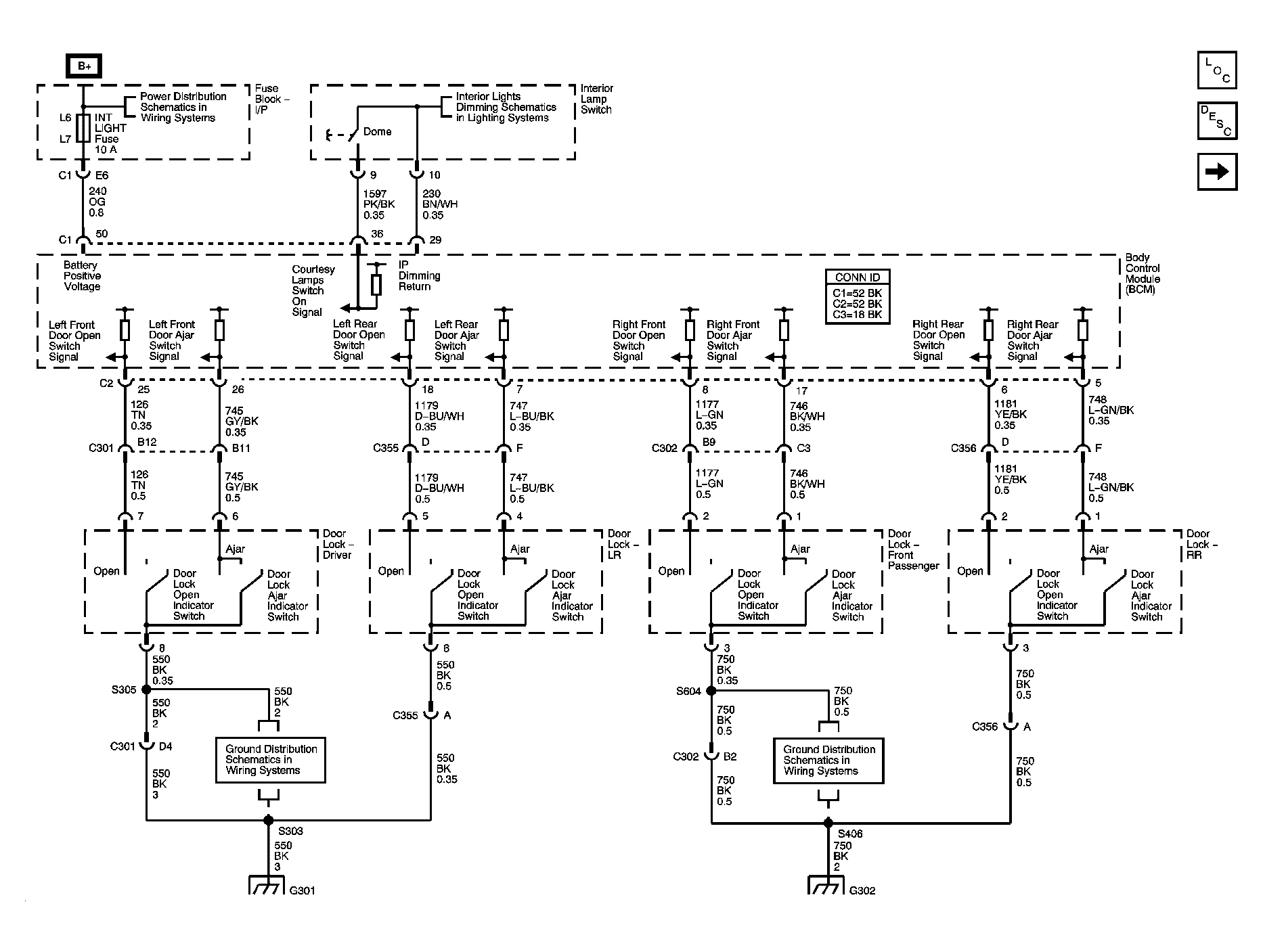

Fig 1: Switches
GM1221546Courtesy of GENERAL MOTORS CORP.

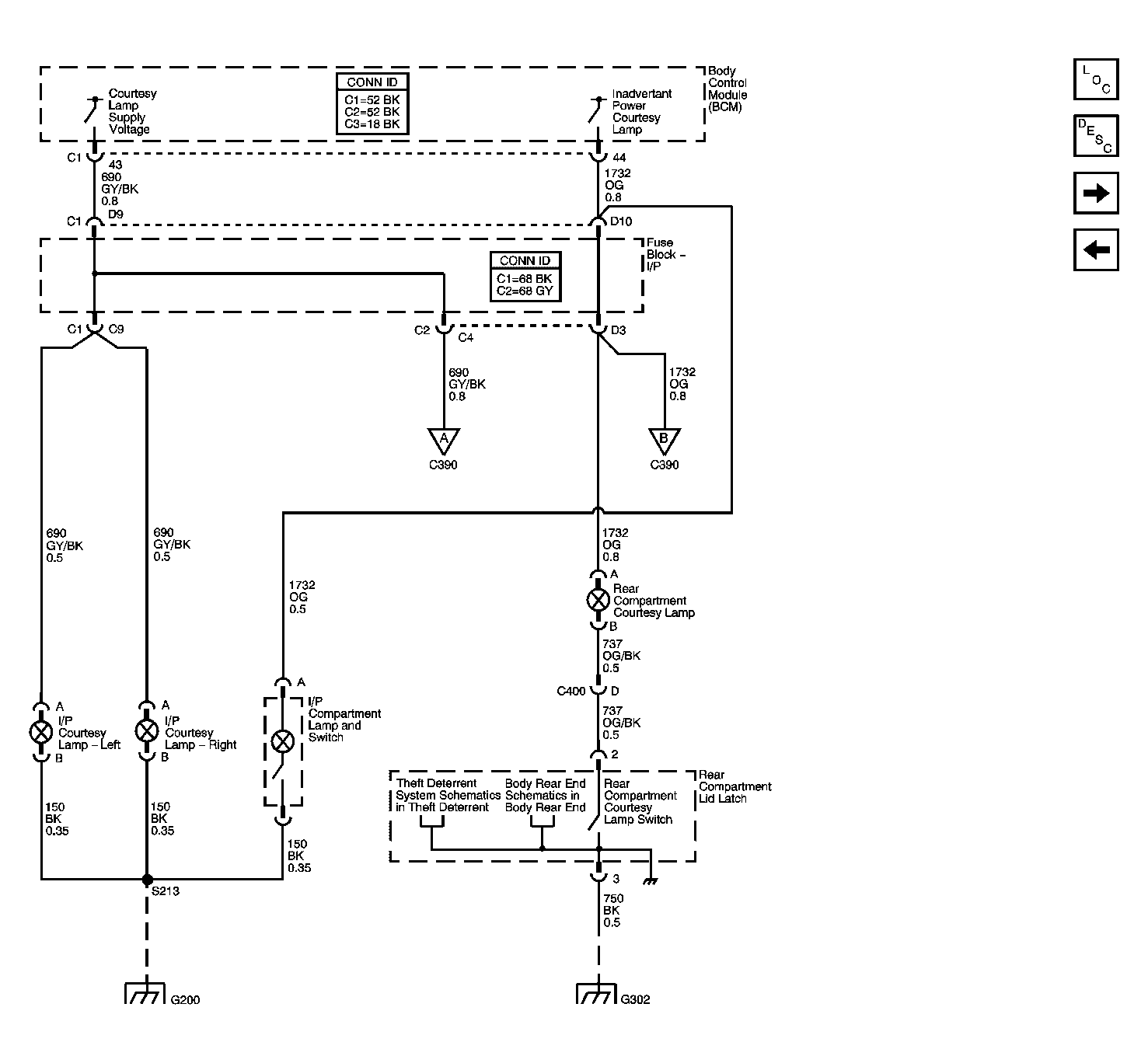

Fig 2: Courtesy Lamps
GM1221547Courtesy of GENERAL MOTORS CORP.

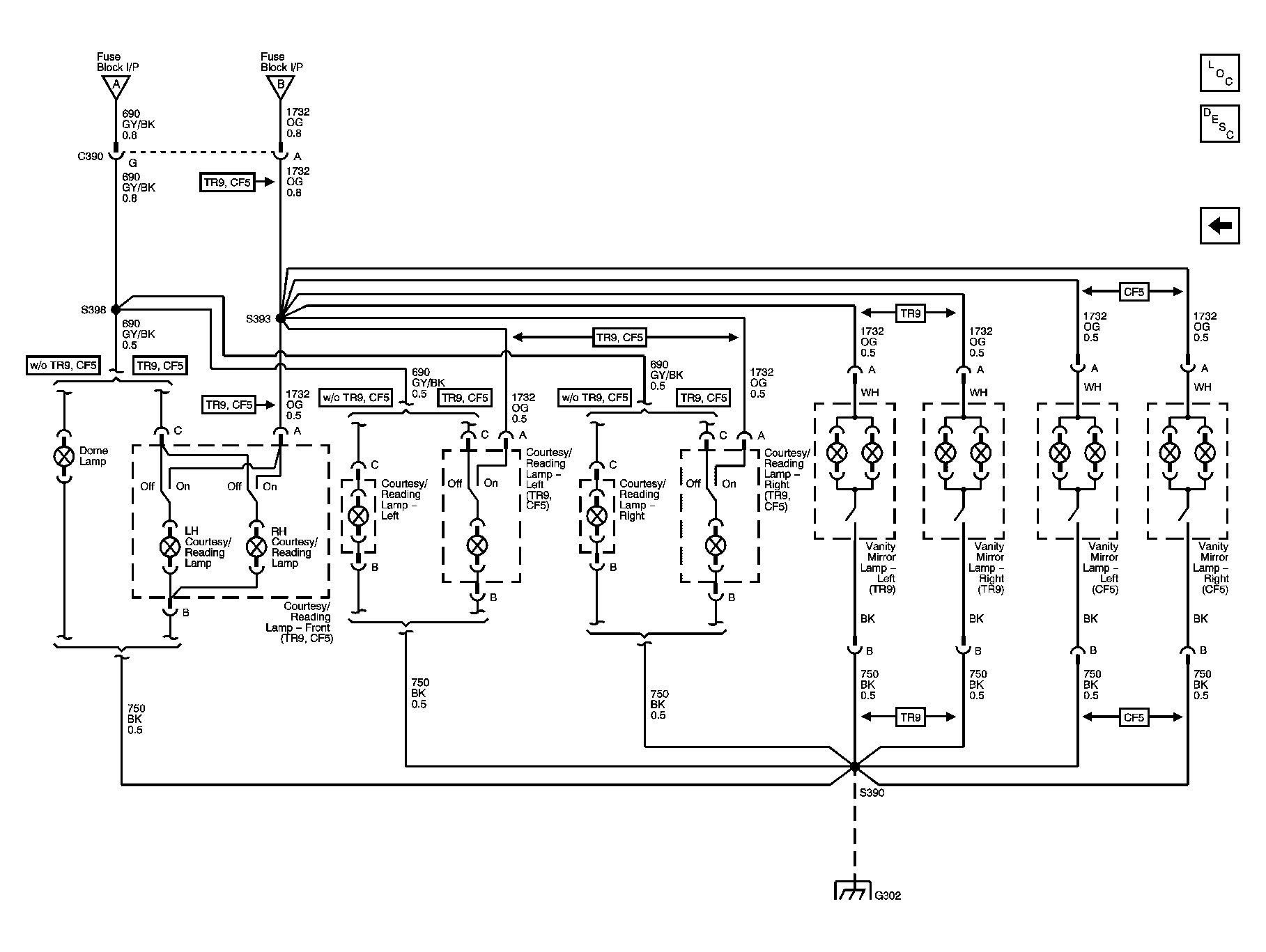

Fig 3: Overhead Lighting
GM1265653Courtesy of GENERAL MOTORS CORP.
